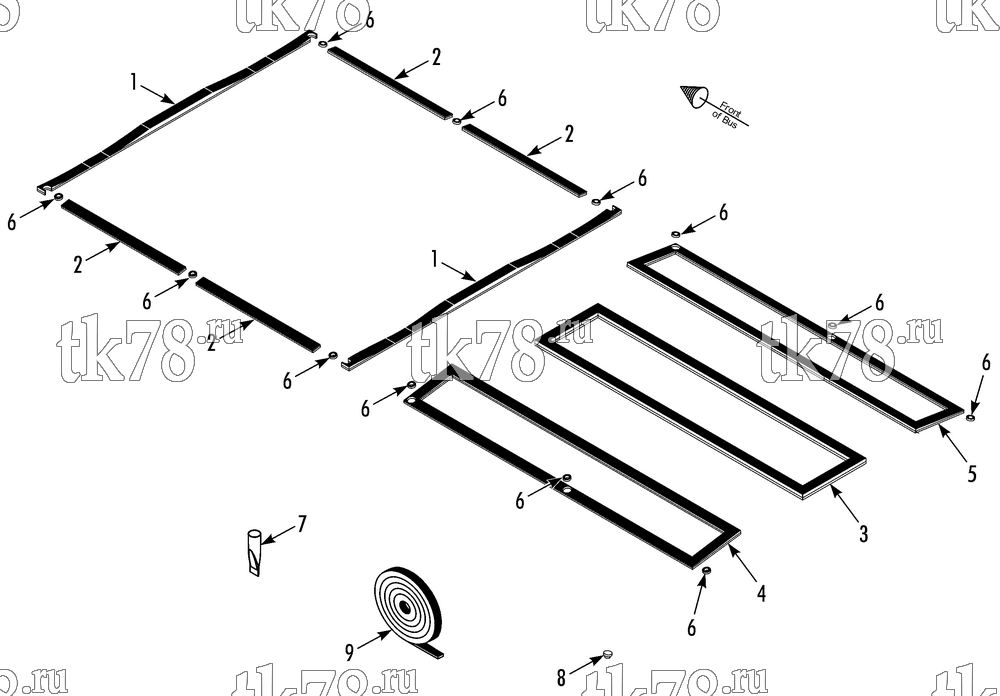

Установкa Thermo King MRT-SP (901123) схема MOUNTING COMPONENTS – 241A6
Обновление от: 11/4/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4575 | GASKET - seal, condenser | 2 | |
| 2 | 33-4576 | GASKET - seal, condenser sides | 4 | |
| 3 | 33-4577 | GASKET - seal, return air | 1 | |
| 4 | 33-4578 | GASKET - seal, discharge air (curbside) | 2 | |
| 5 | 33-4579 | GASKET - seal, discharge air (roadside) | 1 | |
| 6 | 51-192 | WASHER - special | 12 | |
| 7 | 66-1273 | VALVE - drain | 2 | |
| 8 | 92-1451 | PLUG - button (black) | 6 | |
| 9 | 203-391 | SEALER - tape | A/R |
