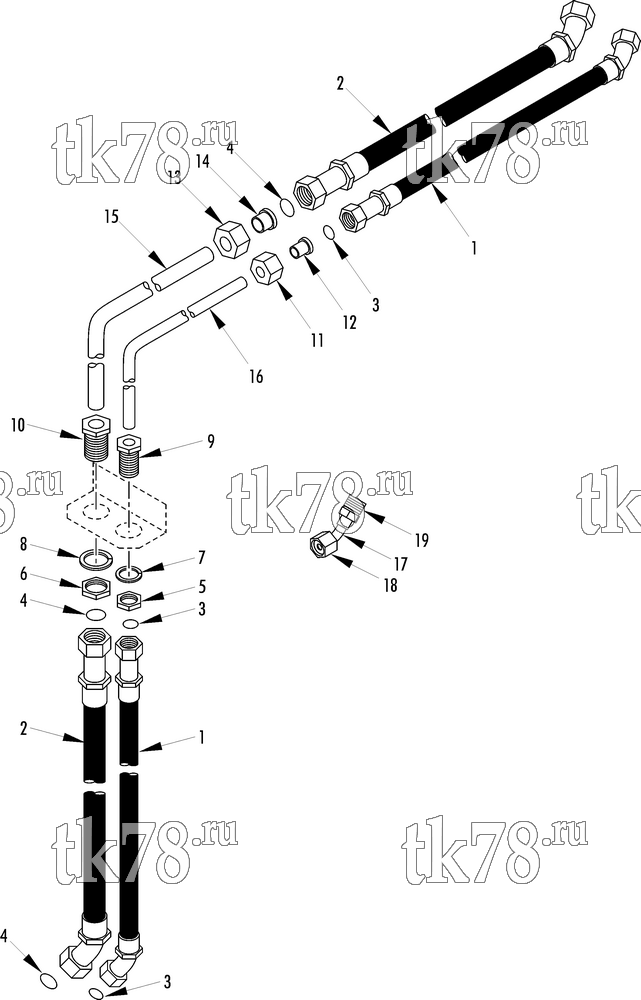

Установкa Thermo King MRT-SP (901123) схема COMPRESSOR HOSE CONNECTIONS – 241A5
Обновление от: 11/4/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-2973 | HOSE - discharge (#16, 26.4 in lg) | 1 | |
| 66-9477 | HOSE - discharge (#16, 23.5 in lg) | 1 | ||
| 2 | 61-2234 | HOSE - suction (#20, 32 in lg) | 2 | |
| 3 | 33-2789 | WASHER - sealing, (0.880 id, brass) | 4 | |
| 4 | 33-920 | O-RING (1-1/2 id) | 4 | |
| 5 | 55-5740 | NUT - bulkhead (#16) | 2 | |
| 6 | 55-5739 | NUT - bulkhead (#20) | 3 | |
| 7 | 55-5741 | LOCKWASHER (1.52 id) | 3 | |
| 8 | 55-5999 | LOCKWASHER (2.1 id) | 2 | |
| 9 | 55-7380 | ADAPTER - bulkhead (#16) | 3 | |
| 10 | 55-7832 | ADAPTER - bulkhead (#20) | 3 | |
| 11 | 55-5936 | NUT - shoulder (#16) | 1 | |
| 12 | 55-5938 | SLEEVE - adapter (#16) | 1 | |
| 13 | 55-5935 | NUT - shoulder (#20) | 1 | |
| 14 | 55-5939 | SLEEVE - adapter (#20) | 1 | |
| 15 | 61-3651 | TUBE - suction (incl Item 14) | 1 | |
| 16 | 61-2353 | TUBE - discharge (incl Item 12) | 1 | |
| 17 | 61-3653 | TUBE - adapter | 1 | |
| 18 | 55-6396 | NUT | 1 | |
| 55-6356 | SHOULDER | 1 | ||
| 19 | 51-1554 | ADAPTER - o-ring seal | 1 |
