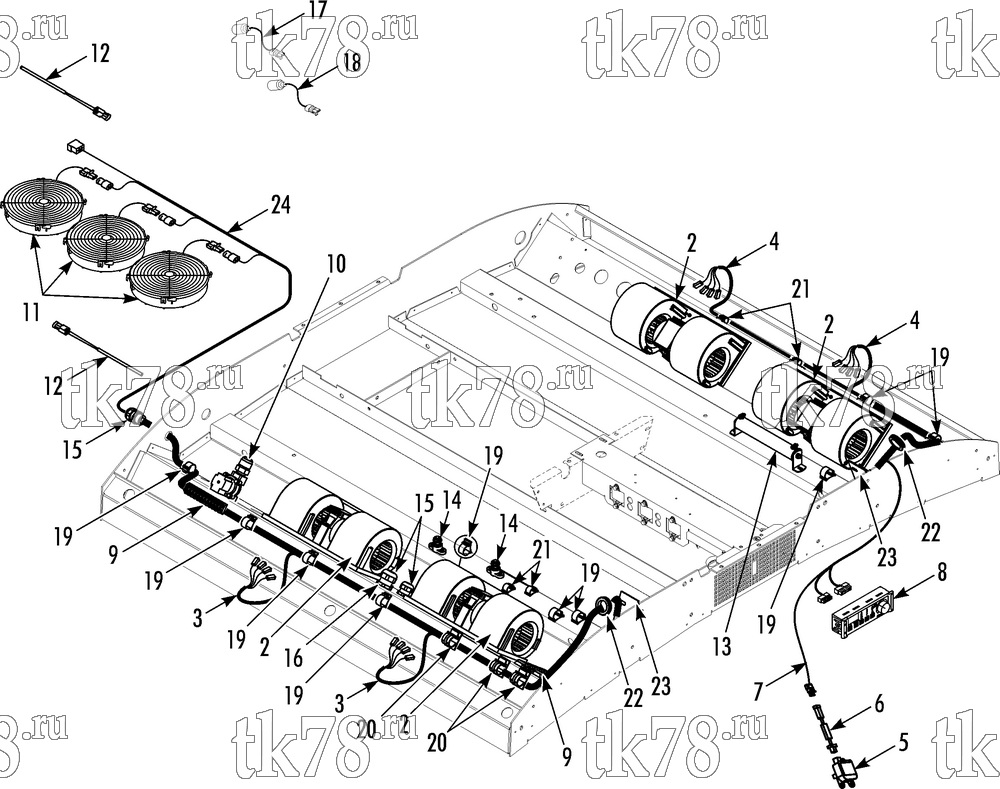

Установкa Thermo King MRT-SP (901123) схема ELECTRICAL COMPONENTS – 240G8
Обновление от: 1/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 240G9) | 1 | |
| 2 | 78-1297 | BLOWER - dual evaporator | 4 | |
| 3 | 41-8838 | HARNESS - main (including blower motors 1 & 2, see 236C4) | 1 | |
| 4 | 41-8844 | HARNESS - blower (motors 3 & 4) | 1 | |
| 44-6381 | CONNECTOR - female | 8 | ||
| 55-7702 | TERMINAL - fingrip (16-18 ga) | 8 | ||
| 5 | 41-3255 | ACTUATOR (see 197E8) | 1 | |
| 6 | 41-8845 | CONTROLLER - servomotor | 1 | |
| 41-3288 | CONNECTOR - 6 way | 1 | ||
| 44-9569 | CONNECTOR - shroud (3-pin) | 1 | ||
| 7 | 41-8843 | HARNESS - controller to unit (see 236C3) | 1 | |
| 8 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 9 | 44-6255 | BOARD - terminal | 3 | |
| 55-3687 | SCREW | 6 | ||
| 10 | 61-4259 | VALVE - solenoid (water 24V) | 1 | |
| 11 | 78-1344 | FAN - condenser | 3 | |
| 12 | 41-4157 | SENSOR - temperature | 2 | |
| 13 | 44-7131 | RESISTOR (0.2 ohm) | 1 | |
| 55-2957 | SCREW - mounting | 2 | ||
| 55-1800 | LOCKWASHER - mounting | 2 | ||
| 55-2086 | FLATWASHER - mounting | 2 | ||
| 55-3027 | SCREW - terminal | 2 | ||
| 55-2964 | LOCKWASHER - terminal | 4 | ||
| 55-2001 | FLATWASHER - terminal | 4 | ||
| 55-2965 | NUT - terminal | 2 | ||
| 14 | 51-1172 | STUD - junction block | 2 | |
| 51-749 | SCREW - block | 4 | ||
| 55-3066 | LOCKWASHER - stud | 2 | ||
| 55-448 | FLATWASHER - stud | 3 | ||
| 55-671 | NUT - stud | 2 | ||
| 15 | 41-4817 | CONNECTOR - liquid tite | 3 | |
| 55-2635 | NUT - lock | 3 | ||
| 16 | 41-4188 | CONNECTOR - liquid tite | 1 | |
| 55-2636 | NUT - lock | 1 | ||
| 17 | 41-6598 | SENSOR - hpco | 1 | |
| 18 | 41-4558 | SENSOR - lpco | 1 | |
| 19 | 99-9648 | CLIP - harness (.750 dia) | 10 | |
| 20 | 92-7413 | CLIP - harness (1.00dia) | 3 | |
| 21 | 99-9647 | CLIP - harness (.500 dia) | 5 | |
| 22 | 33-489 | GROMMET | 2 | |
| 23 | 92-4669 | PLATE - block | 2 | |
| 55-2957 | SCREW | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 24 | 41-9208 | HARNESS - condenser fans (see 115D14 for connectors) | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 3 | ||
| 41-438 | TERMINAL - fork (#6 blue, 14-16 ga) | 6 | ||
| 41-280 | TERMINAL - fork (#6 red, 16-22 ga) | 2 |
