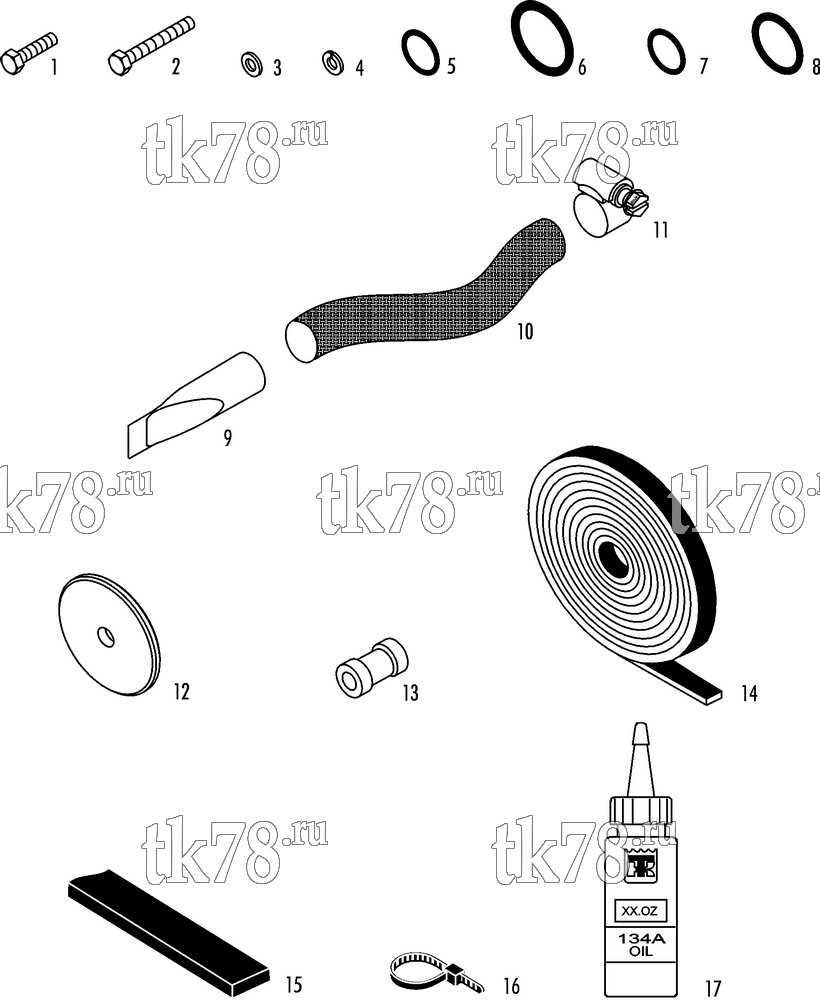

Установкa Thermo King MRT-III Split схема INSTALLATION COMPONENTS (880094) – 224G2
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-7035 | SCREW (M6, 25 lg) | 8 | |
| 2 | 55-7027 | SCREW (M6, 45 lg) | 2 | |
| 3 | 55-8893 | FLATWASHER | 10 | |
| 4 | 55-7170 | LOCKWASHER | 10 | |
| 5 | 33-1223 | O-RING (0.562 id) | 2 | |
| 6 | 33-3165 | O-RING (0.921 id) | 2 | |
| 7 | 33-2848 | O-RING (9/16 id) | 2 | |
| 8 | 33-2847 | O-RING (11/16 id) | 2 | |
| 9 | 66-1273 | VALVE - check (hose) | 4 | |
| 10 | 91-9006 | HOSE (#16) | A/R | |
| 11 | 55-6726 | CLAMP - hose | 4 | |
| 12 | 55-8542 | WASHER - special | 12 | |
| 13 | 305-1655 | SPACER - spoiler | 2 | |
| 14 | 203-391 | SEALER - tape | A/R | |
| 15 | 33-3531 | STRIP - neoprene (37.5 ft) | A/R | |
| 16 | 55-2330 | BANDWRAP | 4 | |
| 17 | 203-505 | OIL - compressor (2 oz bottle) | 1 |
