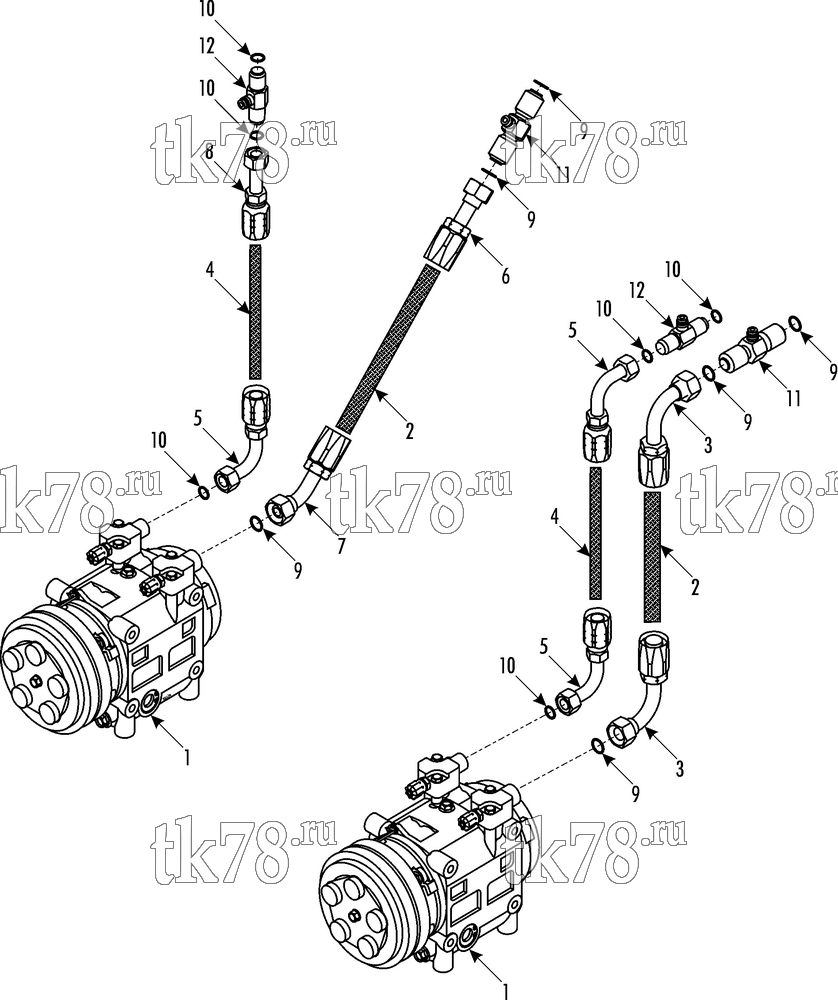

Установкa Thermo King MRT-III Split схема COMPRESSOR GROUP - TM31 (KIT 720562 & 720472) – 224G1
Обновление от: 10/24/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-736 | COMPRESSOR - TM31 (8KG, 24V) | 2 | |
| 107-338 | CLUTCH (8V, 24V) | 2 | ||
| 22-1261 | FITTING - discharge | 2 | ||
| 22-1262 | FITTING - suction | 2 | ||
| 55-5406 | SCREW - fittings | 8 | ||
| 33-4305 | O-RING | 4 | ||
| 203-515 | OIL - compressor (1 liter) | A/R | ||
| 55-6216 | SCREW - compressor | 2 | ||
| 55-5411 | LOCKWASHER | 2 | ||
| 2 | 61-2152 | HOSE - suction (22 mm id) | A/R | |
| 3 | 55-9793 | FITTING - suction (90 deg) | 2 | |
| 4 | 61-2154 | HOSE - discharge (16 mm id) | A/R | |
| 5 | 55-9796 | FITTING - discharge (90 deg) | 3 | |
| 6 | 55-9790 | FITTING - suction (straight) | 1 | |
| 7 | 55-9802 | FITTING - suction (45 deg) | 1 | |
| 8 | 55-9784 | FITTING - discharge (straight) | 1 | |
| 9 | 33-2847 | O-RING (11/16 id) | 6 | |
| 10 | 33-2848 | O-RING (9/16 id) | 6 | |
| 11 | 61-4199 | FITTING - special | 2 | |
| 12 | 61-4200 | FITTING - special | 2 |
