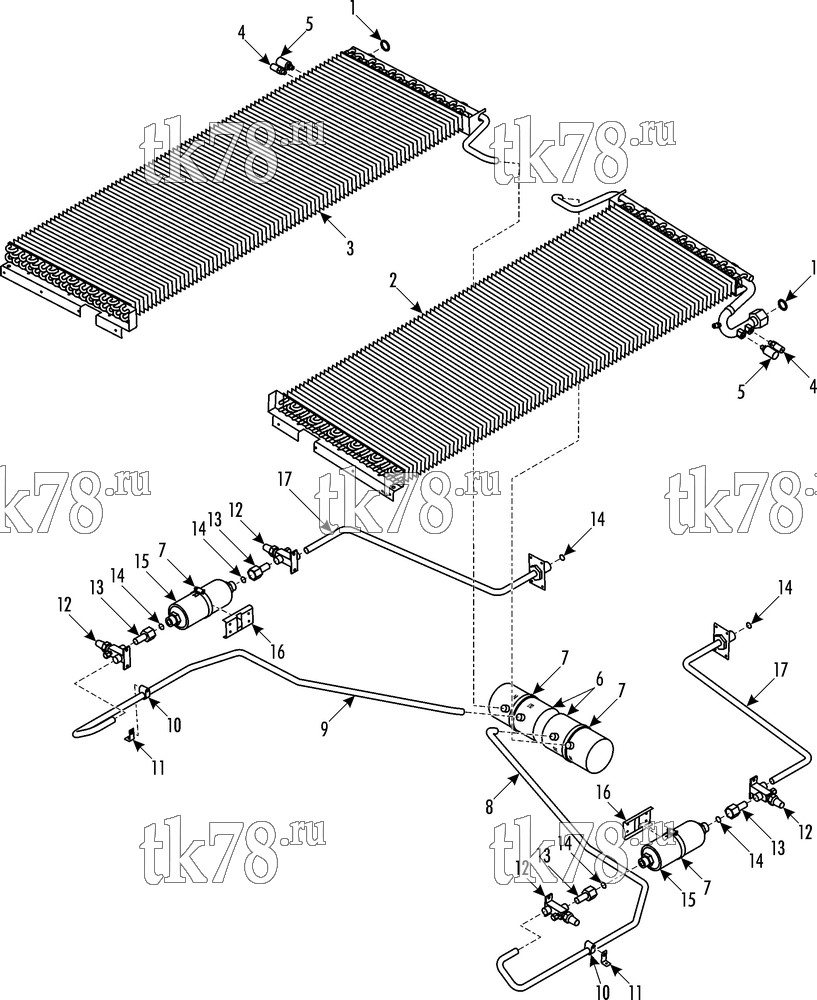

Установкa Thermo King MRT-III Split схема CONDENSER REFRIGERATION – 224F6
Обновление от: 10/24/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3165 | O-RING | 2 | |
| 2 | 67-2338 | COIL - condenser (left, narrow, see 224F3) | 1 | |
| 67-2340 | COIL - condenser (left, wide, see 224F4) | 1 | ||
| 3 | 67-2339 | COIL - condenser (right, narrow, see 224F3) | 1 | |
| 67-2341 | COIL - condenser (right, wide, see 224F4) | 1 | ||
| 4 | 41-5220 | SWITCH - hpco | 2 | |
| 5 | 66-7392 | VALVE - relief | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 6 | 67-1845 | TANK - receiver | 2 | |
| 7 | 55-2688 | CLAMP - tank & filter | 4 | |
| 8 | 61-4149 | TUBE (narrow) | 1 | |
| 61-4153 | TUBE (wide) | 1 | ||
| 9 | 61-4150 | TUBE (narrow) | 1 | |
| 61-4154 | TUBE (wide) | 1 | ||
| 10 | 91-758 | CLAMP - tube | 2 | |
| 55-8316 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 11 | 92-2116 | BRACKET - clamp (only wide units) | 2 | |
| 55-3010 | RIVET - bracket | 2 | ||
| 12 | 66-2104 | VALVE - shut-off | 4 | |
| 55-6994 | SCREW - valve | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-6995 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 13 | 66-9979 | TUBE - assembly | 4 | |
| 66-9913 | TUBE | 4 | ||
| 55-6396 | NUT - shoulder | 4 | ||
| 55-6356 | SHOULDER | 4 | ||
| 14 | 33-566 | O-RING | 6 | |
| 15 | 66-9352 | FILTER - drier | 2 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 16 | 91-9150 | BRACKET - filter | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 17 | 61-4151 | TUBE - assembly (narrow) | 2 | |
| 61-4152 | TUBE - assembly (wide) | 2 | ||
| 55-8749 | ADAPTER - bulkhead (#10, ORS) | 2 | ||
| 55-5130 | RIVET - tube assembly | 8 |
