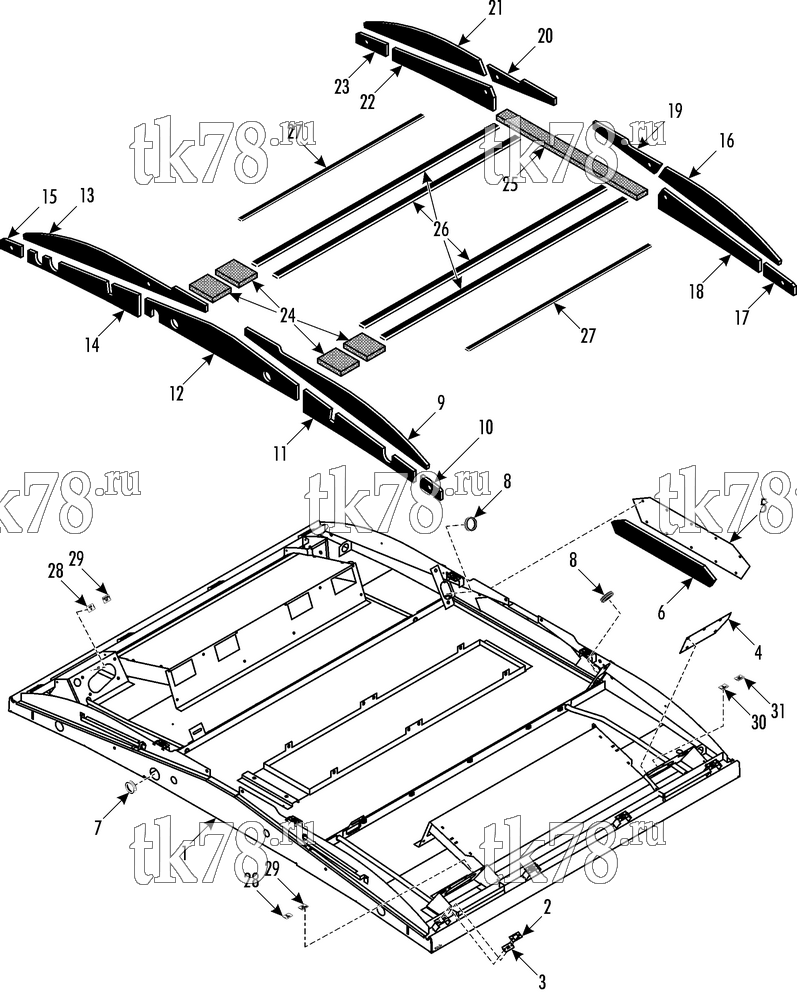

Установкa Thermo King MRT-III Split схема EVAPORATOR FRAME & INSULATION – 224F5
Обновление от: 10/24/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7921 | FRAME - evaporator (narrow) | 1 | |
| 98-7920 | FRAME - evaporator (wide) | 1 | ||
| 55-7866 | NUT - captive (M4) | A/R | ||
| 55-8375 | NUT - captive (M5) | A/R | ||
| 55-7373 | NUT - captive (M6) | A/R | ||
| 2 | 91-7625 | LOCKPLATE | 12 | |
| 3 | 55-2074 | NUT - speed | 12 | |
| 55-3010 | RIVET - lockplate & nut | 24 | ||
| 4 | 92-2318 | PLATE (unit w/o heater) | 1 | |
| 55-7036 | SCREW - plate | 5 | ||
| 55-7404 | LOCKWASHER | 5 | ||
| 55-7089 | FLATWASHER | 5 | ||
| 55-8375 | NUT - captive | 5 | ||
| 5 | 92-1080 | COVER - fresh air (unit w/o fresh air, option 099281) | 1 | |
| 6 | 92-1079 | INSULATION - cover (unit w/o fresh air, option 099281) | 1 | |
| 55-7366 | SCREW - cover | 10 | ||
| 55-7404 | LOCKWASHER | 10 | ||
| 55-7089 | FLATWASHER | 10 | ||
| 7 | 33-315 | GROMMET (1.312 id) | 1 | |
| 8 | 33-1770 | GROMMET (1.500 id) | 2 | |
| 9 | 92-1222 | INSULATION (narrow) | 1 | |
| 92-927 | INSULATION (wide) | 1 | ||
| 10 | 92-6534 | INSULATION (only wide units) | 1 | |
| 11 | 92-6539 | INSULATION (narrow) | 1 | |
| 92-6535 | INSULATION (wide) | 1 | ||
| 12 | 92-6536 | INSULATION | 1 | |
| 13 | 92-1221 | INSULATION (narrow) | 1 | |
| 92-926 | INSULATION (wide) | 1 | ||
| 14 | 92-6540 | INSULATION (narrow) | 1 | |
| 92-6537 | INSULATION (wide) | 1 | ||
| 15 | 92-6538 | INSULATION (only wide units) | 1 | |
| 16 | 92-1225 | INSULATION (narrow) | 1 | |
| 92-933 | INSULATION (wide) | 1 | ||
| 17 | 92-928 | INSULATION (only wide units) | 1 | |
| 18 | 92-1226 | INSULATION (narrow) | 1 | |
| 92-935 | INSULATION (wide) | 1 | ||
| 19 | 92-934 | INSULATION | 1 | |
| 20 | 92-938 | INSULATION | 1 | |
| 21 | 92-1228 | INSULATION (narrow) | 1 | |
| 92-1473 | INSULATION (wide) | 1 | ||
| 22 | 92-1227 | INSULATION (narrow) | 1 | |
| 92-1471 | INSULATION (wide) | 1 | ||
| 23 | 92-930 | INSULATION (only wide units) | 1 | |
| 24 | 92-1219 | FILTER - air | 4 | |
| 25 | 92-1220 | FILTER - air | 1 | |
| 26 | 99-5966 | STRIP - neoprene | A/R | |
| 27 | 99-1908 | STRIP - neoprene | A/R | |
| 28 | 91-7510 | NAMEPLATE - Gas In | 2 | |
| 29 | 91-8536 | NAMEPLATE - Vapor Out | 2 | |
| 30 | 91-7703 | NAMEPLATE - Liquid In (unit w/ heater) | 1 | |
| 31 | 91-7550 | NAMEPLATE - Liquid Out (unit w/ heater) | 1 |
