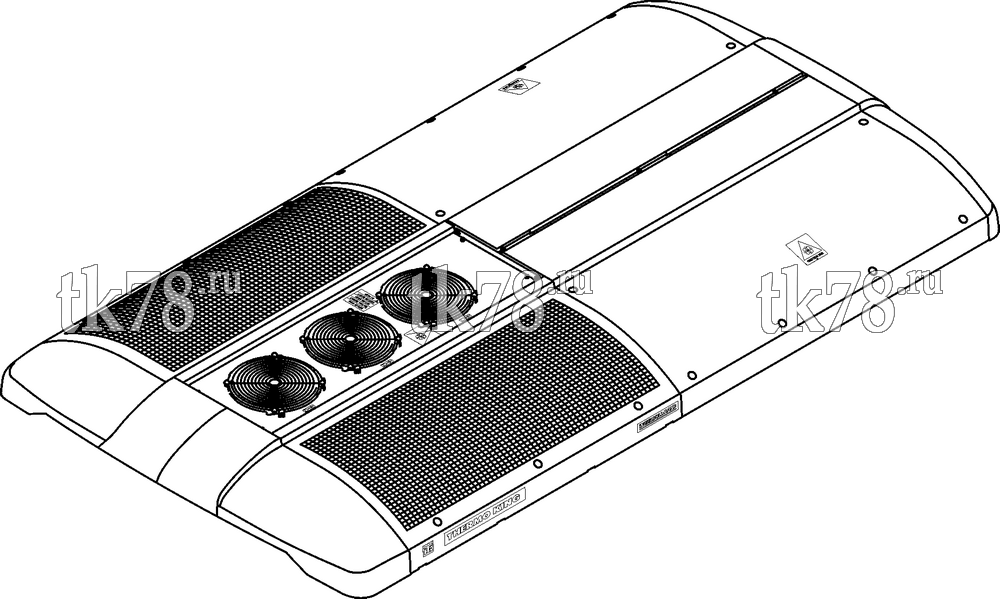

Установкa Thermo King MRT-III Split схема MRT-III Split REFERENCE SHEET – 12U48
Обновление от: 10/24/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 920059 | System MRT-III N Split 1000, Radius 7.5m, Width 1828 mm | 8/07 | ||
| 920060 | System MRT-III N Split 1004, Radius 7.5m, Width 1828 mm | 8/07 | ||
| 920061 | System MRT-III W Split 1000, Radius 11.5m, Width 2106 mm | 8/07 | ||
| 920062 | System MRT-III W Split 1004, Radius 11.5m, Width 2106 mm | 8/07 | ||
| 006710 | MRT-III N Split Condenser ( coil 8mm ) Radius 7.5m, 24V, Width1828 mm | 8/07 | ||
| 006053 | MRT-III N Split 1000 Evap. Radius 7.5m, 24V, Width 1828 mm | 8/07 | ||
| 006054 | MRT-III N Split 1004 Evap./Heat. Radius 7.5m, 24V, Width 1828 mm | 8/07 | ||
| 006663 | MRT-III W Split Condenser ( coil 8mm ) Radius 11.5m, 24V, Width 2106 mm | 8/07 | ||
| 006055 | MRT-III W Split 1000 Evap. Radius 11.5m, 24V, Width 2106 mm | 8/07 | ||
| 006056 | MRT-III W Split 1004 Evap./Heat. Radius 11.5m, 24V, Width 2106 mm | 8/07 | ||
| 006058 | ClimaAIRE II with Display Control system 1000, 1004 MRT Split - Control panel, Fans, Blowers, | 8/07 | ||
| 720192 | ClimaAIRE II DP with Display w/Harness (Unit Split - Driver panel - 18.3 m length) | 8/07 | ||
| 720193 | ClimaAIRE II DP with Display w/Harness (Unit Split - Driver panel - 12 m length) | 8/07 | ||
| 720576 | ClimaAIRE II DP with Display w/Harness (Unit Split - Driver panel - 8 m length) | 8/07 | ||
| 720194 | Harness ( Unit Split - 2 x Compressors - 18 m length) | 8/07 | ||
| 720195 | Harness ( Unit Split - 2 x Compressors - 12 m length) | 8/07 | ||
| 720577 | Harness ( Unit Split - 2 x Compressors - 8.2 m length) | 8/07 | ||
| 099361 | Fresh air damper (Pneumatic) | 8/07 | ||
| 007076 | Kit Fresh Air Damper (electric) - for MRT/LRT | 8/07 | ||
| 099281 | NO fresh air damper | 8/07 | ||
| 006274 | Tube Heating system wide without Heat valve (MRT III W Split) | 8/07 | ||
| 006276 | Tube Heating system narrow without Heat valve (MRT III N Split) | 8/07 | ||
| 880094 | Kit Installation Split | 8/07 | ||
| 880193 | Kit installation MRT-III Split and hoses # 16, #12 & fittings & charging hoses for CCML | 8/07 | ||
| 720190 | Compressors 2x TM16, 8K pulley 24V ( 2 x 1C79171G09) | 8/07 | ||
| 719004 | Kit Water Boost Pump 27 Vdc; Hose connections - I.D. 21mm; for US only | 8/07 | ||
| 719005 | Kit Water Boost Pump; 27 Vdc; Hose connections - I.D. 38mm; 5000L/Hr | 8/07 | ||
| 719006 | Harness (Unit - Water Boost Pump - 14 m length) | 8/07 | ||
| 719007 | Harness (Unit - Water Boost Pump - 9 m length) - "Recommended""" | 8/07 | ||
| 719008 | Harness (Unit - Water Boost Pump - 7.6 m length) | 8/07 | ||
| 700129 | Kit water valve 2-way servomotor | 8/07 | ||
| 700130 | Kit water valve 3-way servomotor | 8/07 | ||
| 700127 | Kit harness 10m servomotor water valve | 8/07 | ||
| 700128 | Kit harness 20m servomotor water valve | 8/07 | ||
| 715089 | Kit Grill Return Air Filter (SRT, MRT) - Black color | 8/07 | ||
| 720533 | Kit hoses for 2x TM16 or 2x TM21 compressors | 8/07 | ||
| 719305 | Kit Alternator 150 A, 24 Vdc, 24 V Excitation, 3.25" for ClimaAIRE" | 8/07 | ||
| 719306 | Kit Alternator 125 A, 24 Vdc, 12 V Excitation, 3.25" for ClimaAIRE" | 8/07 |
