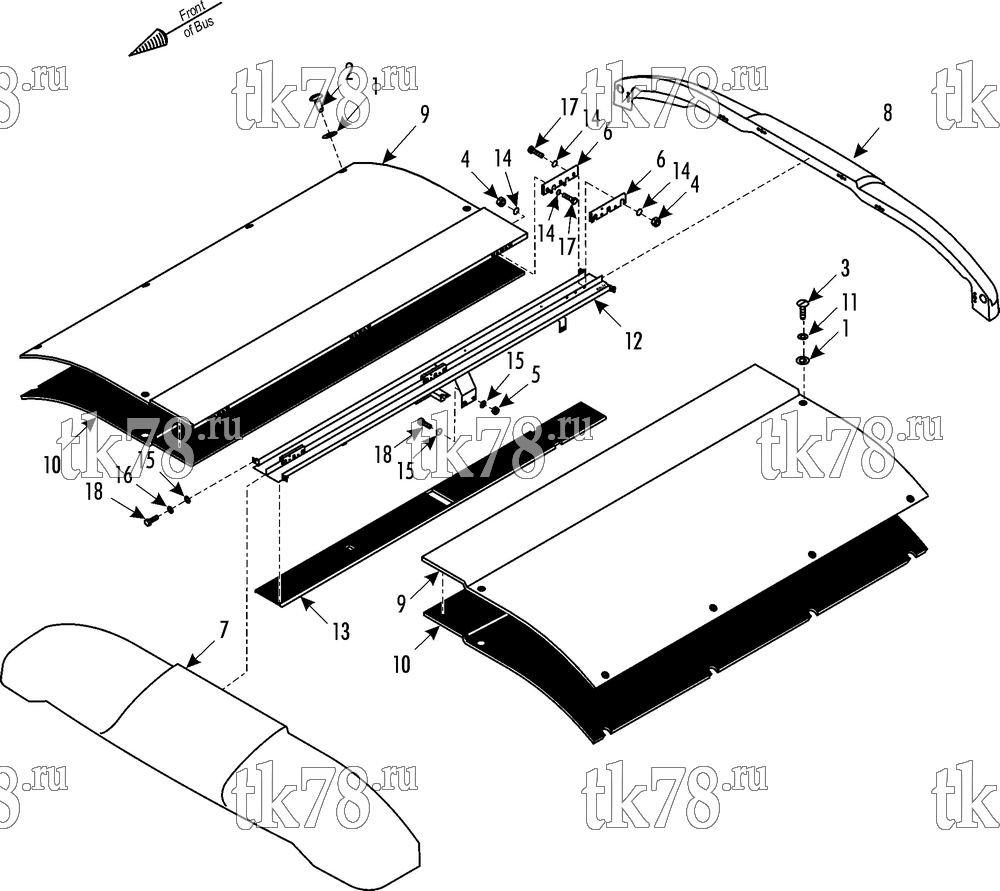

Установкa Thermo King MRT-III N Ventilation KAROSA w/o Refrigerant схема COVERS & INSULATION – 181H4
Обновление от: 11/13/02
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 55-7112 | WASHER - special | 12 |
| 2 | 55-2782 | SCREW - cover (short) | 8 |
| 3 | 55-9122 | SCREW - cover (long) | 4 |
| 4 | 55-7034 | NUT (M5) | 21 |
| 5 | 55-7042 | NUT (M6) | 4 |
| 6 | 91-7098 | HINGE - cover | 6 |
| 7 | 98-5630 | SPOILER - long | 1 |
| 8 | 98-5631 | SPOILER - short | 1 |
| 9 | 98-6558 | COVER - evaporator | 2 |
| 10 | 33-3718 | INSULATION - cover | 2 |
| 11 | 51-307 | RING - neoprene | 4 |
| 12 | 98-6030 | SUPPORT - assembly | 1 |
| 98-6559 | SUPPORT - welded | 1 | |
| 55-7373 | NUT - captive (M6) | 6 | |
| 13 | 92-1728 | INSULATION - support | 1 |
| 14 | 55-7033 | FLATWASHER | 42 |
| 15 | 55-7075 | FLATWASHER | 12 |
| 16 | 55-7170 | LOCKWASHER | 4 |
| 17 | 55-7036 | SCREW (M5) | 21 |
| 18 | 55-6994 | SCREW (M6) | 8 |
