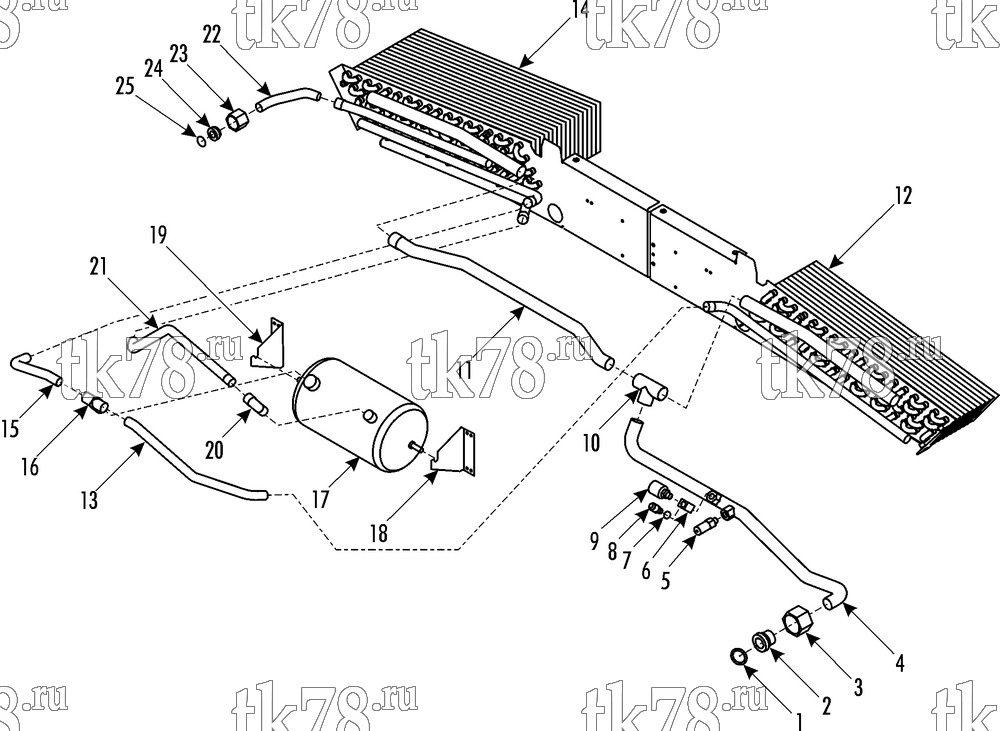

Установкa Thermo King MRT-III N 1004 KAROSA схема CONDENSER REFRIGERATION – 186A5
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3165 | O-RING | 1 | |
| 2 | 55-9339 | SLEEVE - adapter | 1 | |
| 3 | 55-5936 | NUT - bulkhead | 1 | |
| 4 | 66-9912 | TUBE - adapter to tee | 1 | |
| 55-7535 | SADDLE - valve | 1 | ||
| 66-4553 | SADDLE - fitting | 1 | ||
| 5 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 6 | 55-665 | TEE - special | 1 | |
| 7 | 33-1015 | O-RING - special tee | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 11-2886 | VALVE - pressure (see 119G12) | 1 | |
| 9 | 44-7991 | SWITCH - hpco | 1 | |
| 10 | 55-6174 | TEE | 1 | |
| 11 | 66-9911 | TUBE - tee to coil | 1 | |
| 12 | 67-1744 | COIL - condenser (right, see 186A3) | 1 | |
| 13 | 66-9917 | TUBE - right coil to tee | 1 | |
| 14 | 67-1745 | COIL - condenser (left, see 186A3) | 1 | |
| 15 | 66-9916 | TUBE - left coil to tee | 1 | |
| 16 | 55-7065 | TEE | 1 | |
| 17 | 67-1520 | TANK - receiver | 1 | |
| 55-7825 | NUT - receiver tank | 2 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 18 | 91-9872 | SUPPORT - receiver tank (left) | 1 | |
| 19 | 91-9871 | SUPPORT - receiver tank (right) | 1 | |
| 20 | 55-3441 | ELBOW - receiver tank | 1 | |
| 21 | 61-832 | TUBE - elbow to coil | 1 | |
| 22 | 61-833 | TUBE - coil to bulkhead | 1 | |
| 23 | 55-6396 | NUT - bulkhead | 1 | |
| 24 | 55-6356 | SLEEVE - adapter | 1 | |
| 25 | 33-1223 | O-RING | 1 |
