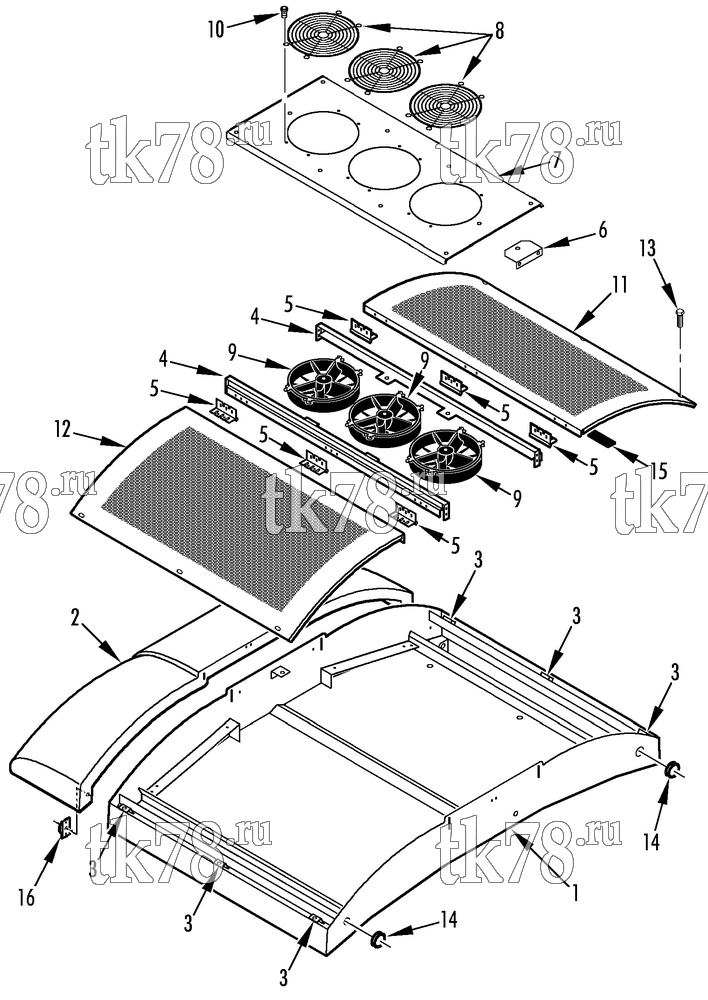

Установкa Thermo King MRT-I 1004/TM21 схема CONDENSER STRUCTURAL & FANS – 183H9
Обновление от: 5/24/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5983 | FRAME - condenser | 1 | |
| 2 | 98-5059 | SHROUD - condenser | 1 | |
| 3 | 91-7625 | LOCKPLATE | 6 | |
| 91-7097 | NUTSTRIP - shroud | 4 | ||
| 55-2074 | NUT - speed | 6 | ||
| 55-3010 | RIVET - nut | 12 | ||
| 4 | 98-4894 | SUPPORT - center pan | 2 | |
| 55-6526 | INSERT (1/4-20) | 16 | ||
| 55-6721 | INSERT (10-32) | 18 | ||
| 55-2957 | SCREW - support | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 5 | 91-7098 | HINGE - cover | 6 | |
| 55-2991 | SCREW - hinge | 18 | ||
| 55-2964 | LOCKWASHER | 18 | ||
| 55-2001 | FLATWASHER | 18 | ||
| 6 | 92-3026 | BRACKET - center panel | 2 | |
| 55-2979 | SCREW - bracket | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 7 | 98-5602 | PANEL - motor/fan | 1 | |
| 55-2979 | SCREW - panel | 6 | ||
| 55-3045 | LOCKWASHER - dome | 6 | ||
| 8 | 91-9402 | GUARD - fan | 3 | |
| 9 | 78-1294 | FAN & MOTOR (for connector see 115D14) | 3 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 91-7096 | BRACKET - fan | 4 | ||
| 10 | 55-2979 | SCREW - guard & motor shroud | 12 | |
| 55-2086 | FLATWASHER | 24 | ||
| 55-4953 | NUT | 12 | ||
| 11 | 98-6598 | COVER (roadside) | 1 | |
| 12 | 98-6599 | COVER (curbside) | 1 | |
| 55-2991 | SCREW - cover to hinge | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 12 | ||
| 13 | 55-2782 | FASTENER - grille | 6 | |
| 55-7112 | WASHER - special (0.255 id) | 6 | ||
| 99-2705 | WASHER - special (0.875 id) | 12 | ||
| 14 | 33-452 | GROMMET (0.875 id) | 1 | |
| 33-1809 | GROMMET (0.500 id) | 1 | ||
| 15 | 33-3751 | INSULATION - grille | 2 |
