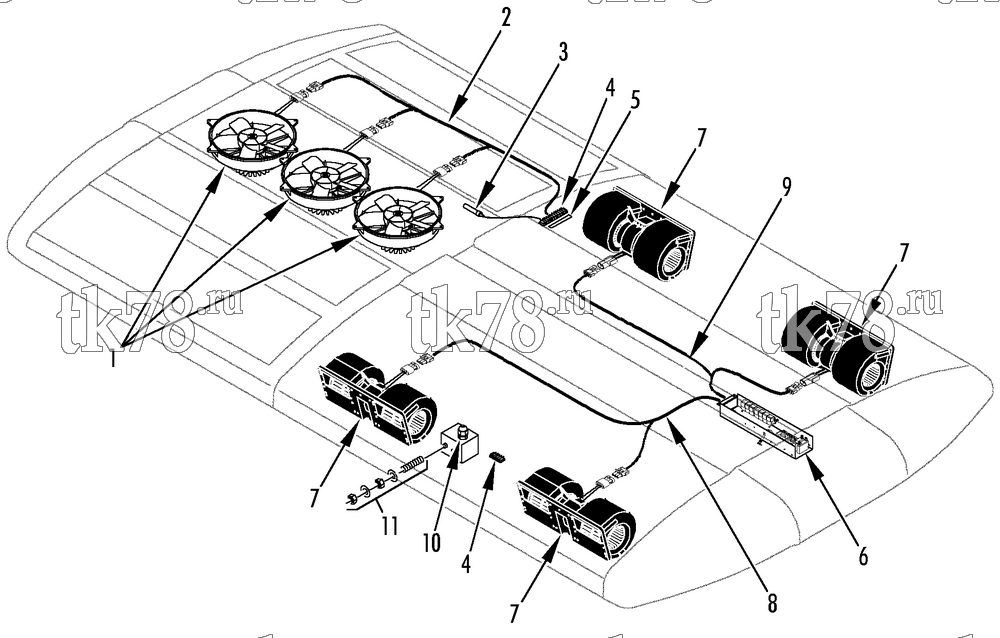

Установкa Thermo King MRT-I 1004/TM21 схема ELECTRICAL COMPONENTS – 183H5
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1294 | FAN & MOTOR - condenser | 3 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 2 | 41-2672 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 3 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 4 | 44-6255 | BOARD - terminal (11 terminal, 20 amp) | 3 | |
| 41-2372 | BOARD - terminal (4 terminal, 55 amp) | 2 | ||
| 55-3442 | SCREW - board | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-8482 | INSERT | 10 | ||
| 5 | 91-8626 | MARKSTRIP - condenser | 1 | |
| 91-8938 | MARKSTRIP - evaporator (L) | 1 | ||
| 91-8939 | MARKSTRIP - evaporator (P) | 1 | ||
| 41-1908 | MARKSTRIP - evaporator | 1 | ||
| 6 | NSS | PANEL - control (see 183H4) | 1 | |
| 7 | 78-1198 | BLOWER - evaporator | 4 | |
| 8 | 41-2875 | HARNESS - evaporator blower (right, for connectors see 115D14) | 1 | |
| 9 | 41-2876 | HARNESS - evaporator blower (left, for connectors see 115D14) | 1 | |
| 10 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2242 | LOCKNUT | 1 | ||
| 11 | 55-3167 | STUD - terminal | 2 | |
| 55-671 | NUT - terminal stud | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3672 | LOCKWASHER | 2 | ||
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 41-2902 | HARNESS - channel wires/diode | 1 | ||
| 41-2670 | DIODE - assembly | 1 | ||
| 44-5763 | DIODE - silicone rectifier | |||
| 41-5479 | HARNESS - pressure switch (for connectors see 115D14) | 1 |
