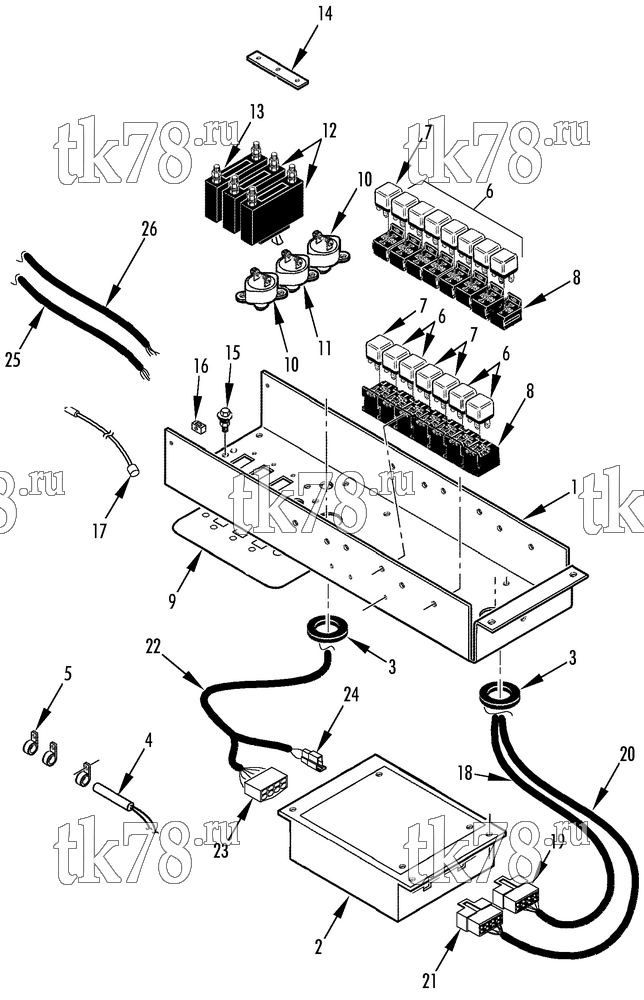

Установкa Thermo King MRT-I 1004/TM21 схема CONTROL PANEL – 183H4
Обновление от: 9/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3039 | PANEL - control | 1 | |
| 55-2977 | SCREW - panel | 4 | ||
| 55-8718 | SPACER | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 2 | NSS | CONTROLLER (see 153D8) | 1 | |
| 3 | 33-489 | GROMMET | 2 | |
| 4 | 41-7706 | SENSOR - temperature | 1 | |
| 5 | 99-3427 | MOUNT - sensor | 3 | |
| 55-3010 | RIVET | 3 | ||
| 6 | 41-896 | RELAY - mini (1pdt, 24V) | A/R | |
| 41-895 | RELAY - mini (1pdt, 12V) | A/R | ||
|
30-41-895 | Реле | 1 650 ₽ |
|
| 7 | 44-9392 | RELAY - mini (dpst, 24V) | A/R | |
| 44-9391 | RELAY - mini (dpst, 12V) | A/R | ||
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 8 | 44-5537 | SOCKET - relay | 15 | |
| 55-2995 | SCREW - socket | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 9 | 91-7702 | NAMEPLATE - control panel | 1 | |
| 10 | 41-651 | BREAKER - circuit (10 amp) | 2 | |
| 11 | 41-652 | BREAKER - circuit (15 amp) | 1 | |
| 55-3404 | SCREW - breaker | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 12 | 44-7220 | BREAKER - circuit (30 amp) | 2 | |
| 13 | 41-2398 | BREAKER - circuit (40 amp) | 1 | |
| 55-2997 | SCREW - circuit breaker | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 14 | 41-2478 | STRIP - jumper | 1 | |
| 15 | 55-629 | SCREW - ground | 1 | |
| 55-8596 | FLATWASHER | 3 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-277 | NUT | 2 | ||
| 16 | 99-3281 | MOUNT - cable tie (#8) | 3 | |
| 99-3427 | MOUNT - cable tie (#6) | 3 | ||
| 55-3272 | RIVET - mount | 6 | ||
| 17 | 41-243 | STRAP - door | 1 | |
| 55-2995 | SCREW - strap | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 18 | 41-2874 | HARNESS - relay | 1 | |
| 19 | 41-650 | CONNECTOR (18-pin) | 1 | |
| 20 | 41-5478 | HARNESS - controller (24V) | 1 | |
| 41-280 | TERMINAL - fork (16-22, red #6) | 14 | ||
| 41-743 | CONNECTOR (14-pin) | 1 | ||
| 44-8779 | CLAMP - cable | 1 | ||
| 41-182 | TERMINAL - pin (18 ga) | 14 | ||
| 41-3653 | HARNESS - controller (12V) | 1 | ||
| 21 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 22 | 41-3652 | HARNESS - control panel, condenser (24V, for connectors see 115D14) | 1 | |
| 41-2673 | HARNESS - control panel/condenser (12V, for connectors see 115D14) | 1 | ||
| 41-4973 | TERMINAL - fork (yellow #6) | 1 | ||
| 41-280 | TERMINAL - fork (red #6) | 3 | ||
| 41-438 | TERMINAL - fork (blue #6) | 8 | ||
| 44-2792 | TERMINAL - ring (yellow #10) | 1 | ||
| 44-9995 | TERMINAL - ring (yellow 5/16) | 1 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 4 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 23 | 41-656 | CONNECTOR - inline (24 terminal) | 1 | |
| 24 | 41-654 | CONNECTOR - inline (4 terminal) | 1 | |
| 25 | 41-3651 | HARNESS - control panel/terminal board (24V) | 1 | |
| 41-5477 | HARNESS - control panel/terminal board (12V) | 1 | ||
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 6 | ||
| 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 1 | ||
| 41-438 | TERMINAL - fork (14-16 ga, blue #6) | 2 | ||
| 41-280 | TERMINAL - fork (16-22 ga, red #6) | 6 | ||
| 41-656 | CONNECTOR (24-pin) | 1 | ||
| 41-1807 | TERMINAL (18-24 ga) | 24 | ||
| 41-654 | CONNECTOR (4-pin) | 1 | ||
| 41-1807 | TERMINAL (18-24 ga) | 4 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 44-5763 | DIODE | 1 | ||
| 26 | 41-2873 | HARNESS - damper (for connector see 115D14) | 1 | |
| 44-2788 | TERMINAL - fork (16-22 ga, red #8) | 1 | ||
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 1 | ||
| 44-1031 | TERMINAL - ring (16-22, red 5/16) | 1 | ||
| 44-6959 | CONNECTOR - tower (3-pin) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 3 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 3 |
