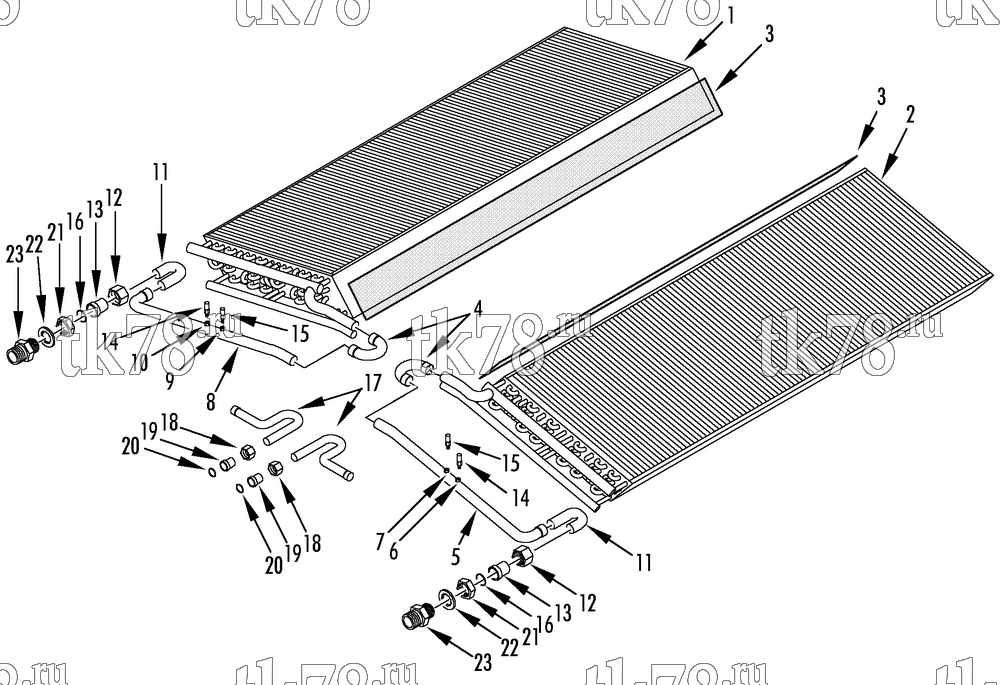

Установкa Thermo King MRT-I 1004/TM21 схема REFRIGERATION CONDENSER (SPLIT UNIT) – 183H0
Обновление от: 7/21/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1526 | COIL - condenser (curbside) | 1 | |
| 2 | 67-1525 | COIL - condenser (roadside) | 1 | |
| 55-2957 | SCREW - coil | 10 | ||
| 55-4414 | WASHER - special | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 3 | 99-5966 | STRIP - neoprene | A/R | |
| 4 | 66-9538 | TUBE - U | 2 | |
| 5 | 66-9539 | TUBE - bulkhead to coil (roadside) | 1 | |
| 6 | 55-7535 | FITTING - saddle | 2 | |
| 7 | 66-4553 | FITTING - saddle | 1 | |
| 8 | 66-9540 | TUBE - bulkhead to coil (curbside) | 1 | |
| 9 | 66-4553 | FITTING | 1 | |
| 10 | 55-7535 | FITTING | 1 | |
| 11 | 66-9183 | TUBE - bulkhead | 2 | |
| 12 | 55-5936 | NUT - shoulder | 1 | |
| 13 | 55-9339 | SLEEVE | 1 | |
| 14 | 44-7991 | SWITCH - hpco | 1 | |
| 15 | 66-7392 | VALVE - relief (see 119B8) | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 16 | 33-2789 | WASHER - sealing | 2 | |
| 17 | 66-9542 | TUBE - coil to bulkhead | 2 | |
| 18 | 55-6396 | NUT - shoulder | 1 | |
| 19 | 55-6839 | SHOULDER - tube | 1 | |
| 20 | 33-1223 | O-RING | 2 | |
| 21 | 55-5741 | LOCKWASHER (internal tooth) | 2 | |
| 22 | 55-5740 | NUT - bulkhead | 2 | |
| 23 | 66-6840 | ADAPTER - bulkhead | 2 |
