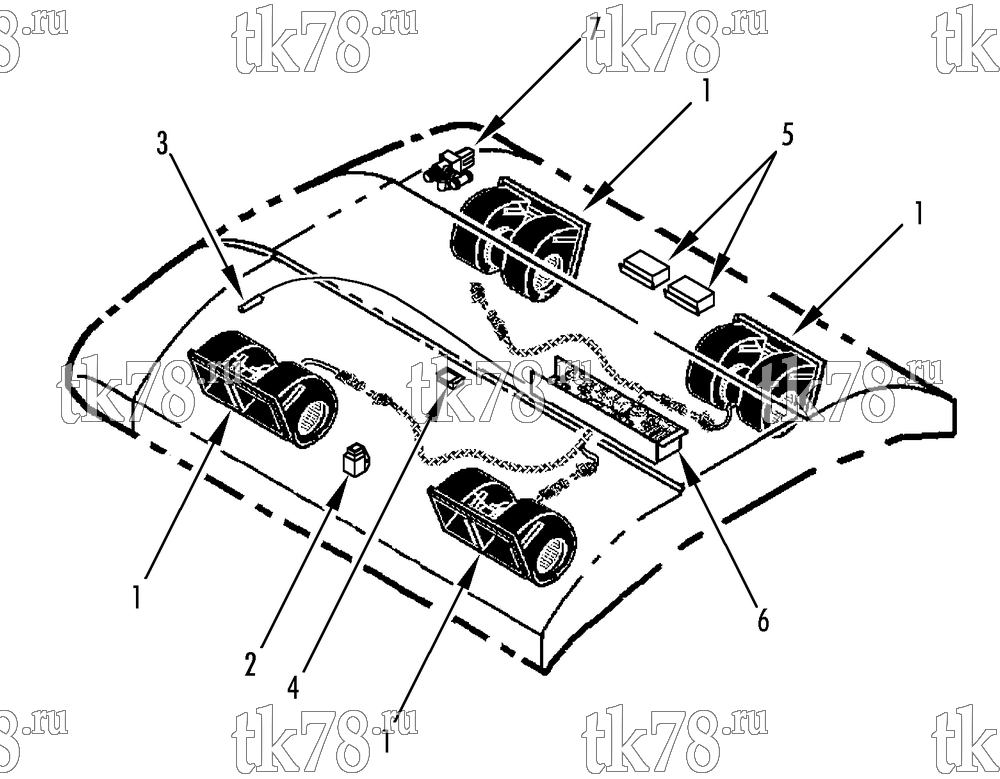

Установкa Thermo King MRT HEAT схема ELECTRICAL COMPONENTS – 165E7
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1198 | BLOWER & MOTOR | 4 | |
| 55-3511 | SCREW - blower | 20 | ||
| 55-3800 | LOCKWASHER | 20 | ||
| 55-2201 | FLATWASHER | 20 | ||
| 2 | 41-3962 | SENSOR - temperature | 1 | |
| 55-1587 | SCREW - sensor | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 3 | 40-975 | KIT - temperature sensor (Thermo King) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 4 | 41-9420 | THERMOSTAT | 1 | |
| 55-7169 | SCREW - thermostat | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 5 | 41-3830 | CONTROLLER - speed | 4 | |
| 55-4474 | SCREW - controller | 8 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-2202 | LOCKWASHER | 8 | ||
| 55-6717 | INSERT | 8 | ||
| 6 | NSS | PANEL - control (see 165E6) | 1 | |
| NSS | PANEL - control (Thermo King, see 165E2) | 1 | ||
| 7 | 41-3963 | VALVE - water (see 165E5) | 1 | |
| 41-4151 | VALVE - solenoid (water, Thermo King, see 165E8) | 1 | ||
| 60-271 | KIT - repair | 1 | ||
| 41-4201 | COIL (24V) | 1 |
