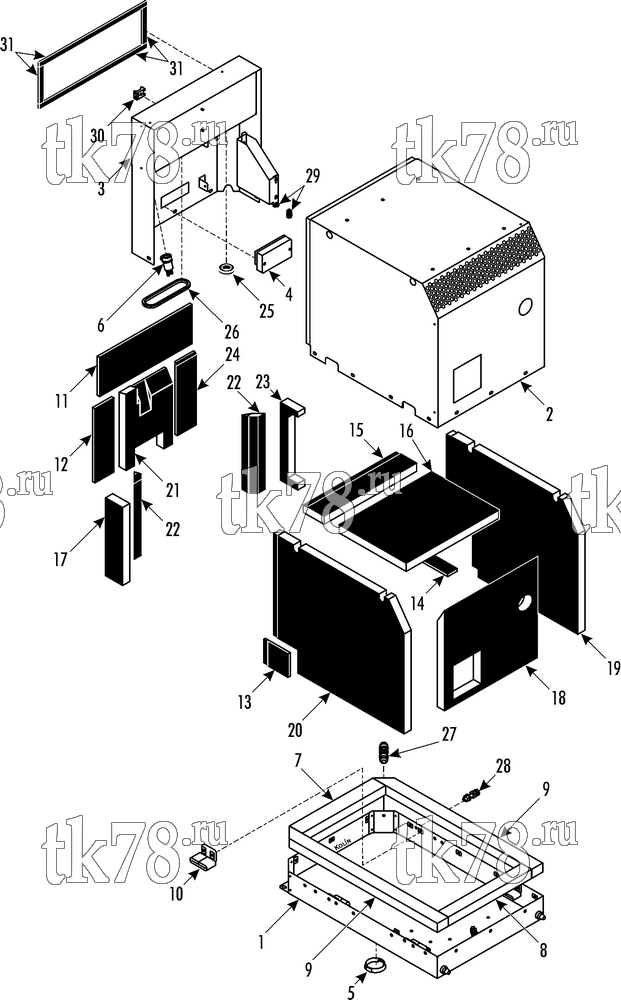

Установкa Thermo King MOPACC - HATZ Engine (Before 07/2005) схема BASE & INSULATIONS – 198F5
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6874 | BASE | 1 | |
| 55-6993 | SCREW - base | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 2 | 98-6875 | COVER | 1 | |
| 3 | 92-4516 | PANEL - front | 1 | |
| 51-689 | SCREW - panel & cover | 16 | ||
| 51-871 | WASHER | 16 | ||
| 4 | 92-3925 | PULL | 1 | |
| 5 | 51-887 | PLUG | 1 | |
| 6 | 92-3926 | BODY - coupling | 1 | |
| 7 | 92-3927 | PAD - vibration isolation | 1 | |
| 8 | 92-3928 | PAD - vibration isolation | 1 | |
| 9 | 92-3929 | PAD - vibration isolation | 2 | |
| 10 | 92-4517 | STOP - assy | 4 | |
| 51-689 | SCREW - stop | 8 | ||
| 51-871 | WASHER | 8 | ||
| 11 | 92-3931 | INSULATION | 1 | |
| 12 | 92-4518 | INSULATION | 1 | |
| 13 | 92-4519 | INSULATION | 1 | |
| 14 | 92-4520 | INSULATION | 1 | |
| 15 | 92-3932 | INSULATION | 1 | |
| 16 | 92-3933 | INSULATION | 1 | |
| 17 | 92-3934 | INSULATION | 1 | |
| 18 | 92-3935 | INSULATION | 1 | |
| 19 | 92-3937 | INSULATION | 1 | |
| 20 | 92-4521 | INSULATION | 1 | |
| 21 | 92-4522 | INSULATION | 1 | |
| 22 | 92-3939 | INSULATION | 2 | |
| 23 | 92-3940 | INSULATION | 1 | |
| 24 | 92-4523 | INSULATION | 1 | |
| 25 | 33-1215 | GROMMET (1/2 id) | 1 | |
| 26 | 92-3279 | EXTRUSION - rubber | A/R | |
| 27 | 55-9507 | STUD - ground | 1 | |
| 51-106 | FLATWASHER (brass) | 6 | ||
| 55-7378 | LOCKWASHER - internal tooth | 3 | ||
| 51-105 | NUT (brass) | 3 | ||
| 28 | 51-104 | SCREW - ground | 1 | |
| 55-7378 | LOCKWASHER - internal tooth | 1 | ||
| 51-106 | FLATWASHER (brass) | 2 | ||
| 51-105 | NUT (brass) | 2 | ||
| 29 | 55-7172 | SCREW | 2 | |
| 55-7075 | FLATWASHER | 2 | ||
| 55-7378 | LOCKWASHER - internal tooth | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 30 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-5130 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | A/R | ||
| 31 | 99-1908 | STRIP - neoprene | A/R |
