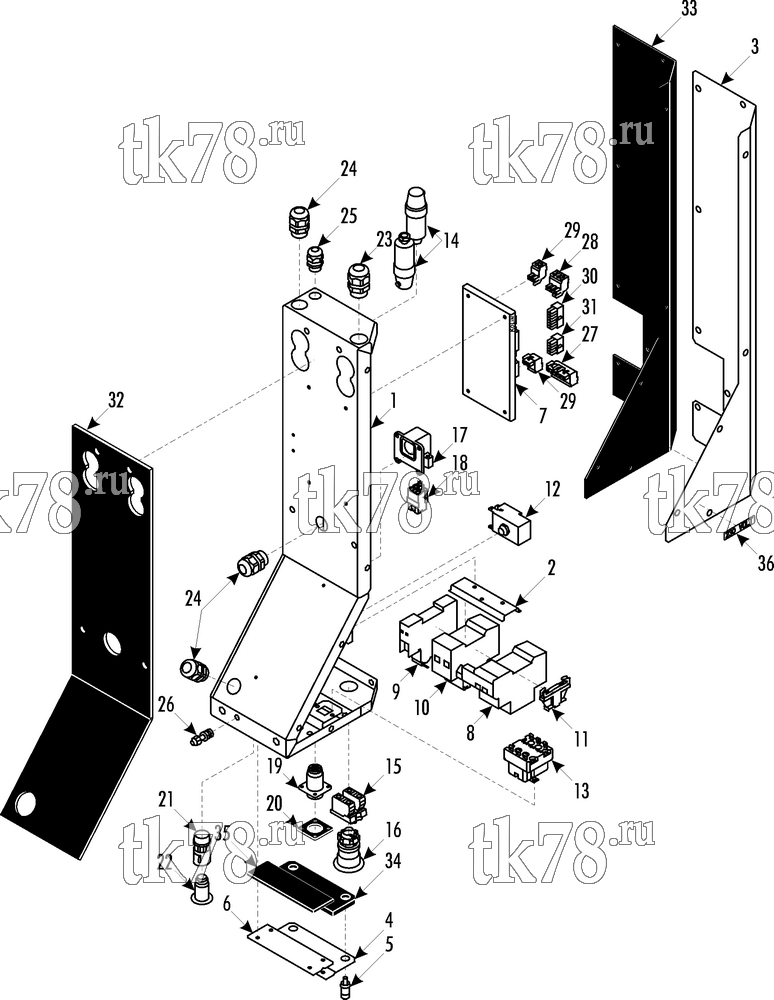

Установкa Thermo King MOPACC - HATZ Engine (Before 07/2005) схема ELECTRIC BOX - CCU – 198F0
Обновление от: 1/25/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6879 | BOX - weld | 1 | |
| 2 | 92-3960 | RAIL - din | 1 | |
| 55-7172 | SCREW - box (16 mm lg) | 4 | ||
| 55-7372 | SCREW - box (30 mm lg) | 2 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 51-290 | NUT - captive | 2 | ||
| 3 | 98-6880 | COVER - box | 1 | |
| 55-7409 | SCREW - cover | 12 | ||
| 51-130 | LOCKWASHER | 12 | ||
| 51-190 | NUT - captive | 12 | ||
| 4 | 92-4529 | DOOR | 1 | |
| 5 | 55-9758 | SCREW - captive | 2 | |
| 51-190 | NUT - captive | 2 | ||
| 6 | 92-4530 | HINGE - door | 1 | |
| 55-5130 | RIVET - hinge | 4 | ||
| 7 | 41-6065 | BOARD - pc | 1 | |
| 51-889 | STUD - self-clinching | 4 | ||
| 55-9980 | WASHER (nylon) | 4 | ||
| 55-7368 | FLATWASHER | 4 | ||
| 55-7665 | NUT | 4 | ||
| 8 | 41-6066 | BLOCK - current leakage protector | 1 | |
| 9 | 41-6068 | TRIP - shunt | 1 | |
| 10 | 41-6067 | BREAKER - circuit (10 amp) | 1 | |
| 11 | 91-6465 | CLAMP - rail end | 1 | |
| 12 | 41-5080 | FREEZESTAT | 1 | |
| 13 | 41-6425 | LIMITER - temperature | 1 | |
| 55-7843 | SCREW - limiter | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 14 | 41-6069 | CAPACITOR | 2 | |
| 15 | 41-6071 | SWITCH - assembly | 1 | |
| 16 | 41-6070 | HEAD - control | 1 | |
| 17 | 41-6414 | HOUSING - connector | 1 | |
| 55-7664 | SCREW - housing | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-9866 | NUT - captive | 4 | ||
| 18 | 41-6426 | INSERT - connector | 1 | |
| 19 | 41-6427 | RECEPTACLE - connector | 1 | |
| 55-7829 | SCREW - receptacle | 4 | ||
| 55-7830 | FLATWASHER | 4 | ||
| 55-7750 | LOCKWASHER | 4 | ||
| 55-7749 | NUT | 4 | ||
| 20 | 33-4080 | GASKET | 1 | |
| 21 | 33-3962 | FITTING - straight | 1 | |
| 51-691 | WASHER - sealing | 1 | ||
| 51-1124 | LOCKNUT | 1 | ||
| 22 | 41-6428 | CABLE - outlet, calix | 1 | |
| 23 | 51-893 | BUSHING - cable | 1 | |
| 41-5619 | WASHER - sealing | 1 | ||
| 51-1125 | LOCKNUT | 1 | ||
| 24 | 51-894 | BUSHING - cable | 3 | |
| 51-691 | WASHER - sealing | 3 | ||
| 51-1124 | LOCKNUT | 3 | ||
| 25 | 51-169 | BUSHING - cable | 1 | |
| 51-895 | WASHER - sealing | 1 | ||
| 51-170 | LOCKNUT | 1 | ||
| 26 | 51-104 | SCREW - ground | 1 | |
| 55-7378 | LOCKWASHER - internal tooth | 1 | ||
| 51-106 | FLATWASHER | 2 | ||
| 51-105 | NUT | 2 | ||
| 27 | 41-6429 | CONNECTOR (5-pin) | 1 | |
| 28 | 41-6430 | CONNECTOR (3-pin) | 1 | |
| 29 | 41-6431 | CONNECTOR (2-pin) | 2 | |
| 30 | 41-661 | CONNECTOR - inline (14 terminal) | 1 | |
| 31 | 41-3423 | CONNECTOR - inline (10 terminal) | 1 | |
| 32 | 92-3961 | INSULATION | 1 | |
| 33 | 92-4531 | INSULATION | 1 | |
| 34 | 92-4532 | STRIP - neoprene | A/R | |
| 35 | 33-2420 | STRIP - neoprene | A/R | |
| 36 | 99-1949 | NAMEPLATE - 230V | 1 |
