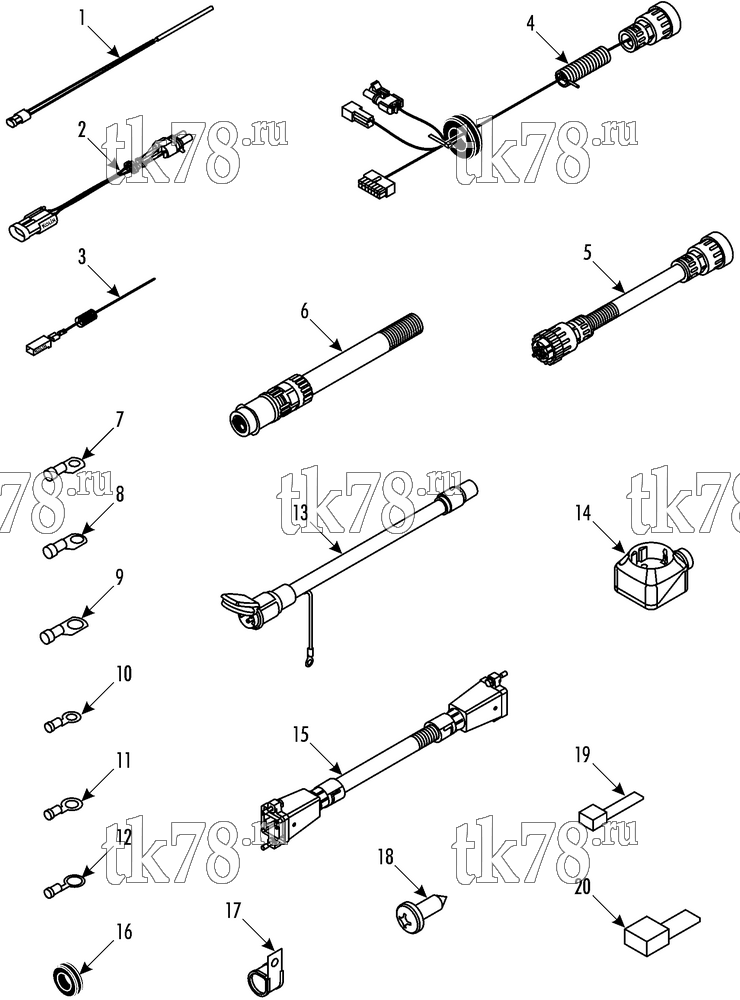

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема LOW & HIGH VOLTAGE - AFM – 210A8
Обновление от: 1/4/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4335 | SENSOR - temperature (800036) | 1 | |
| 2 | 41-7133 | CABLE - extension (800036) | 1 | |
| 3 | 41-7134 | CONNECTION - D+ (800036) | 1 | |
| 4 | 41-7135 | HARNESS - low voltage, cabin (800036) | 1 | |
| 33-2110 | GROMMET (800036) | 1 | ||
| 5 | 41-7136 | CONNECTION - low voltage, chassis (800037) | 1 | |
| 6 | 41-6442 | CONNECTION - battery (8000037) | 1 | |
| 7 | 44-2793 | TERMINAL (800037) | 2 | |
| 8 | 44-9995 | TERMINAL (800037) | 2 | |
| 9 | 44-5089 | TERMINAL - ring (yellow, 3/8) | 2 | |
| 10 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | |
| 11 | 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 1 | |
| 12 | 44-2786 | TERMINAL (800037) | 1 | |
| 13 | 41-7137 | CABLE - inlet, 250V, cabin (800038) | 1 | |
| 14 | 41-7138 | SOCKET - 250V (800038) | 1 | |
| 15 | 41-6860 | CONNECTION - high voltage, chassis (800032) | 1 | |
| 16 | 33-549 | GROMMET (800032) | 1 | |
| 17 | 55-570 | CLAMP (800032) | 8 | |
| 18 | 51-901 | SCREW (800032) | 8 | |
| 19 | 55-2330 | BANDWRAP (800032) | A/R | |
| 20 | 55-2331 | BANDWRAP (800032) | A/R |
