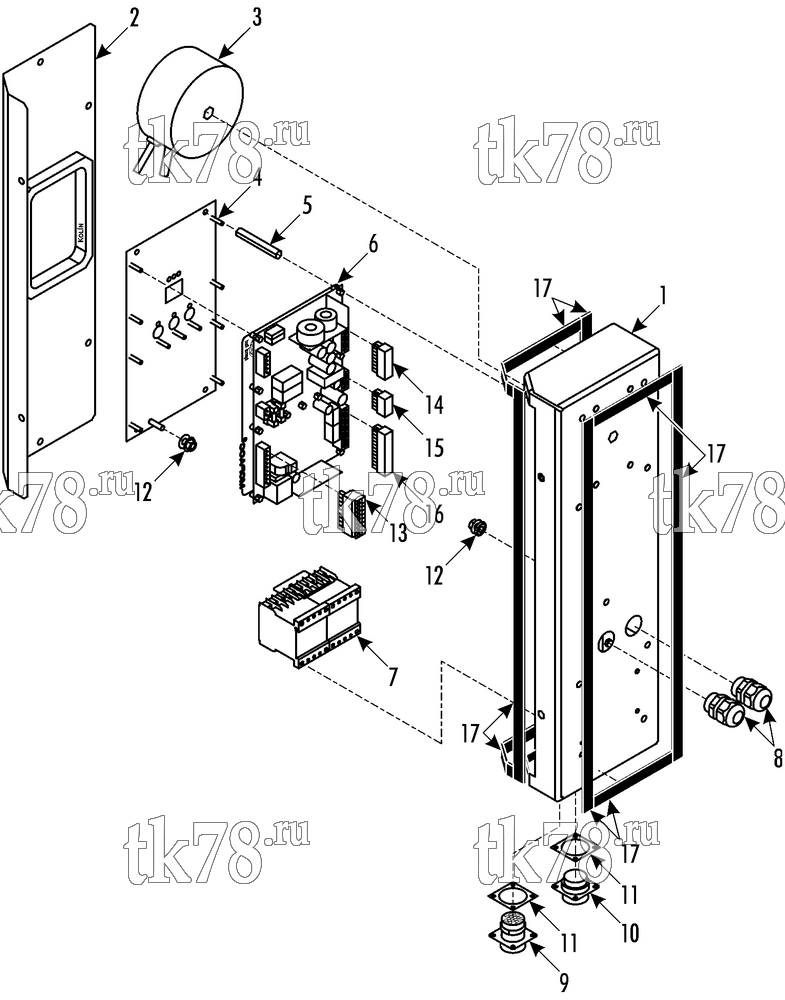

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема ELECTRO BOX - CCU – 207G9
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7385 | BOX | 1 | |
| 51-190 | NUT - captive | 6 | ||
| 51-888 | STUD - self-clinching (M3) | 4 | ||
| 51-1270 | STUD - self-clinching (M5) | 4 | ||
| 55-6994 | SCREW - box | 4 | ||
| 55-5970 | WASHER | 4 | ||
| 2 | 98-7386 | COVER - box | 1 | |
| 55-7409 | SCREW - cover | 6 | ||
| 51-130 | LOCKWASHER | 6 | ||
| 3 | 41-6053 | TRANSFORMER - speed | 1 | |
| 55-7354 | NUT - transformer | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 4 | 92-5454 | WALL - board control | 1 | |
| 55-8851 | SCREW - wall | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 5 | 92-5455 | POST | 4 | |
| 6 | 41-6046 | BOARD - control | 1 | |
| 7 | 41-6048 | CONTACTORS - mini | 1 | |
| 55-4417 | NUT - contactors | 4 | ||
| 55-8987 | LOCKWASHER | 4 | ||
| 8 | 51-893 | BUSHING - cable | 2 | |
| 51-1125 | LOCKNUT | 2 | ||
| 9 | 304-2642 | RECEPTACLE | 1 | |
| 10 | 44-8783 | RECEPTACLE | 1 | |
| 55-3035 | RIVET - receptacle | 8 | ||
| 11 | 92-4528 | WASHER - receptacle | 2 | |
| 12 | 51-821 | NUT - ground | 2 | |
| 51-822 | FLATWASHER | 4 | ||
| 55-7370 | LOCKWASHER | 2 | ||
| 13 | 41-6059 | CONNECTOR (9-pin) | 1 | |
| 14 | 41-6060 | PLUG - inline (18 term) | 1 | |
| 15 | 41-3423 | CONNECTOR - inline (10 term) | 1 | |
| 16 | 41-656 | CONNECTOR - inline (24 term) | 1 | |
| 17 | 33-3540 | STRIP - neoprene | A/R |
