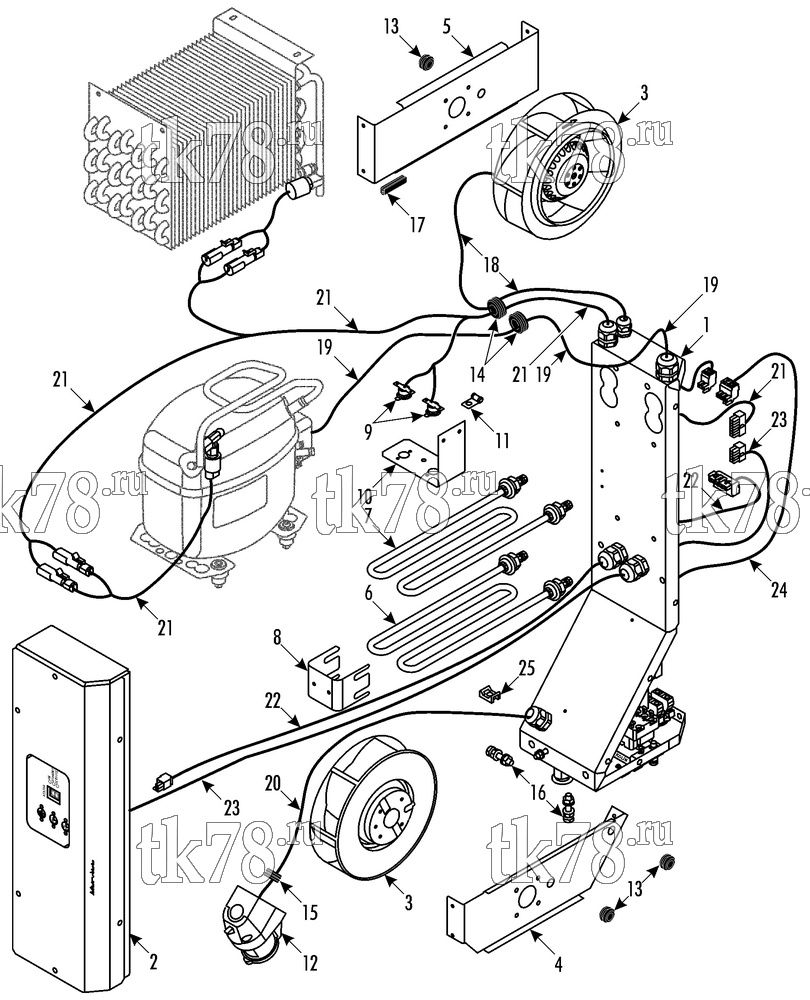

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема ELECTRICAL COMPONENTS - CCU – 207G7
Обновление от: 12/30/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - electro (see 207G8) | 1 | |
| 2 | NSS | BOX - electro (see 207G9) | 1 | |
| 3 | 78-1412 | BLOWER | 2 | |
| 55-7862 | SCREW - blower | 8 | ||
| 55-7861 | LOCKWASHER | 8 | ||
| 55-7368 | FLATWASHER | 8 | ||
| 4 | 92-3962 | BRACKET - blower | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 5 | 92-3963 | BRACKET - blower | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 6 | 41-6432 | HEATER (1200 W) | 1 | |
| 7 | 41-6433 | HEATER (600 W) | 1 | |
| 8 | 92-3964 | BRACKET - heater | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 9 | 41-4773 | SWITCH - temperature | 2 | |
| 55-3010 | RIVET - switch | 4 | ||
| 10 | 92-3965 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 11 | 55-5294 | CLAMP | 1 | |
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 12 | 41-6075 | CONNECTOR - power | 1 | |
| 55-3005 | SCREW - connector | 2 | ||
| 13 | 83-257 | GROMMET (0.375 id) | 3 | |
| 14 | 33-4097 | GROMMET (0.625 id) | 2 | |
| 15 | 33-573 | GROMMET (0.312 id) | 1 | |
| 16 | 51-104 | SCREW - ground | 2 | |
| 55-7378 | LOCKWASHER - internal tooth | 2 | ||
| 51-106 | FLATWASHER | 4 | ||
| 51-105 | NUT | 4 | ||
| 17 | 92-3279 | EXTRUSION - rubber | 1 | |
| 18 | 41-7126 | CABLE - CFM | 1 | |
| 19 | 41-7127 | CABLE - compressor | 1 | |
| 41-6431 | CONNECTOR (2-pin) | 1 | ||
| 20 | 41-7128 | CABLE - XNET | 1 | |
| 21 | 41-7129 | HARNESS - low voltage control (for connectors see 115D14) | 1 | |
| 41-661 | CONNECTOR - inline (14 term) | 1 | ||
| 22 | 41-7130 | HARNESS - connection | 1 | |
| 41-3815 | CONNECTOR (2-pin) | 1 | ||
| 41-6429 | CONNECTOR (5-pin) | 1 | ||
| 23 | 41-7131 | HARNESS - low voltage connection | 1 | |
| 41-3423 | CONNECTOR - inline (10 term) | 1 | ||
| 24 | 41-7132 | WIRES - interface | 1 | |
| 41-6430 | CONNECTOR (3-pin) | 1 | ||
| 25 | 99-3281 | MOUNT - bandwrap | 6 | |
| 55-3010 | RIVET - mount | 6 |
