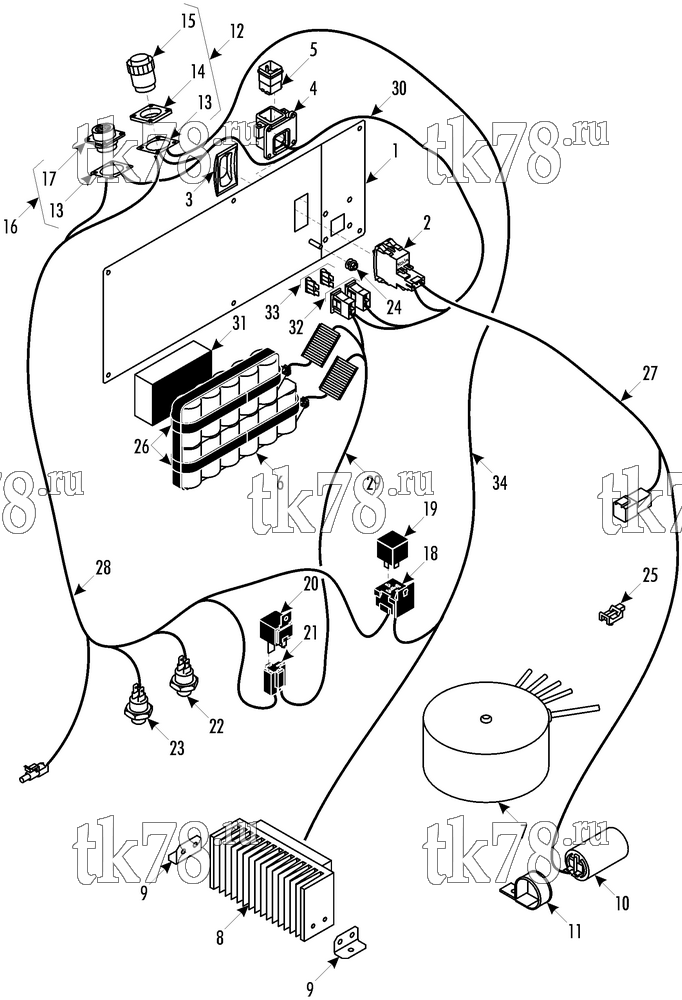

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема ELECTRICAL COMPONENTS - APU – 207G5
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-4527 | PLATE | 1 | |
| 51-1411 | STUD (M5) | 1 | ||
| 51-884 | SCREW - plate | 6 | ||
| 55-9565 | NUT - captive | 6 | ||
| 2 | 41-6412 | BREAKER - circuit | 1 | |
| 3 | 41-6413 | COVER - water splash | 1 | |
| 4 | 41-6414 | HOUSING - connector | 1 | |
| 55-7664 | SCREW - housing | 4 | ||
| 55-8310 | LOCKWASHER | 4 | ||
| 51-890 | FLATWASHER | 4 | ||
| 55-9866 | NUT - captive | 4 | ||
| 5 | 41-6415 | INSERT - connector | 1 | |
| 6 | 41-6051 | ACCUMULATOR | 1 | |
| 51-1412 | SCREW - wires to accumulator | 2 | ||
| 51-821 | NUT | 2 | ||
| 92-3942 | CONDUIT | A/R | ||
| 7 | 41-7118 | TRANSFORMER - charging | 1 | |
| 51-891 | SCREW - transformer | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 2 | ||
| 8 | 41-6054 | RECTIFIER - current | 1 | |
| 9 | 92-5451 | HOLDER - rectifier | 2 | |
| 55-7409 | SCREW - bracket | 3 | ||
| 55-7171 | LOCKWASHER | 5 | ||
| 55-7367 | NUT | 2 | ||
| 10 | 41-6055 | CAPACITOR | 1 | |
| 11 | 503-349 | CLAMP - capacitor | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 12 | 41-6416 | CONNECTOR - assembly | 1 | |
| 13 | 92-4528 | WASHER - rectangular | 2 | |
| 14 | 41-6417 | FLANGE - connector mount | 1 | |
| 15 | 41-6418 | PLUG - connector | 1 | |
| 55-3035 | RIVET - connector | 4 | ||
| 16 | 41-7119 | CONNECTOR - assembly | 1 | |
| 17 | 44-8783 | RECEPTACLE - connector | 1 | |
| 55-3035 | RIVET - connector | 4 | ||
| 18 | 44-5537 | SOCKET - relay | 1 | |
| 51-882 | SCREW - socket | 1 | ||
| 55-4665 | FLATWASHER | 1 | ||
| 55-9565 | NUT - captive | 1 | ||
| 19 | 44-9391 | RELAY - mini plug | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 20 | 41-478 | RELAY - mini plug | 1 | |
| 21 | 41-1325 | SOCKET - mini plug | 1 | |
| 22 | 41-7120 | SENSOR - temperature | 1 | |
| 23 | 41-6058 | SENSOR - temperature | 1 | |
| 33-4254 | GASKET | 2 | ||
| 24 | 51-821 | NUT - ground | 1 | |
| 51-822 | FLATWASHER | 2 | ||
| 55-7370 | LOCKWASHER - internal tooth | 1 | ||
| 25 | 99-3281 | MOUNT - bandwrap | 5 | |
| 55-5130 | RIVET - mount | 5 | ||
| 55-2330 | BANDWRAP | 5 | ||
| 26 | 33-3540 | STRIP - neoprene | A/R | |
| 27 | 41-7121 | HARNESS | 1 | |
| 28 | 41-7122 | HARNESS (for connectors see 115D14) | 1 | |
| 44-5763 | DIODE | 1 | ||
| 29 | 41-7123 | HARNESS (for connectors see 112D9) | 1 | |
| 30 | 41-7124 | WIRES | 1 | |
| 31 | 92-5452 | INSULATION | 1 | |
| 32 | 41-4965 | HOLDER - fuse | 2 | |
| 33 | 41-1292 | FUSE (5 amp) | 2 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 34 | 41-7125 | HARNESS | 1 |
