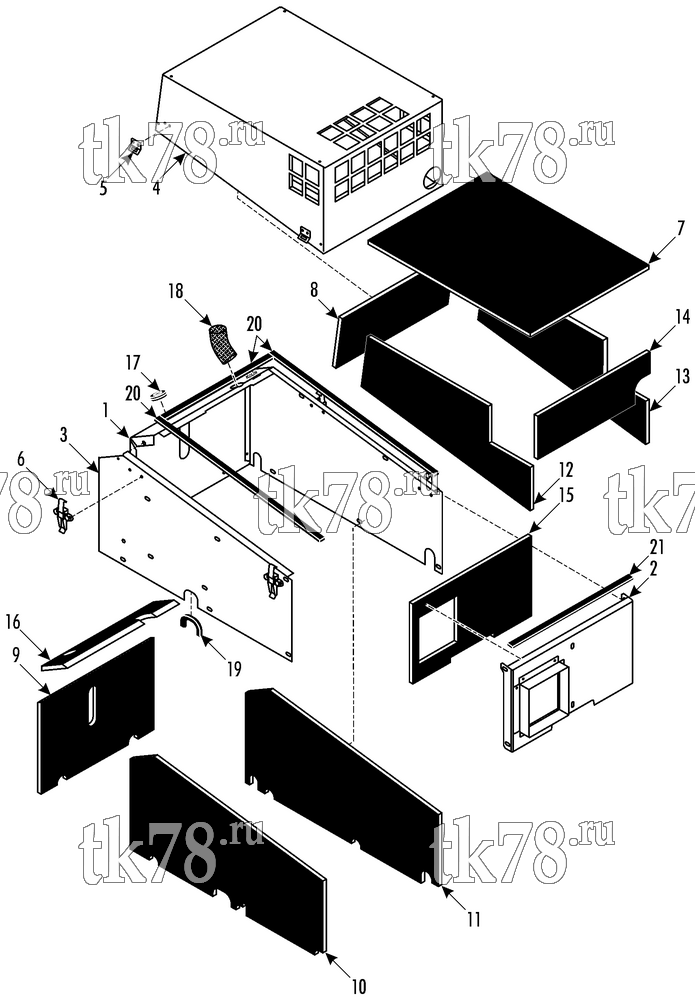

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема COVERS - ENGINE ASSEMBLY – 207G4
Обновление от: 12/30/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7023 | COVER - bottom | 1 | |
| 2 | 92-4490 | COVER - back | 1 | |
| 3 | 98-7384 | COVER - side | 1 | |
| 51-880 | SCREW - covers | 20 | ||
| 55-9139 | LOCKWASHER | 20 | ||
| 55-9501 | FLATWASHER | 20 | ||
| 51-190 | NUT - captive | 5 | ||
| 4 | 92-4491 | COVER - top | 1 | |
| 5 | 51-1121 | KEEPER - latch | 4 | |
| 55-2988 | RIVET - keeper | 8 | ||
| 6 | 51-1122 | LATCH - draw | 4 | |
| 55-3588 | RIVET - latch | 8 | ||
| 7 | 92-4492 | INSULATION | 1 | |
| 8 | 92-4493 | INSULATION | 1 | |
| 9 | 92-4495 | INSULATION | 1 | |
| 10 | 92-4496 | INSULATION | 1 | |
| 11 | 92-4497 | INSULATION | 1 | |
| 12 | 92-4498 | INSULATION | 1 | |
| 13 | 92-4499 | INSULATION | 1 | |
| 14 | 92-4500 | INSULATION | 1 | |
| 15 | 92-4501 | INSULATION | 1 | |
| 16 | 92-4503 | INSULATION | 1 | |
| 17 | 33-324 | GROMMET (0.688 id) | 1 | |
| 18 | 92-3942 | HOSE - air | A/R | |
| 19 | 92-3279 | EXTRUSION - rubber | A/R | |
| 20 | 33-2668 | STRIP - neoprene | A/R | |
| 21 | 99-4976 | STRIP - neoprene | A/R |
