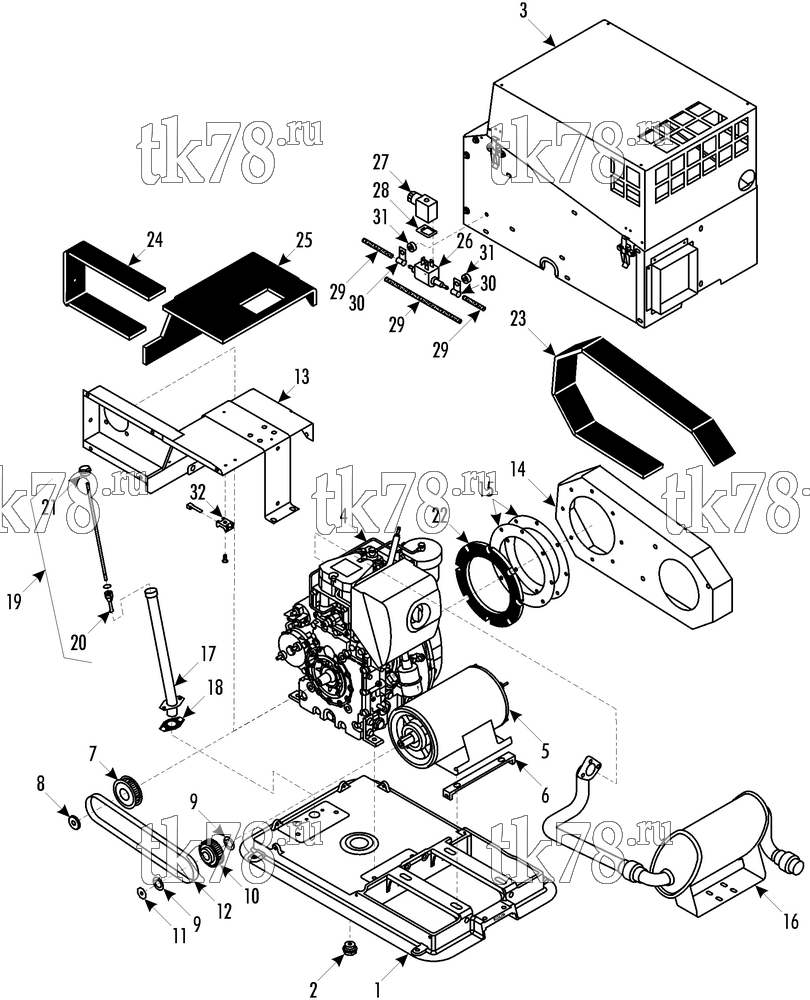

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема ENGINE ASSEMBLY - APU – 207G3
Обновление от: 12/30/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7024 | FRAME - main | 1 | |
| 2 | 51-876 | PLUG | 1 | |
| 3 | NSS | COVERS & INSULATION (see 207G4) | 1 | |
| 4 | 101-350 | ENGINE (see 194G4) | 1 | |
| 55-6215 | SCREW - engine | 4 | ||
| 55-7727 | LOCKWASHER | 4 | ||
| 5 | 41-6043 | ALTERNATOR | 1 | |
| 55-7004 | SCREW - alternator | 4 | ||
| 51-1408 | WASHER | 4 | ||
| 51-789 | NUT | 4 | ||
| 6 | 92-5449 | GUIDE | 2 | |
| 51-1409 | SCREW - guide | 4 | ||
| 7 | 77-2830 | PULLEY - engine | 1 | |
| 8 | 92-4504 | PLATE | 1 | |
| 55-5424 | SCREW - pulley | 1 | ||
| 9 | 92-3896 | SPACER | 2 | |
| 10 | 77-2797 | PULLEY - alternator | 1 | |
| 11 | 92-3897 | PLATE - alternator | 1 | |
| 55-4666 | SCREW - pulley | 1 | ||
| 12 | 78-1410 | BELT - engine to alternator | 1 | |
| 13 | 92-4505 | BARRIER | 1 | |
| 55-4998 | SCREW - barrier to engine | 4 | ||
| 55-6215 | SCREW - barrier to main frame | 4 | ||
| 55-7727 | LOCKWASHER | 8 | ||
| 55-7069 | FLATWASHER | 10 | ||
| 55-4621 | NUT | 2 | ||
| 51-118 | NUT - captive | 2 | ||
| 14 | 92-4506 | COVER | 1 | |
| 51-881 | BOLT - cover to engine, self-locking | 8 | ||
| 51-882 | SCREW - cover to barrier | 3 | ||
| 55-9139 | LOCKWASHER | 3 | ||
| 55-4665 | FLATWASHER | 3 | ||
| 51-190 | NUT - captive | 3 | ||
| 15 | 92-4507 | SPACER - cover to engine | 2 | |
| 16 | 13-305 | MUFFLER | 1 | |
| 55-4606 | SCREW - muffler to barrier | 4 | ||
| 55-7478 | LOCKWASHER | 4 | ||
| 51-1410 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 55-5424 | SCREW - muffler flange to engine | 3 | ||
| 55-7069 | FLATWASHER | 3 | ||
| 17 | 92-3902 | TUBE - oil (lower) | 1 | |
| 51-882 | SCREW - tube to frame | 2 | ||
| 55-9139 | LOCKWASHER | 2 | ||
| 55-4665 | FLATWASHER | 2 | ||
| 18 | 33-4253 | GASKET | 1 | |
| 19 | 92-5450 | DIPSTICK | 1 | |
| 20 | 92-4509 | PLUG - bottom | 1 | |
| 21 | 51-885 | PLUG - oil | 1 | |
| 33-566 | O-RING | 1 | ||
| 22 | 92-4511 | INSULATION | 1 | |
| 23 | 92-4512 | INSULATION | 1 | |
| 24 | 92-4513 | INSULATION | 1 | |
| 25 | 92-4514 | INSULATION | 1 | |
| 26 | 41-6411 | PUMP - fuel | 1 | |
| 27 | 41-6045 | CONNECTOR | 1 | |
| 28 | 33-3960 | GASKET | 1 | |
| 29 | 11-9030 | HOSE | A/R | |
| 30 | 55-2536 | CLAMP - hose | 2 | |
| 55-8720 | SCREW - clamp | 1 | ||
| 51-880 | SCREW - clamp | 1 | ||
| 55-9139 | LOCKWASHER | 2 | ||
| 55-4665 | FLATWASHER | 2 | ||
| 51-190 | NUT - captive | 1 | ||
| 31 | 92-4515 | SPACER | 2 | |
| 32 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-5130 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | A/R |
