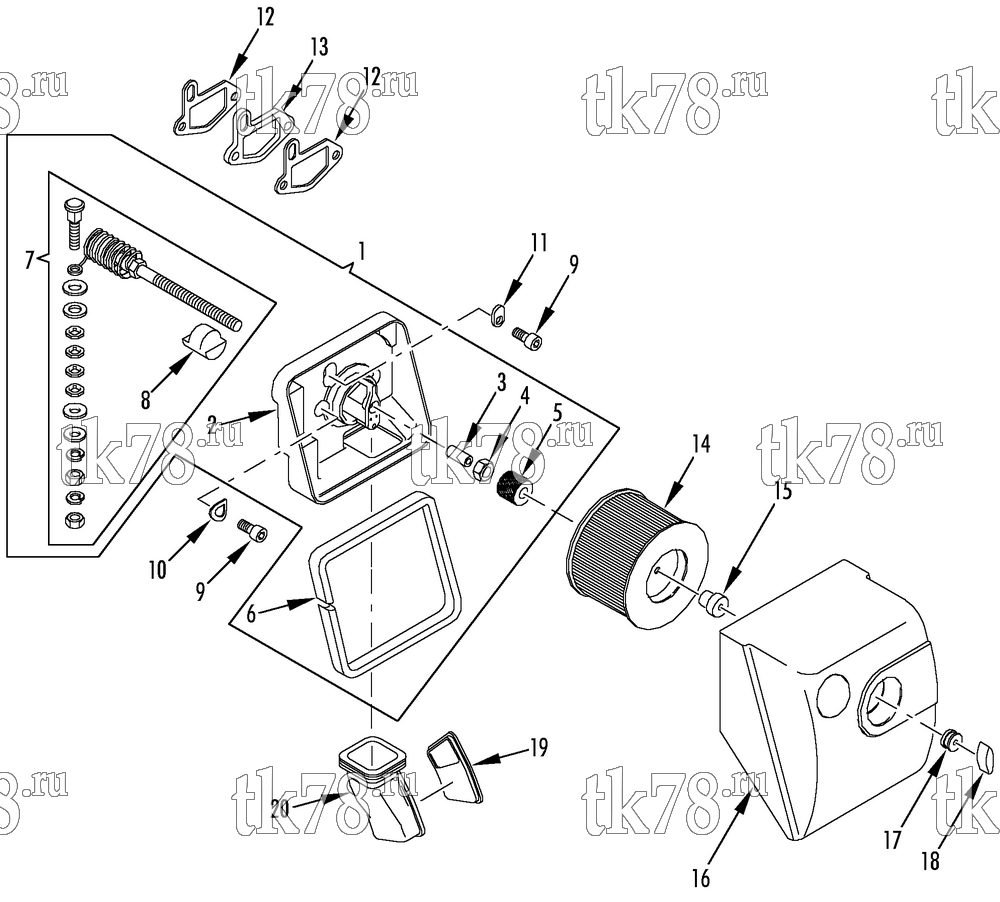

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема AIR FILTER GROUP – 200A3
Обновление от: 1/25/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-274 | AIR FILTER - assembly | 1 | |
| 2 | NSS | HOUSING | 1 | |
| 3 | 13-275 | SLEEVE | 1 | |
| 4 | 51-1056 | NUT | 1 | |
| 5 | 13-276 | SPACER | 1 | |
| 6 | 33-4075 | STRIP - sealing | 1 | |
| 7 | 41-6385 | HEATER | 1 | |
| 8 | 13-277 | PLUG | 1 | |
| 9 | 51-1020 | SCREW | 3 | |
| 10 | 51-1059 | WASHER | 2 | |
| 11 | 51-1096 | WASHER | 1 | |
| 12 | 33-4076 | GASKET - air filter | 2 | |
| 13 | 13-278 | FLANGE - insulating | 1 | |
| 14 | 13-279 | FILTER | 1 | |
| 15 | 51-1118 | NUT | 1 | |
| 16 | 13-280 | COVER - air filter | 1 | |
| 17 | 51-1097 | NUT - wing | 1 | |
| 18 | 13-281 | SLEEVE | 1 | |
| 19 | 13-282 | COVER - duct | 1 | |
| 20 | 13-283 | DUCT - air | 1 |
