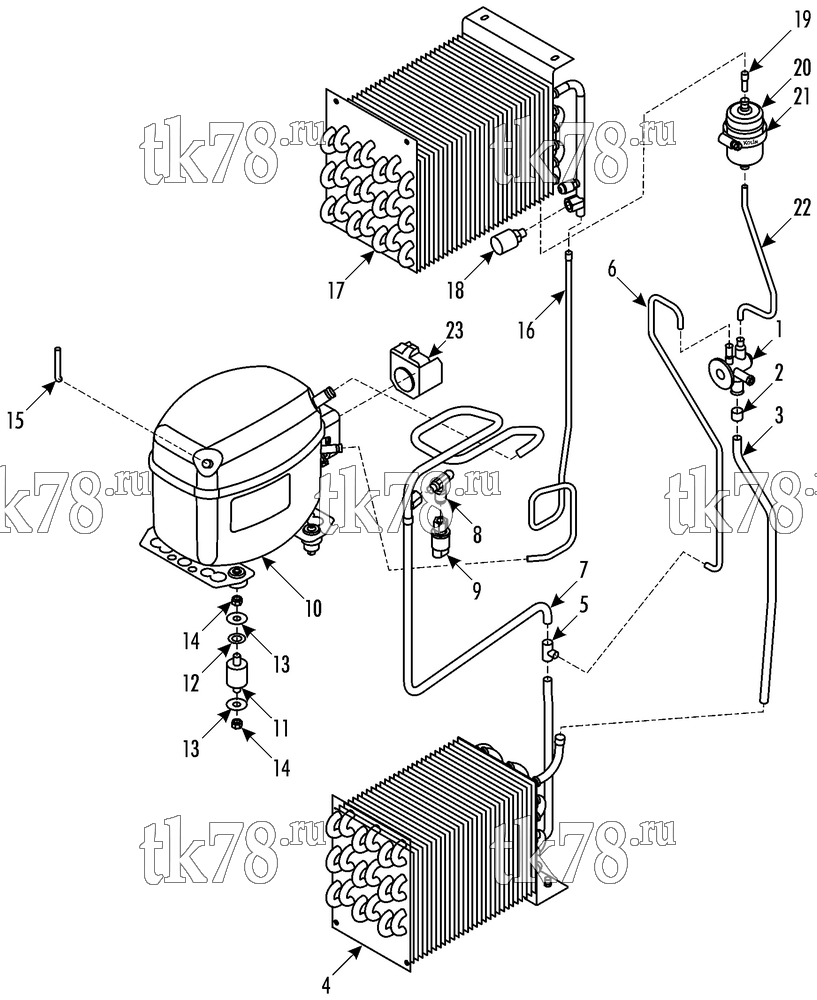

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема REFRIGERATION COMPONENTS - CCU – 198F9
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-2419 | VALVE - expansion | 1 | |
| 2 | 55-3247 | BUSHING | 1 | |
| 3 | 61-2735 | TUBE | 1 | |
| 4 | 67-2015 | COIL | 1 | |
| 55-7340 | SCREW - coil | 4 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 5 | 55-6402 | TEE | 1 | |
| 6 | 61-2736 | TUBE | 1 | |
| 7 | 61-2737 | TUBE - assembly | 1 | |
| 66-8327 | FITTING - saddle | 1 | ||
| 8 | 66-5859 | VALVE - assembly | 1 | |
| 9 | 41-6064 | SWITCH - lpco | 1 | |
| 10 | 102-830 | COMPRESSOR - hermetic | 1 | |
| 11 | 92-3957 | MOUNT - vibration | 4 | |
| 12 | 55-6988 | FLATWASHER | 4 | |
| 13 | 55-8893 | FLATWASHER | 8 | |
| 14 | 55-7034 | NUT | 8 | |
| 15 | 61-2738 | TUBE - process | 1 | |
| 16 | 61-2739 | TUBE | 1 | |
| 17 | 67-2016 | COIL | 1 | |
| 66-8327 | FITTING - saddle | 1 | ||
| 66-9842 | VALVE | 1 | ||
| 55-7340 | SCREW - coil | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 18 | 41-1501 | SWITCH - hpco | 1 | |
| 19 | 61-2740 | TUBE | 1 | |
| 20 | 61-2418 | DEHYDRATOR | 1 | |
| 21 | 55-3402 | CLAMP - dehydrator | 1 | |
| 22 | 61-2741 | TUBE | 1 | |
| 23 | 92-4526 | CAP - protective | 1 |
