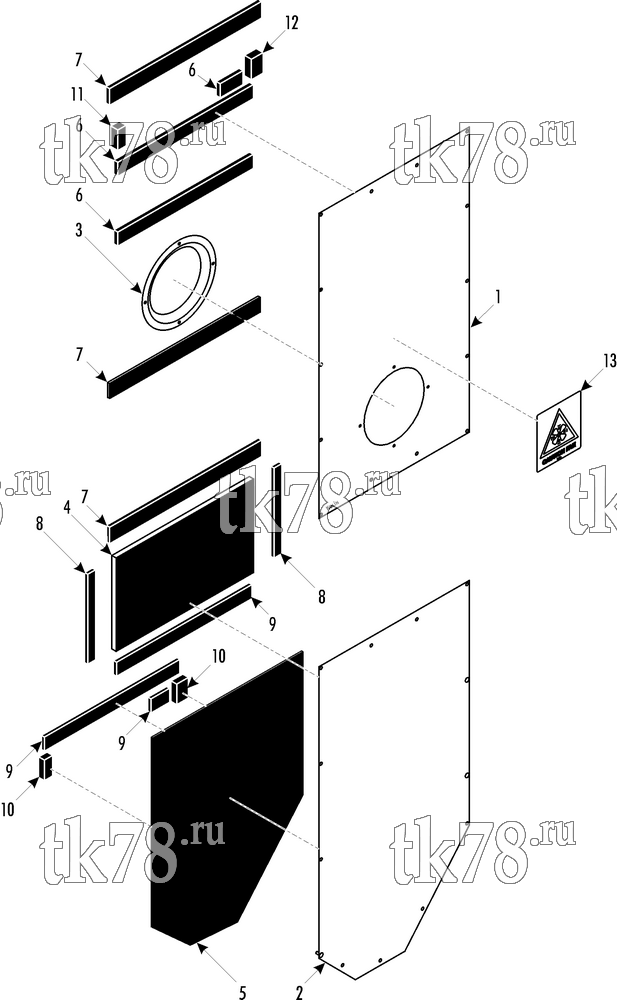

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема COVER - CCU – 198F8
Обновление от: 12/30/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6877 | COVER | 1 | |
| 2 | 98-6878 | COVER | 1 | |
| 55-9166 | SCREW | 27 | ||
| 55-7089 | FLATWASHER | 27 | ||
| 3 | 92-3944 | RING - inlet | 1 | |
| 55-5130 | RIVET - ring | 4 | ||
| 4 | 92-3953 | INSULATION | 1 | |
| 5 | 92-3954 | INSULATION | 1 | |
| 6 | 99-5966 | STRIP - neoprene | A/R | |
| 7 | 33-2420 | STRIP - neoprene | A/R | |
| 8 | 99-1908 | STRIP - neoprene | A/R | |
| 9 | 99-6968 | STRIP - neoprene | A/R | |
| 10 | 99-7245 | STRIP - neoprene | A/R | |
| 11 | 91-4863 | STRIP - neoprene | A/R | |
| 12 | 99-8041 | STRIP - neoprene | A/R | |
| 13 | 99-3064 | NAMEPLATE - Caution, Fan | 1 |
