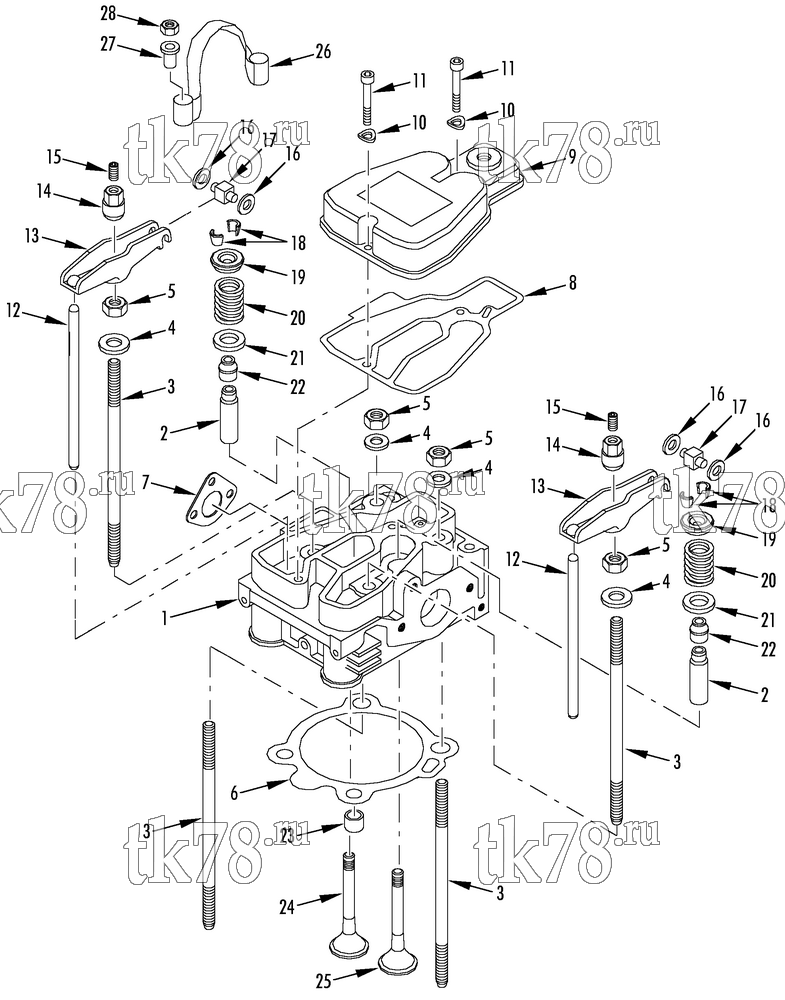

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема CYLINDER HEAD – 197G7
Обновление от: 1/25/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-865 | HEAD - cylinder | 1 | |
| 2 | 13-154 | GUIDE - valve | 2 | |
| 3 | 51-1028 | STUD - cylinder head | 4 | |
| 4 | 51-1030 | WASHER | 4 | |
| 5 | 51-1031 | NUT | 4 | |
| 6 | 33-4051 | GASKET - cylinder head (0.3 mm) | A/R | |
| 33-4052 | GASKET - cylinder head (0.4 mm) | A/R | ||
| 33-4053 | GASKET - cylinder head (0.5 mm) | A/R | ||
| 33-4054 | GASKET - cylinder head (0.6 mm) | A/R | ||
| 33-4055 | GASKET - cylinder head (0.7 mm) | A/R | ||
| 33-4056 | GASKET - cylinder head (0.8 mm) | A/R | ||
| 33-4057 | GASKET - cylinder head (0.9 mm) | A/R | ||
| 33-4058 | GASKET - cylinder head (1.0 mm) | A/R | ||
| 7 | 33-4059 | GASKET | 1 | |
| 8 | 33-4050 | GASKET - rocker arm | 1 | |
| 9 | 13-180 | COVER - valve | 1 | |
| 10 | 51-1038 | LOCKWASHER | 2 | |
| 11 | 51-1039 | SCREW | 2 | |
| 12 | 13-155 | ROD - push | 2 | |
| 13 | 13-160 | ARM - rocker | 2 | |
| 14 | 51-1037 | NUT - rocker arm | 2 | |
| 15 | 51-1029 | SCREW | 2 | |
| 16 | 13-177 | DISK (1.35 mm) | A/R | |
| 13-178 | DISK (1.2 mm) | A/R | ||
| 17 | 13-179 | COLLET | 2 | |
| 18 | 13-159 | LOCK - valve | 2 | |
| 19 | 13-158 | RETAINER - spring | 2 | |
| 20 | 13-157 | SPRING - valve | 2 | |
| 21 | 13-156 | SEAT - spring | 2 | |
| 22 | 33-4048 | SEAL - valve | 2 | |
| 23 | 13-174 | SEAL | 2 | |
| 24 | 13-176 | VALVE - exhaust | 1 | |
| 25 | 13-175 | VALVE - intake | 1 | |
| 26 | 13-181 | STRAP - lifting | 1 | |
| 27 | 51-1041 | SPACER | 2 | |
| 28 | 51-1040 | NUT | 2 | |
| 30-271 | KIT - cylinder head gasket set | 1 |
