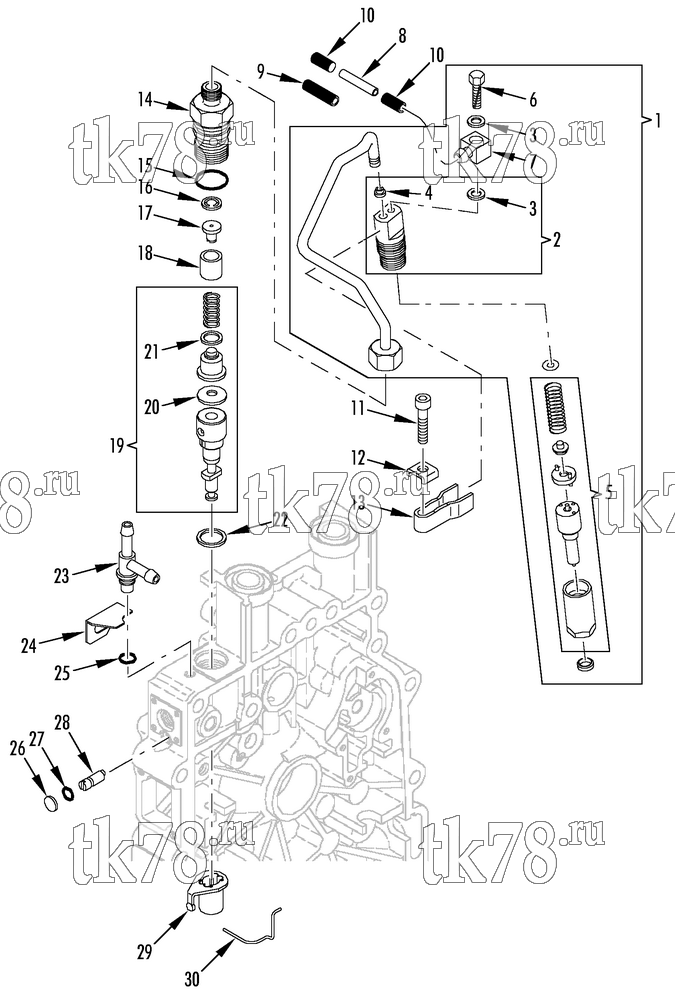

Установкa Thermo King MOPACC - HATZ Engine (07/2005 & After) схема INJECTION PUMP & NOZZLE – 197G0
Обновление от: 1/25/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-224 | INJECTOR ASSEMBLY - nozzle | 1 | |
| 2 | 13-225 | NOZZLE | 1 | |
| 3 | 33-4066 | GASKET - joint | 2 | |
| 4 | 33-4064 | CONE - sealing | 1 | |
| 5 | 13-237 | PARTS SET - nozzle | 1 | |
| 6 | 51-1069 | SCREW | 1 | |
| 7 | 13-238 | NIPPLE | 1 | |
| 8 | 13-239 | HOSE | 1 | |
| 9 | 13-245 | HOSE - insulating | 1 | |
| 10 | 13-246 | HOSE - insulating | 2 | |
| 11 | 51-1068 | SCREW | 1 | |
| 12 | 13-301 | CLAMP | 1 | |
| 13 | 13-236 | YOKE - retainer | 1 | |
| 14 | 13-235 | HOLDER - valve | 1 | |
| 15 | 33-4065 | O-RING | 1 | |
| 16 | 13-234 | PLATE - valve | 1 | |
| 17 | 13-233 | PIECE | 1 | |
| 18 | 13-232 | BUSHING | 1 | |
| 19 | 13-226 | PUMP - injection | 1 | |
| 20 | 13-302 | WASHER | 1 | |
| 21 | 13-303 | WASHER | 1 | |
| 22 | 13-227 | SHIM (0.2 mm) | A/R | |
| 13-228 | SHIM (0.3 mm) | A/R | ||
| 13-229 | SHIM (0.4 mm) | A/R | ||
| 13-230 | SHIM (0.5 mm) | A/R | ||
| 13-231 | SHIM (0.6 mm) | A/R | ||
| 23 | 13-240 | NIPPLE | 1 | |
| 24 | 13-242 | SUPPORT | 1 | |
| 25 | 33-4067 | O-RING | 1 | |
| 26 | 13-243 | DISC | 1 | |
| 27 | 33-4068 | O-RING | 1 | |
| 28 | 13-244 | PIN - eccentric | 1 | |
| 29 | 13-304 | PAWL | 1 | |
| 30 | 13-241 | SPRING | 1 |
