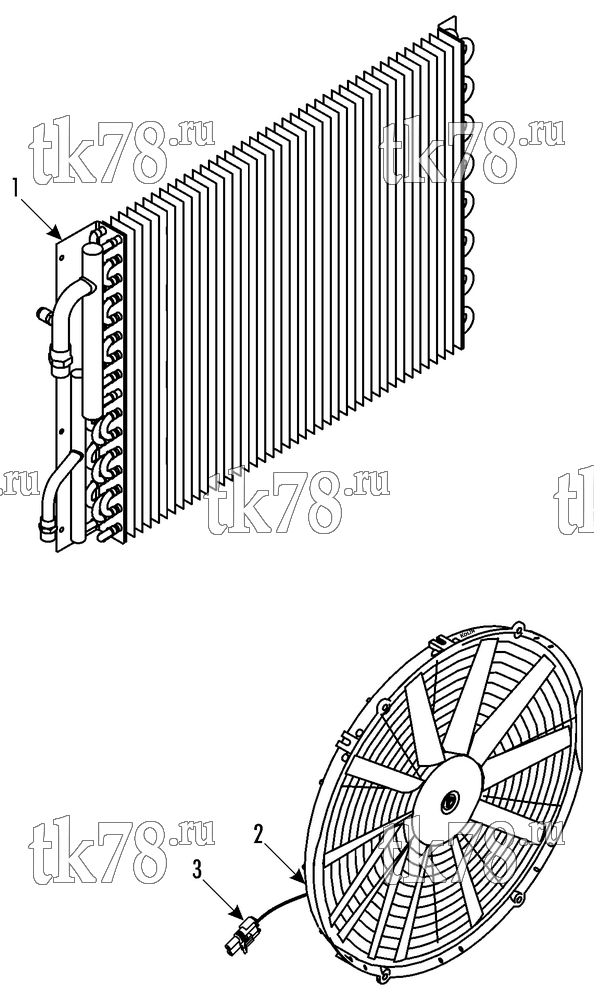

Установкa Thermo King MFB P-Horizontal схема CONDENSER KIT (700472, 700501) – 211H9
Обновление от: 7/13/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2227 | COIL - condenser | 1 | |
| 55-9705 | BODY - valve | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 2 | 41-5079 | FAN | 1 | |
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 |
