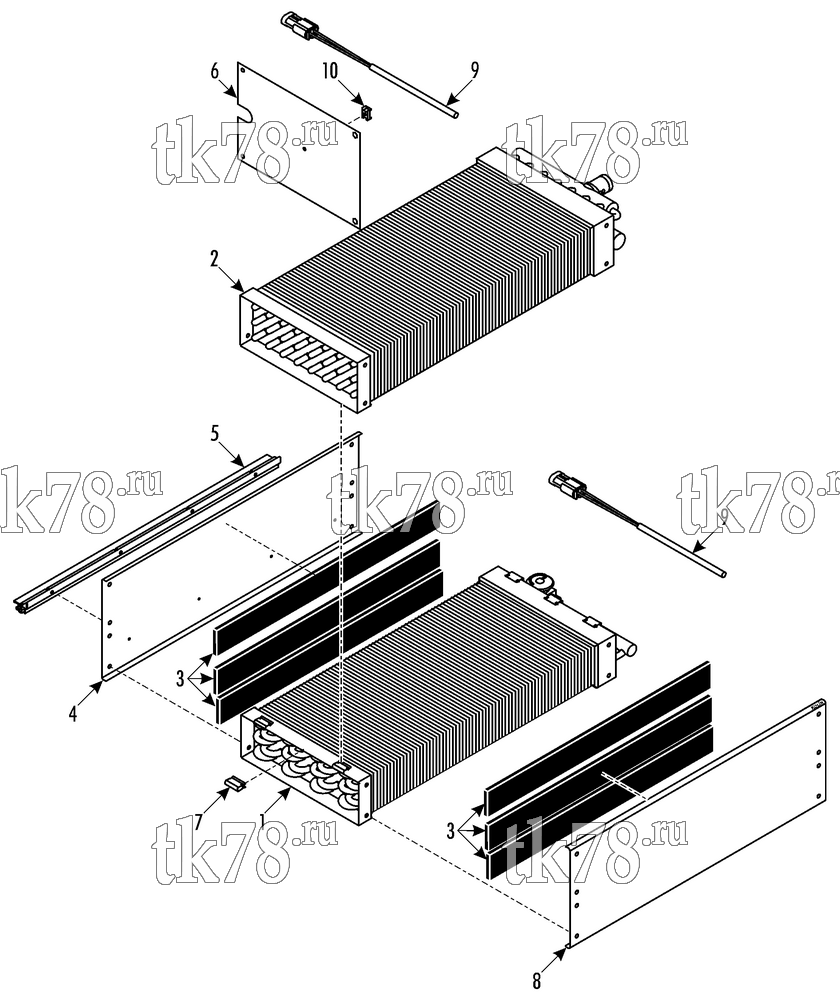

Установкa Thermo King MFB L схема COOL/HEAT MODULE - R134a (007115) – 215E5
Обновление от: 7/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1888 | COIL - evaporator | 1 | |
| 61-2546 | VALVE - expansion | 1 | ||
| 33-3932 | O-RING | 1 | ||
| 33-3933 | O-RING | 1 | ||
| 2 | 67-1884 | COIL - heater | 1 | |
| 3 | 33-3671 | STRIP - sealing (1.5 wide x 15.75 in) | 6 | |
| 4 | 92-2562 | COVER | 1 | |
| 55-3101 | RIVET - cover | 8 | ||
| 5 | 92-2560 | PROFILE | 1 | |
| 51-256 | RIVET - profile | 4 | ||
| 6 | 92-5774 | COVER - side | 1 | |
| 51-258 | SCREW - cover | 2 | ||
| 7 | 51-262 | CLAMP | 6 | |
| 8 | 92-2550 | COVER | 1 | |
| 55-3101 | RIVET - cover | 8 | ||
| 9 | 41-4157 | SENSOR - temperature | 2 | |
| 10 | 99-3427 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2332 | BANDWRAP | 1 |
