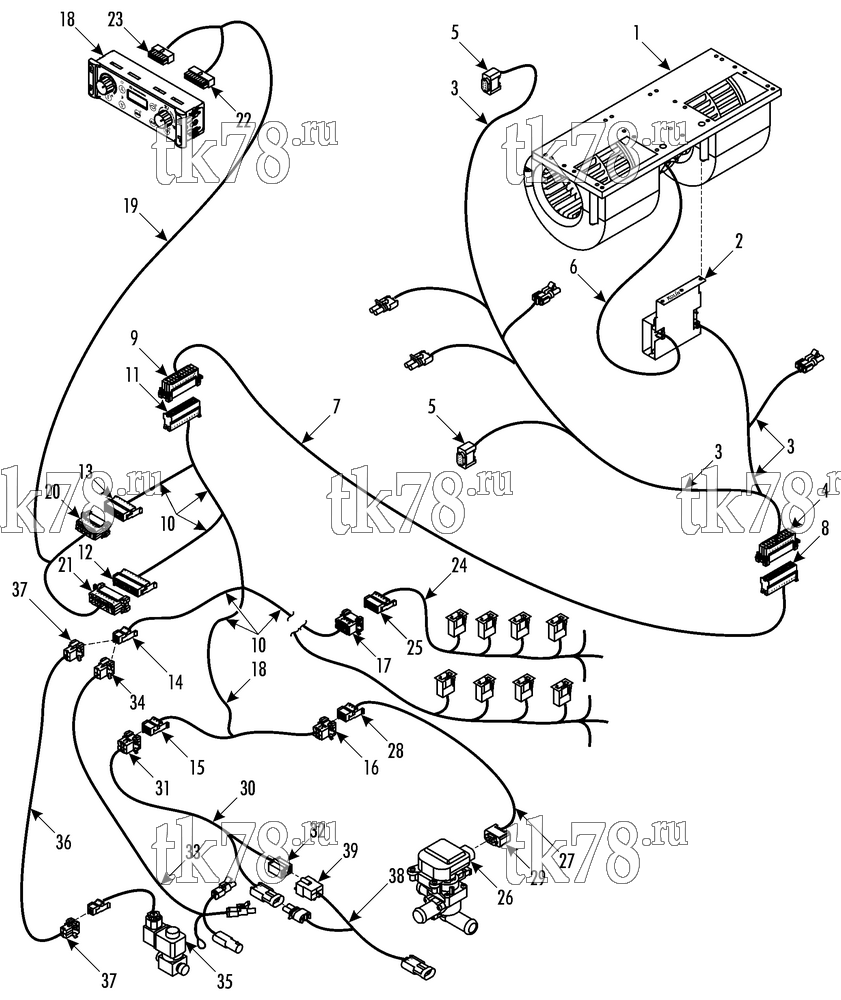

Установкa Thermo King MFB L схема ELECTRICAL COMPONENTS - FrontAIRE II – 211H0
Обновление от: 6/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1395 | BLOWER (24V, module 007079) | 1 | |
| 78-1396 | BLOWER (24V, module 007080) | 1 | ||
| 2 | 41-5191 | CONTROLLER - speed | 1 | |
| 55-5130 | RIVET - controller | 2 | ||
| 3 | 41-7331 | HARNESS - frontbox (for connectors see 115D14) | 1 | |
| 4 | 41-2765 | CONNECTOR (22-pin, male) | 1 | |
| 5 | 41-3288 | CONNECTOR (6-pin, female) | 2 | |
| 6 | 41-5192 | HARNESS - blower | 1 | |
| 7 | 41-7332 | HARNESS - control panel to frontbox (5 m) | 1 | |
| 41-7333 | HARNESS - control panel to frontbox (1 m) | 1 | ||
| 8 | 41-3858 | CONNECTOR (22-pin, female) | 1 | |
| 9 | 41-2765 | CONNECTOR (22-pin, male) | 1 | |
| 10 | 41-7334 | HARNESS - control (only for standalone MFB) | 1 | |
| 41-7336 | HARNESS - control (not for standalone MFB) | 1 | ||
| 41-7335 | HARNESS - control (w/ fuses, only for standalone MFB) | 1 | ||
| 41-7337 | HARNESS - control (w/ fuses, not for standalone MFB) | 1 | ||
| 11 | 41-3858 | CONNECTOR (22-pin, female) | 1 | |
| 12 | 41-3856 | CONNNECTOR (18-pin, female) | 1 | |
| 13 | 41-5752 | CONNECTOR (14-pin, female) | 1 | |
| 14 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 15 | 41-2767 | CONNECTOR (6-pin, female, only for standalone MFB) | 1 | |
| 16 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 17 | 41-4054 | CONNECTOR (10-pin, male, only for harness w/o fuses) | 1 | |
| 44-5537 | SOCKET - relay (only for standalone MFB) | 4 | ||
| 41-4965 | HOLDER - fuse (only for 700685 qty4, 700686 qty 2) | A/R | ||
| 41-1292 | FUSE (5 amp) | 1 | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 18 | 45-2129 | PANEL - driver (FrontAIRE II, see 215A1) | 1 | |
| 19 | 41-7342 | HARNESS - control panel to driver panel (6 m, only for standalone MFB) | 1 | |
| 41-7338 | HARNESS - control panel to driver panel (6 m, not for standalone MFB) | 1 | ||
| 41-7343 | HARNESS - control panel to driver panel (5 m, only for standalone MFB) | 1 | ||
| 41-7339 | HARNESS - control panel to driver panel (5 m, not for standalone MFB) | 1 | ||
| 41-7344 | HARNESS - control panel to driver panel (2 m, only for standalone MFB) | 1 | ||
| 41-7340 | HARNESS - control panel to driver panel (2 m, not for standalone MFB) | 1 | ||
| 41-7345 | HARNESS - control panel to driver panel (1.2 m, only for standalone MFB) | 1 | ||
| 41-7341 | HARNESS - control panel to driver panel (1.2 m, not for standalone MFB) | 1 | ||
| 20 | 41-5749 | CONNECTOR (14-pin, male) | 1 | |
| 21 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 22 | 41-650 | CONNECTOR (18 term, male) | 1 | |
| 23 | 41-661 | CONNECTOR (14 term, male) | 1 | |
| 24 | 41-7346 | HARNESS - fuse | 1 | |
| 25 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 41-4965 | HOLDER - fuse | 4 | ||
| 26 | 41-5649 | VALVE - water (3/2 way) | 1 | |
| 41-6592 | VALVE - water (2 way) | 1 | ||
| 27 | 41-7347 | HARNESS - control panel to water valve (6 m) | 1 | |
| 41-5084 | HARNESS - control panel to water valve (5 m) | 1 | ||
| 41-5085 | HARNESS - control panel to water valve (1 m) | 1 | ||
| 28 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 29 | 41-3288 | CONNECTOR (6-pin, female) | 1 | |
| 30 | 41-5771 | HARNESS - control panel to condenser (6.3 m, only for standalone MFB, for connectors see 115D14) | 1 | |
| 41-5089 | HARNESS - control panel to condenser (5 m, only for standalone MFB, for connectors see 115D14) | 1 | ||
| 41-5090 | HARNESS - control panel to condenser (3 m, only for standalone MFB, for connectors see 115D14) | 1 | ||
| 31 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 32 | 44-5814 | CONNECTOR (4-pin, female) | 1 | |
| 33 | 41-5772 | HARNESS - control panel to compressor (17.5 m, only for standalone MFB, for connectors see 115D14) | 1 | |
| 41-5091 | HARNESS - control panel to compressor (5 m, only for standalone MFB, for connectors see 115D14) | 1 | ||
| 41-5092 | HARNESS - control panel to compressor (15 m, only for standalone MFB, for connectors see 115D14) | 1 | ||
| 34 | 41-2770 | CONNECTOR (4 term, male) | 1 | |
| 35 | 41-6348 | VALVE - solenoid | 1 | |
| 36 | 41-7348 | HARNESS - control panel to solenoid (6 m, only for cool/heat MFB) | 1 | |
| 41-5093 | HARNESS - control panel to solenoid (5 m, only for cool/heat MFB) | 1 | ||
| 41-5094 | HARNESS - control panel to solenoid (1 m, only for cool/heat MFB) | 1 | ||
| 37 | 41-4949 | CONNECTOR (4-pin, male) | 2 | |
| 38 | 41-7349 | HARNESS - condenser reduction (only for standalone MFB, for connectors see 115D14) | 1 | |
| 41-5770 | HARNESS - condenser frontbox (only for standalone MFB, for connectors see 115D14) | 1 | ||
| 39 | 44-5827 | CONNECTOR (4-pin, male) | 1 | |
| 41-5657 | RELAY (for 700501 qty 2, for 700502 qty 4) | 4 | ||
| 44-9344 | FUSE (15 amp) | 1 | ||
|
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 44-9359 | FUSE (7.5 amp, only for standalone MFB with SB20) | 2 |
