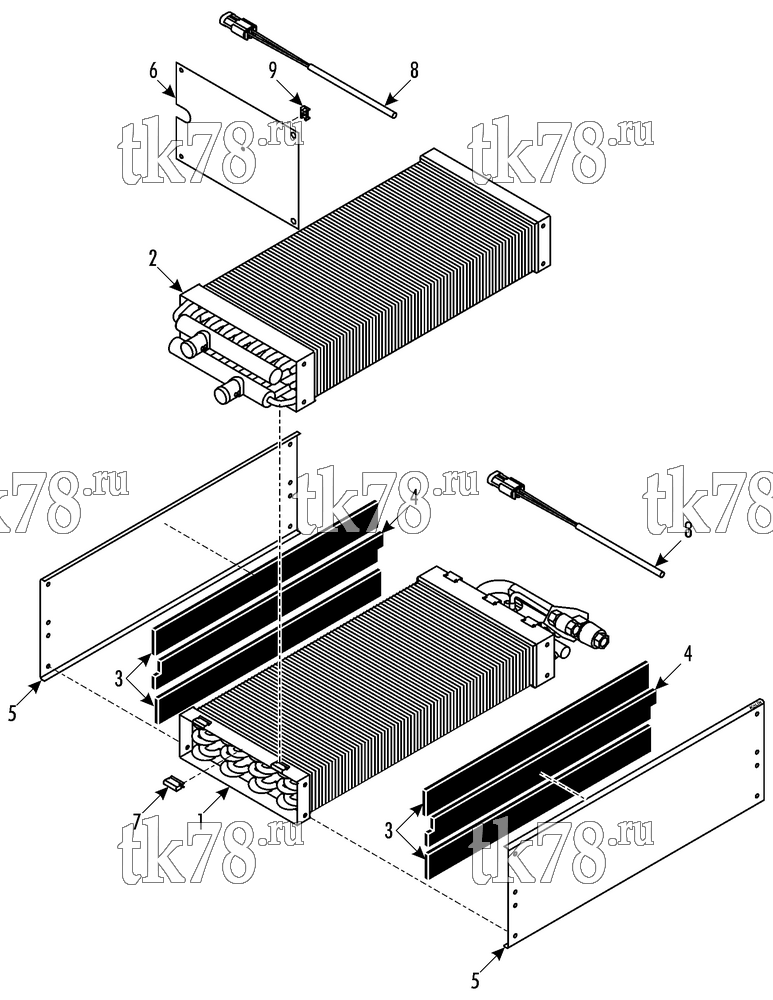

Установкa Thermo King MFB I-Vertical схема COOL/HEAT MODULE - R407C (007174, 007175) – 215B9
Обновление от: 7/24/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2226 | COIL - evaporator (for 007175 different position) | 1 | |
| 61-3577 | VALVE - expansion | 1 | ||
| 55-9976 | CLAMP - tube | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-7478 | LOCKWASHER | 1 | ||
| 55-4605 | SCREW | 1 | ||
| 2 | 67-1884 | COIL - heater (for 007175 different position) | 1 | |
| 3 | 33-3671 | STRIP - sealing (1.5 wide x 15.75 in) | 4 | |
| 4 | 33-3672 | STRIP - neoprene | 2 | |
| 5 | 92-2550 | COVER | 2 | |
| 51-257 | RIVET - cover | 16 | ||
| 6 | 92-5774 | COVER - blower | 1 | |
| 51-258 | SCREW - cover | 2 | ||
| 7 | 51-262 | CLAMP | 6 | |
| 8 | 41-4157 | SENSOR - temperature | 2 | |
| 9 | 99-3427 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2332 | BANDWRAP | 1 |
