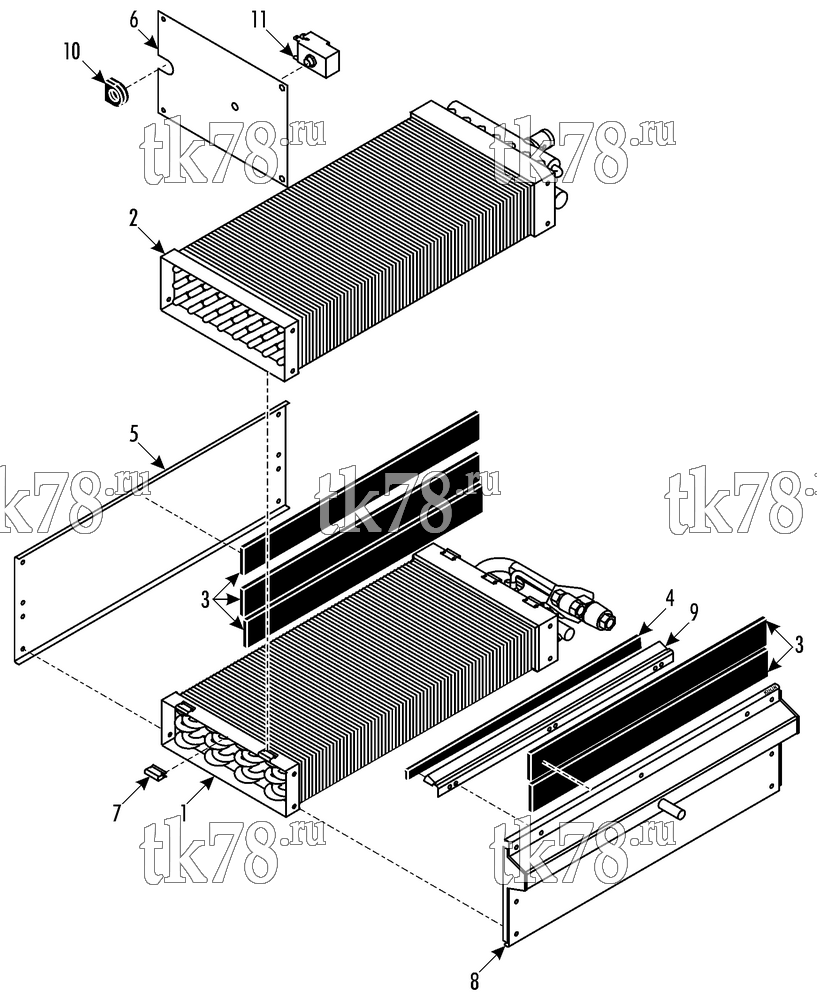

Установкa Thermo King MFB I-Horizontal схема COOL/HEAT MODULE - R407C (006639, 006642) – 211H6
Обновление от: 7/13/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2226 | COIL - evaporator (for 006642 different position) | 1 | |
| 61-3577 | VALVE - expansion | 1 | ||
| 55-9976 | CLAMP - tube | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-7478 | LOCKWASHSER | 1 | ||
| 55-4605 | SCREW | 1 | ||
| 2 | 67-1884 | COIL - heater (for 006642 different position) | 1 | |
| 3 | 33-3671 | STRIP - sealing (1.5 wide x 15.75 in) | 5 | |
| 4 | 33-3673 | STRIP - sealing (0.5 wide x 15.75 in) | 1 | |
| 5 | 92-2550 | COVER | 1 | |
| 51-257 | RIVET - cover | 8 | ||
| 6 | 92-2551 | COVER - side | 1 | |
| 51-258 | SCREW - cover | 2 | ||
| 7 | 51-262 | CLAMP | 6 | |
| 8 | 92-2558 | COVER - outlet | 1 | |
| 51-257 | RIVET - cover | 9 | ||
| 9 | 92-2559 | ANGLE - waterstop | 1 | |
| 10 | 33-3669 | GROMMET | 1 | |
| 11 | 41-5080 | THERMOSTAT - antifreeze | 1 |
