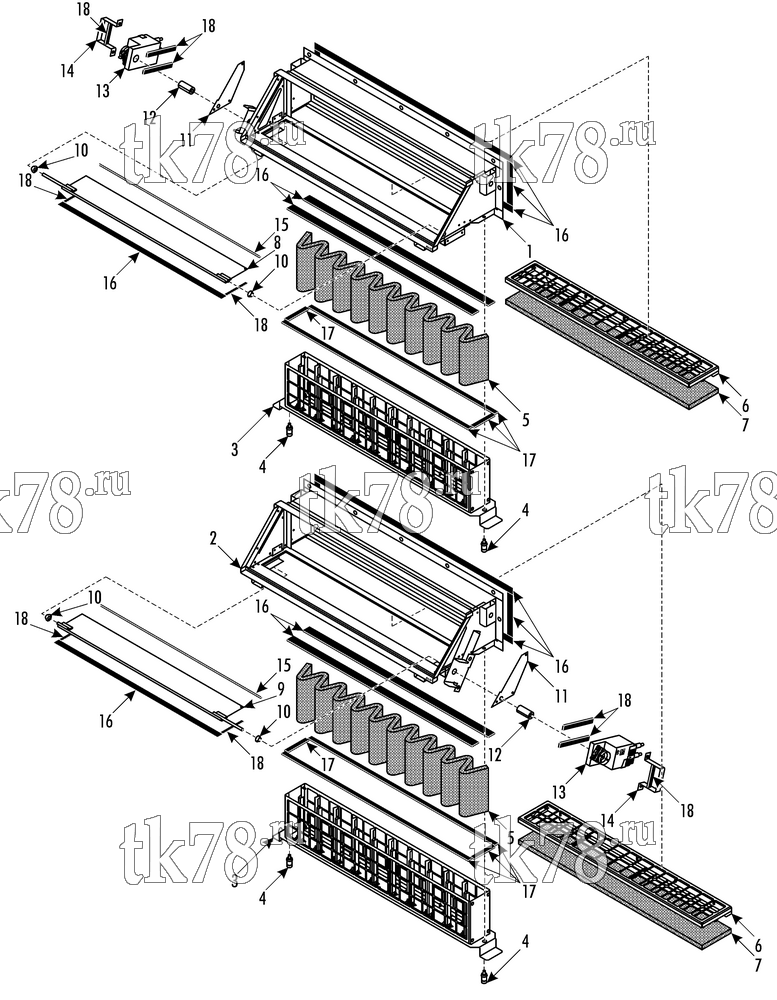

Установкa Thermo King MET-HV-SP SLAVE Unit схема FRESH AIR DAMPER – 234A5
Обновление от: 5/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8176 | CHANNEL - sealed | 1 | |
| 2 | 98-8177 | CHANNEL - sealed | 1 | |
| 3 | 98-8178 | FRAME - filter | 2 | |
| 4 | 55-9758 | SCREW - captive | 4 | |
| 51-190 | NUT - captive | 4 | ||
| 5 | 92-7398 | FILTER - mixed air | 2 | |
| 6 | 98-8179 | FRAME - filter | 2 | |
| 7 | 92-7399 | FILTER - return air | 2 | |
| 8 | 98-8180 | FLAP | 1 | |
| 9 | 98-8181 | FLAP | 1 | |
| 10 | 51-1821 | SHOULDER (nylon) | 4 | |
| 11 | 92-7400 | COVER - flap | 2 | |
| 55-2260 | RIVET - cover | 3 | ||
| 55-5130 | RIVET - | 3 | ||
| 12 | 51-702 | SHAFT - centering | 4 | |
| 13 | 41-6453 | MOTOR | 2 | |
| 14 | 92-7403 | U-PROFILE | 2 | |
| 55-6994 | SCREW - profile | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 15 | 92-4386 | RUBBER - profile | A/R | |
| 16 | 99-6968 | STRIP - neoprene | A/R | |
| 17 | 99-8429 | STRIP - neoprene | A/R | |
| 18 | 99-4976 | STRIP - neoprene | A/R |
