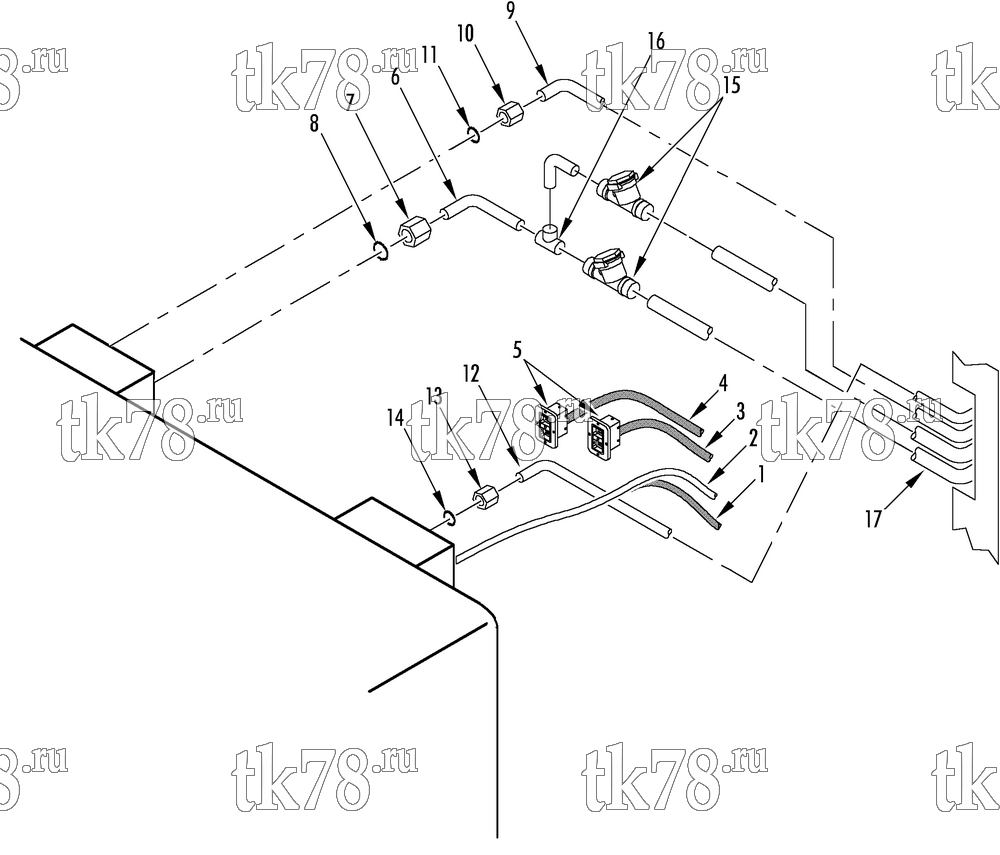

Установкa Thermo King MD-MT схема REMOTE UNIT CONNECTIONS – 180H1
Обновление от: 3/16/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2821 | HARNESS - evaporator fan (zone 1) | 1 | |
| 41-2823 | HARNESS - evaporator fan (zone 2) | 1 | ||
| 3 | 41-3042 | HARNESS - evaporator (zone 1) | 1 | |
| 4 | 41-3043 | HARNESS - evaporator (zone 2) | 1 | |
| 5 | 44-8897 | CONNECTOR (24-pin) | 1 | |
| 6 | 61-831 | TUBE - suction | 1 | |
| 7 | 55-5935 | NUT - shoulder (#20) | 1 | |
| 55-5939 | SHOULDER (#20) | 1 | ||
| 8 | 33-544 | O-RING - suction (#20) | 1 | |
| 9 | 66-9391 | TUBE - hot gas | 1 | |
| 10 | 55-6396 | NUT - shoulder (#10) | 1 | |
| 55-6356 | SHOULDER (#10) | 1 | ||
| 11 | 33-2115 | O-RING - hot gas (#10) | 1 | |
| 12 | 66-9393 | TUBE - liquid | 1 | |
| 13 | 55-8267 | NUT - shoulder (#6) | 1 | |
| 55-8268 | SHOULDER (#6) | 1 | ||
| 14 | 33-1015 | O-RING - liquid (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 15 | 66-6179 | VALVE - check (see 106C14) | 2 | |
| 16 | 55-6712 | TEE (7/8) | 1 | |
| 17 | 67-712 | TUBE - liquid (3/8 x 50 ft) | A/R | |
| 67-1126 | TUBE - hot gas (1/2 x 50 ft) | A/R | ||
| 67-1041 | TUBE - suction (7/8 x 50 ft) | A/R |
