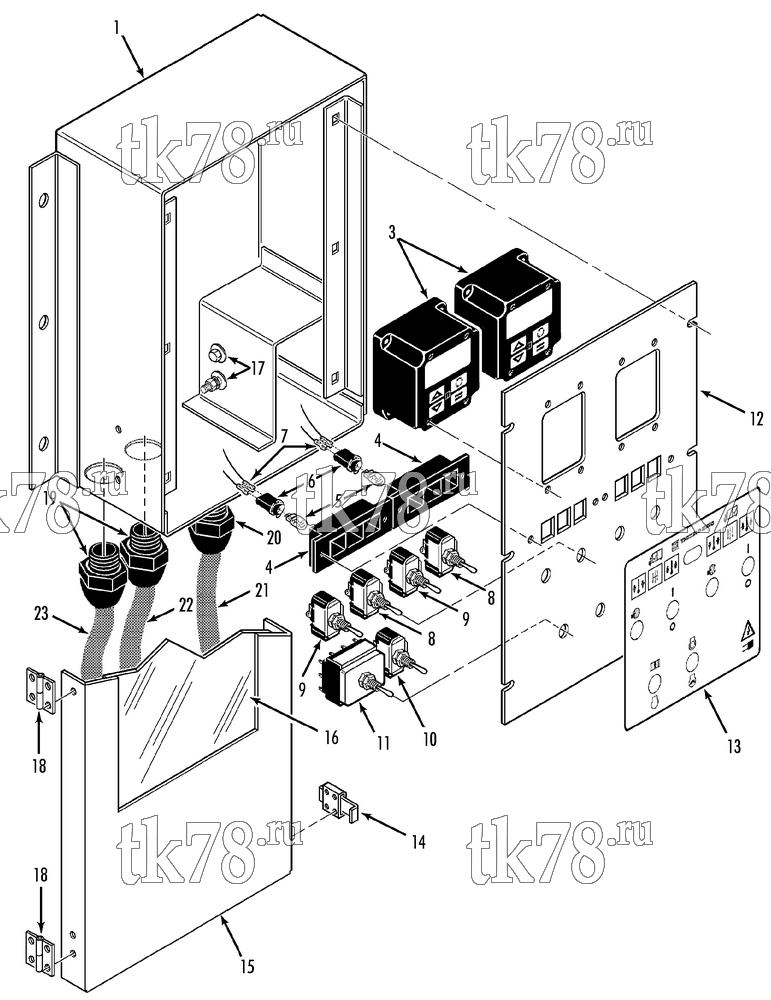

Установкa Thermo King MD-MT схема REMOTE CONTROL BOX (MULTI-TEMP 50 UNITS) – 178C6
Обновление от: 2/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4029 | BOX - remote | 1 | |
| 2 | 44-4584 | RECEPTACLE - power | 1 | |
| 55-5698 | SCREW - receptacle | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 3 | 45-1579 | THERMOSTAT - TG V | 2 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 33-2128 | GASKET - thermostat | 2 | ||
| 55-3443 | SCREW - thermostat | 8 | ||
| 55-2202 | LOCKWASHER | 8 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 4 | 99-9564 | HOUSING - light | 2 | |
| 55-3099 | SCREW - housing | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 5 | 44-3711 | BULB - light | 6 | |
| 6 | 44-6462 | SOCKET - bulb | 6 | |
| 7 | 44-7054 | TERMINAL - special | 12 | |
| 8 | 44-1357 | SWITCH - on/off | 2 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 9 | 44-1164 | SWITCH - manual defrost | 2 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 10 | 44-7595 | SWITCH - preheat/start (2pdt) | 1 | |
| 11 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-739 | BOOT - switch | 6 | ||
| 12 | 98-4030 | PANEL - control | 1 | |
| 55-3099 | SCREW - panel | 6 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-4526 | NUT - captive | 6 | ||
| 13 | 91-3325 | NAMEPLATE - control panel | 1 | |
| 14 | 91-1667 | LATCH - cover | 2 | |
| 55-5974 | SCREW - latch | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 15 | 91-3326 | COVER - box | 1 | |
| 99-5966 | STRIP - gasket (1/4 x 1.0) | A/R | ||
| 16 | 91-1689 | WINDOW - cover | 1 | |
| 17 | 55-3000 | SCREW - ground | 2 | |
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2996 | LOCKWASHER - internal tooth | 2 | ||
| 55-2965 | NUT | 4 | ||
| 18 | 99-2392 | HINGE - door | 2 | |
| 55-3015 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2965 | NUT | 8 | ||
| 19 | 55-5112 | CONNECTOR - cable | 2 | |
| 20 | 55-5885 | CONNECTOR - cable | 1 | |
| 21 | 44-9199 | CABLE - power (23 ft) | 1 | |
| 22 | 44-9245 | HARNESS - remote box (50s) | 1 | |
| 23 | 41-4948 | HARNESS - remote box (common) | 1 |
