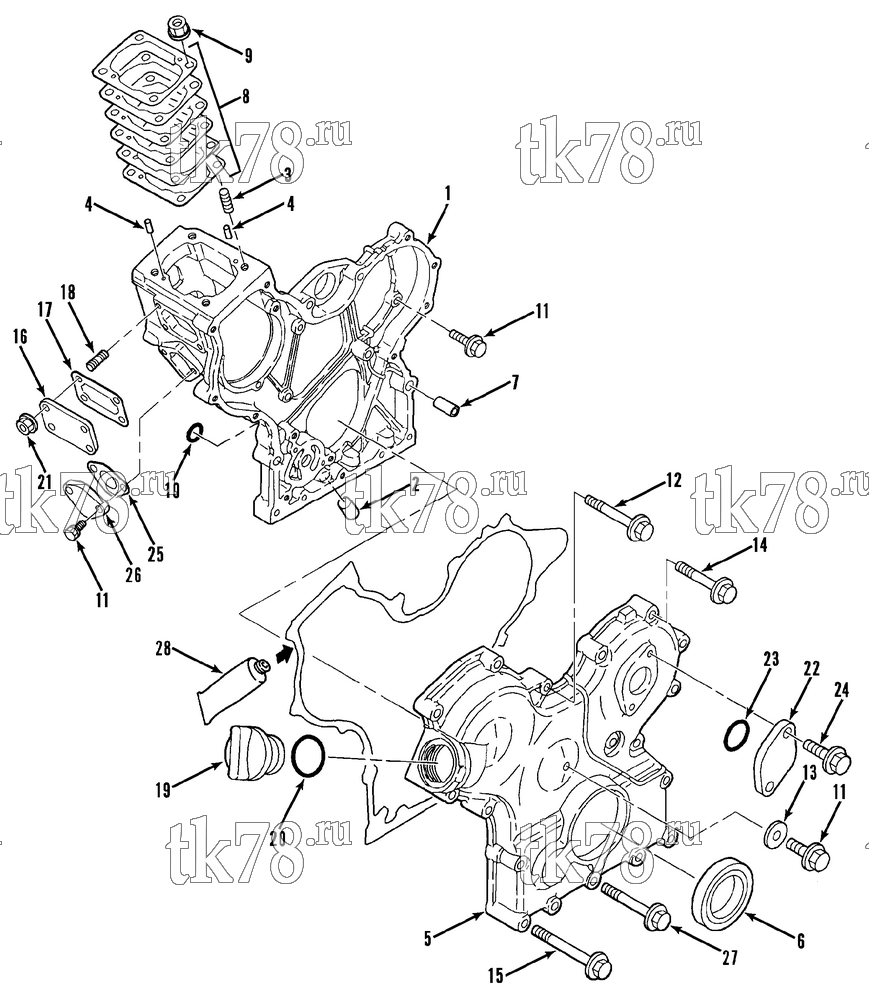

Установкa Thermo King MD-MT схема GEAR HOUSING GROUP – 130F10
Обновление от: 2/5/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-8735 | HOUSING - gear | 1 | |
| 2 | 55-5783 | PLUG | 1 | |
| 3 | 55-5784 | STUD - fuel injection | 4 | |
| 4 | 55-5834 | PIN - governor | 2 | |
| 5 | 11-8647 | COVER - gear case (before S/N EA37759) | 1 | |
| 13-700 | COVER - gear case (S/N EA37759 & after) | 1 | ||
| 6 | 33-1727 | SEAL - oil | 1 | |
| 33-1727 OEM | Сальник коленвала передний | 3 020 ₽ |
|
|
| PP-33-1727 | Сальник коленвала передний | 990 ₽ |
|
|
| 7 | 55-5785 | PIN - alignment | 4 | |
| 8 | 33-1728 | SHIM PACK | 1 | |
| 9 | 55-5791 | NUT (w/ washer) | 4 | |
| 10 | 33-3512 | O-RING | 2 | |
| 11 | 55-5786 | BOLT - cover | 8 | |
| 12 | 55-5789 | BOLT - cover | 4 | |
| 13 | 55-8613 | WASHER - sealing | 1 | |
| 14 | 55-5787 | BOLT - cover | 4 | |
| 15 | 55-5790 | BOLT - cover | 6 | |
| 16 | 11-6135 | COVER | 1 | |
| 17 | 33-1754 | GASKET | 1 | |
| 18 | 55-5859 | STUD - cover | 4 | |
| 19 | 11-5091 | CAP - lube (oil supply) | 1 | |
| 11-5091 OEM | Крышка маслозаливной горловины, Yanmar 353 / 366 / 374 / 388 / 395 / 482 / 486 / 486V | 3 500 ₽ |
|
|
| 20 | 33-1954 | O-RING | 1 | |
| 21 | 55-5792 | NUT | 4 | |
| 22 | 13-933 | COVER | 1 | |
| 23 | 33-2814 | O-RING | 1 | |
| 24 | 55-5826 | BOLT - cover | 2 | |
| 25 | 33-1542 | GASKET - cover | 1 | |
| 26 | 11-5084 | COVER | 1 | |
| 27 | 55-5788 | BOLT - cover | 3 | |
| 28 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 30-235 | KIT - gasket (see 132A9) | 1 | ||
|
10-30-235 | Набор прокладок двигателя Yanmar 374 | 32 100 ₽ |
|
