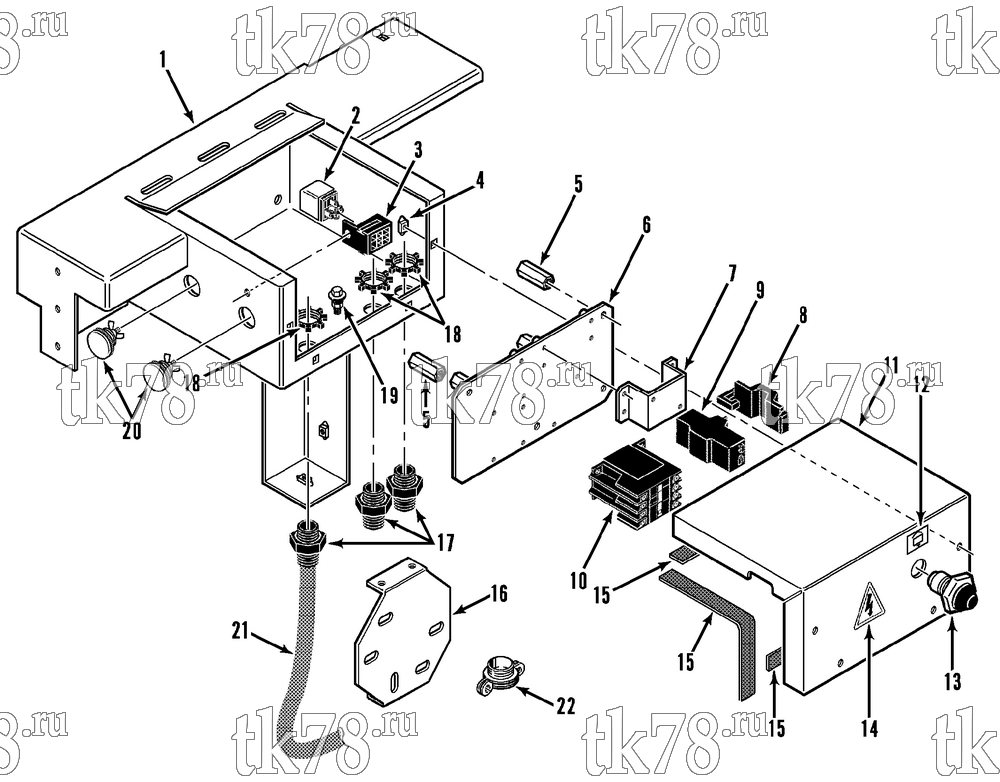

Установкa Thermo King MD-MT схема HIGH VOLTAGE CONTROL BOX (MD-II TCI 50) – 116D3
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5475 | BOX - high voltage | 1 | |
| 55-3059 | NUT - captive (1/4-20) | 10 | ||
| 55-1587 | SCREW - box | 7 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-4953 | NUT | 1 | ||
| 2 | 41-895 | RELAY - mini (1pdt) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 3 | 44-5537 | SOCKET - relay | 1 | |
| 55-3099 | SCREW - socket | 1 | ||
| 55-3008 | WASHER - sealing | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 4 | 55-4526 | NUT (1/4-32, hexstop) | 6 | |
| 5 | 91-6605 | SPACER - hex | 4 | |
| 55-4953 | NUT | 4 | ||
| 55-3021 | SCREW - spacer/plate | 4 | ||
| 55-3028 | WASHER - sealing | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 6 | 91-5476 | PLATE - contactor | 1 | |
| 7 | 91-5477 | BRACKET - riser | 1 | |
| 55-2989 | SCREW - bracket | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 8 | 41-6096 | ADAPTER - relay | 1 | |
| 55-3511 | SCREW - adapter | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 9 | 41-5622 | RELAY - overload (230V) | 1 | |
| 41-5624 | RELAY - overload (380/460V) | 1 | ||
| 10 | 40-883 | CONTACTOR - motor | 1 | |
| 55-3511 | SCREW - contactor | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 11 | 91-5478 | COVER - high voltage box | 1 | |
| 55-2991 | SCREW - cover | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 12 | 44-9465 | NAMEPLATE - motor reset | 1 | |
| 13 | 44-4613 | BUTTON - reset | 1 | |
| 92-8854 | BUTTON - reset (only) | 1 | ||
| 14 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 15 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | |
| 16 | 91-5461 | BRACKET - dehydrator | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 17 | 55-2789 | FITTING - barb | 1 | |
| 33-144 | O-RING | 1 | ||
| 18 | 55-2635 | NUT | 1 | |
| 19 | 55-3031 | SCREW - ground (10-32) | 1 | |
| 55-3008 | WASHER - sealing (#10) | 1 | ||
| 55-2996 | LOCKWASHER (internal tooth, #10) | 2 | ||
| 55-2965 | NUT (10-32) | 2 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-5215 | SCREW - ground (8-32) | 1 | ||
| 55-3023 | WASHER - sealing (#8) | 1 | ||
| 55-3800 | LOCKWASHER (internal tooth, #8) | 2 | ||
| 55-2990 | NUT (8-32) | 2 | ||
| 55-2201 | FLATWASHER (#8) | 1 | ||
| 55-2202 | LOCKWASHER (#8) | 1 | ||
| 20 | 99-2702 | PLUG - seal | 2 | |
| 21 | 41-628 | HARNESS - high voltage box to control box (assembly) | 1 | |
| 44-5600 | CONNECTOR - main harness (6-pin, male) | 1 | ||
| 44-5763 | DIODE - rectifier | 1 | ||
| 44-5620 | CONNECTOR - pc board (2-pin, male) | 1 | ||
| 44-5814 | CONNECTOR - remote box (4-pin, male) | 1 | ||
| 22 | 55-3831 | CONNECTOR - cable (TCI-Z) | 1 |
