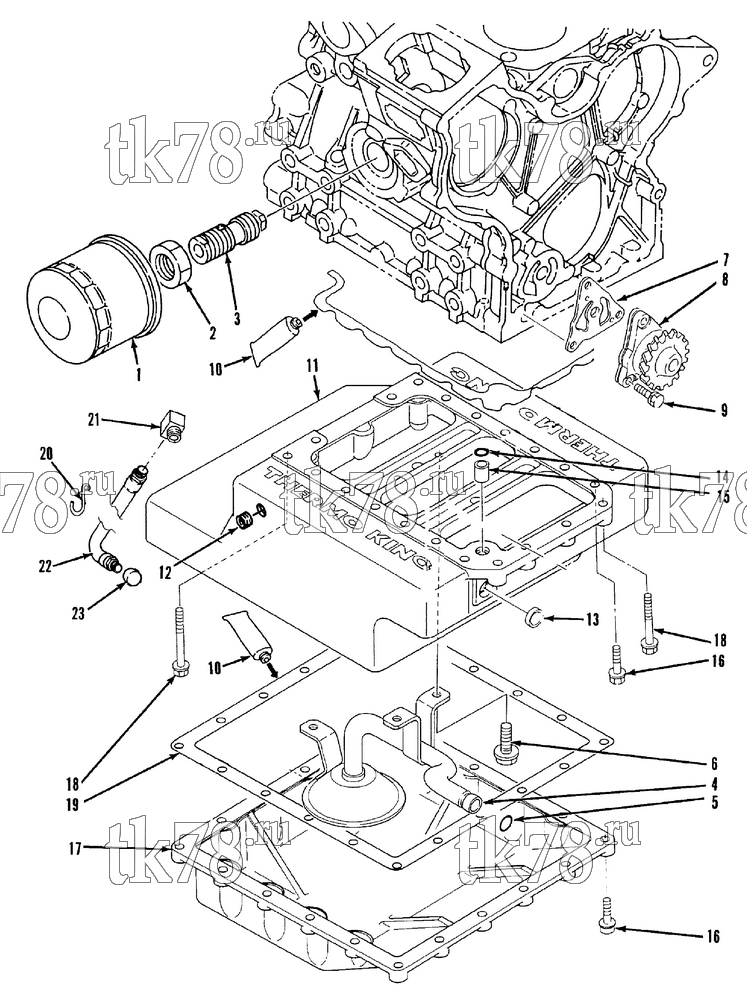

Установкa Thermo King MD-II TCI схема OIL FILTER & PUMP – 76C2
Обновление от: 10/7/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6182 | FILTER - oil | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 2 | 55-5823 | NUT - oil pressure valve | 1 | |
| 3 | 11-6087 | VALVE - oil pressure | 1 | |
| 4 | 11-6089 | PIPE - oil intake | 1 | |
| 5 | 33-1736 | O-RING - pipe | 1 | |
| 6 | 55-5798 | SCREW - oil pipe | 3 | |
| 7 | 33-1740 | GASKET - oil pump | 1 | |
| 10-33-1740 | Прокладка масляного насоса, Yanmar 366, 388 | 590 ₽ |
|
|
| 8 | 11-6133 | PUMP - oil | 1 | |
|
10-11-6133 | Масляный насос, Yanmar 249, 366, 374 | 31 060 ₽ |
|
| 9 | 55-5821 | SCREW - pump | 3 | |
| 10 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 11 | 11-6141 | SUMP - oil | 1 | |
| 12 | 55-5763 | PLUG | 1 | |
| 13 | 55-5764 | PLUG | 1 | |
| 14 | 33-3512 | O-RING | 1 | |
| 15 | 55-5762 | PIPE | 1 | |
| 16 | 55-5765 | SCREW (M6 x 25) | 32 | |
| 17 | 11-6140 | COVER - oil sump | 1 | |
| 18 | 55-5766 | SCREW (M6 x 60) | 8 | |
| 19 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 20 | 91-734 | CLIP - gripper | 1 | |
| 21 | 55-6557 | ELBOW | 1 | |
| 22 | 11-6177 | HOSE - oil drain (28 in) | 1 | |
|
10-11-6177 | Трубка масляная сливная (Yanmar) | 3 670 ₽ |
|
| 11-7067 | HOSE - oil drain (23 in) | 1 | ||
|
10-11-7067 | Шланг сливной, Yanmar 2XX / 3XX | 3 470 ₽ |
|
| 23 | 55-1042 | CAP - oil drain hose | 1 | |
| 30-251 | GASKET SET - engine overhaul | 1 | ||
|
10-30-251 | Набор прокладок двигателя Yanmar 366 | 26 580 ₽ |
|
