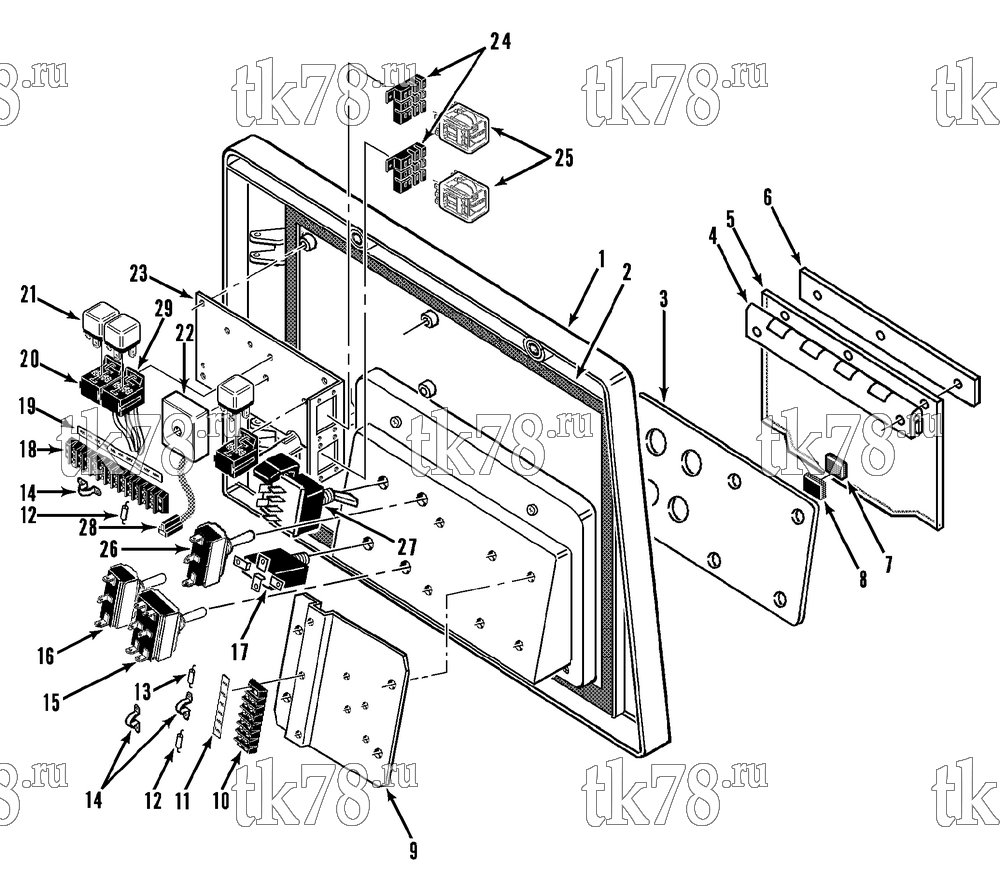

Установкa Thermo King MD-II TCI схема CONTROL BOX COVER – 116D4
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4509 | PANEL - control box cover | 1 | |
| 55-5965 | SCREW - cover | 4 | ||
| 55-4510 | WASHER - retaining | 4 | ||
| 2 | 33-2490 | GASKET - cover | 1 | |
| 3 | 91-5676 | NAMEPLATE - panel (TSA) | 1 | |
| 91-5677 | PANEL - TSA | 1 | ||
| 4 | 99-9487 | HINGE - cover | 1 | |
| 12-592 | TAPE - foam (double adhesive, 10 ft) | A/R | ||
| 5 | 99-9486 | DOOR - thermostat | 1 | |
| 6 | 99-9489 | PLATE - hinge | 1 | |
| 55-5975 | SCREW - door & hinge | 5 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 7 | 91-1106 | FASTENER - door | 1 | |
| 8 | 91-1107 | FASTENER - panel | 1 | |
| 9 | 91-3786 | PLATE - terminal board | 1 | |
| 55-4223 | NUT - plate | 3 | ||
| 10 | 44-5350 | BOARD - terminal | 1 | |
| 55-3511 | SCREW - board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 11 | 91-3803 | MARKSTRIP | 1 | |
| 12 | 44-5763 | DIODE | 5 | |
| 13 | 44-9189 | CAPACITOR | 1 | |
| 44-5206 | TERMINAL - snap ring | 4 | ||
| 14 | 44-3579 | STRIP - jumper | 3 | |
| 15 | 44-7595 | SWITCH - preheat/start (2pdt) | 1 | |
| 16 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 44-6292 | CONNECTOR (1-pin, male) | 1 | ||
| 17 | 44-7774 | BREAKER - circuit | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-8688 | BOOT - circuit breaker | 1 | ||
| 18 | 44-6504 | BOARD - terminal | 1 | |
| 55-3015 | SCREW - board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 19 | 91-3804 | MARKSTRIP | 1 | |
| 20 | 44-5537 | SOCKET - relay | 3 | |
| 55-2989 | SCREW - socket | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 21 | 41-895 | RELAY - mini | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 22 | 44-8162 | TIMER - heat initiation | 1 | |
| 55-3031 | SCREW - timer | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 23 | 91-3787 | PLATE - relay | 1 | |
| 55-3842 | SCREW - plate | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 24 | 44-3184 | SOCKET - relay | 2 | |
| 55-2270 | RIVET - socket | 4 | ||
| 25 | 44-3186 | RELAY - defrost (pressure relief) | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 55-2771 | CLAMP - relay | 2 | ||
| 99-2027 | SPRING - holddown | 2 | ||
| 26 | 44-709 | SWITCH - 1/2 temperature | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-5600 | CONNECTOR (6-pin, male) | 1 | ||
| 27 | 44-8464 | BOARD - Cycle Sentry switch | 1 | |
| 28 | 44-6451 | CONNECTOR (1-pin) | 1 | |
| 29 | 41-1459 | HARNESS - defrost | 1 |
