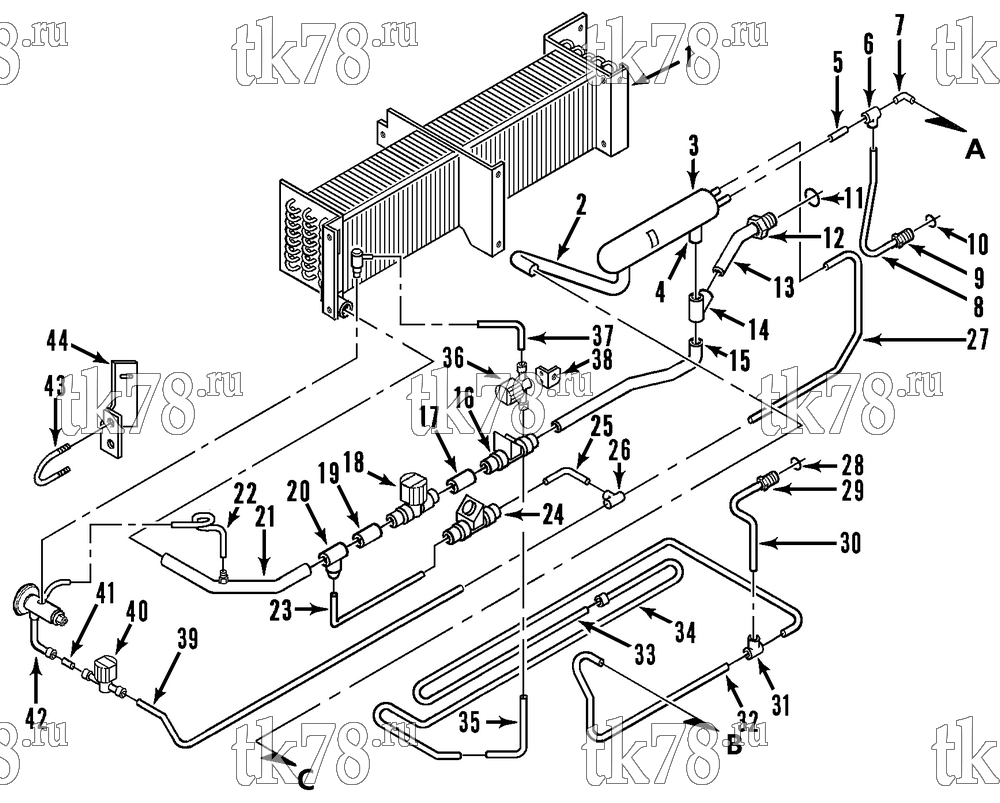

Установкa Thermo King MD-II TCI, TCI EMEIA, TCI-Z EMEIA w/TK 3.74 Engine схема REFRIGERATION - EVAPORATOR (MD-II TCI) – 138G5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1183 | COIL - evaporator (see 116D9) | 1 | |
| 55-3059 | NUT - captive | 10 | ||
| 99-9554 | TAPE - sealer (2 in x 36 ft) | A/R | ||
| 99-9251 | STRIP (1.6 in wide x 25 ft, neoprene) | A/R | ||
| 2 | 66-7237 | TUBE - exchanger to bulkhead (suction) | 1 | |
| 3 | 67-928 | HEAT EXCHANGER | 1 | |
| 4 | 66-7238 | TUBE - tee to exchanger | 1 | |
| 5 | 66-6135 | TUBE - tee to exchanger | 1 | |
| 6 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | |
| 7 | 55-3249 | ELBOW - bulkhead to tee | 1 | |
| 8 | 66-6145 | TUBE - tee to o-ring seal fitting | 1 | |
| 9 | 66-6036 | ADAPTER - bulkhead (o-ring seal) | 1 | |
| 55-6780 | NUT - adapter | 1 | ||
| 55-7685 | WASHER - special | 1 | ||
| 10 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 11 | 33-1222 | O-RING | 1 | |
| 12 | 55-6354 | ADAPTER - bulkhead (o-ring seal) | 1 | |
| 55-6812 | NUT - adapter | 1 | ||
| 55-7687 | WASHER - special | 1 | ||
| 13 | 66-7252 | TUBE - adapter to tee | 1 | |
| 14 | 55-7686 | TEE (7/8 x 7/8 x 3/4) | 1 | |
| 15 | 66-7251 | TUBE - tee to check valve | 1 | |
| 16 | 66-6179 | VALVE - check (see 106C14) | 1 | |
| 17 | 66-7250 | TUBE - check valve to solenoid valve | 1 | |
| 18 | 66-8695 | VALVE - solenoid (for connectors see 115D14) | 1 | |
| 44-5174 | COIL - valve | 1 | ||
| 60-186 | KIT - internal repair | 1 | ||
| 19 | 66-7249 | TUBE - solenoid valve to tee | 1 | |
| 20 | 55-4322 | TEE (7/8 x 7/8 x 1/2) | 1 | |
| 21 | 66-8693 | TUBE - coil to tee | 1 | |
| 66-5752 | FITTING - equalizer tube | 1 | ||
| 22 | 66-7242 | TUBE - equalizer | 1 | |
| 23 | 66-8694 | TUBE - tee to check valve | 1 | |
| 24 | 66-5722 | VALVE - check | 1 | |
| 25 | 66-7248 | TUBE - tee to check valve | 1 | |
| 26 | 55-6222 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 27 | 66-7241 | TUBE - exchanger to tee | 1 | |
| 28 | 33-2115 | O-RING | 1 | |
| 29 | 55-6786 | ADAPTER - bulkhead (o-ring seal) | 1 | |
| 55-6811 | NUT - adapter | 1 | ||
| 30 | 66-7245 | TUBE - tee to adapter | 1 | |
| 31 | 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 32 | 66-7244 | TUBE - bulkhead to tee | 1 | |
| 33 | 66-6353 | TUBE - tee to defrost tube | 1 | |
| 34 | 66-7236 | TUBE - serpentine | 1 | |
| 35 | 66-7234 | TUBE - defrost to solenoid valve | 1 | |
| 36 | 66-8464 | VALVE - solenoid (for connectors see 115D14) | 1 | |
| 60-230 | KIT - diaphram | 1 | ||
| 60-231 | KIT - coil & tube | 1 | ||
| 37 | 66-7235 | TUBE - solenoid valve to distributor | 1 | |
| 38 | 91-5487 | BRACKET - solenoid valve | 1 | |
| 55-5640 | SCREW - bracket | 2 | ||
| 39 | 66-7243 | TUBE - tee to solenoid valve | 1 | |
| 40 | 66-5305 | VALVE - solenoid (see 116G10, for connectors see 115D14) | 1 | |
| 41 | 66-7372 | TUBE - valve to expansion valve | 1 | |
| 42 | 66-5993 | VALVE - expansion | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 43 | 55-3547 | U-BOLT - valve | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 44 | 91-5488 | BRACKET - expansion valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 |
