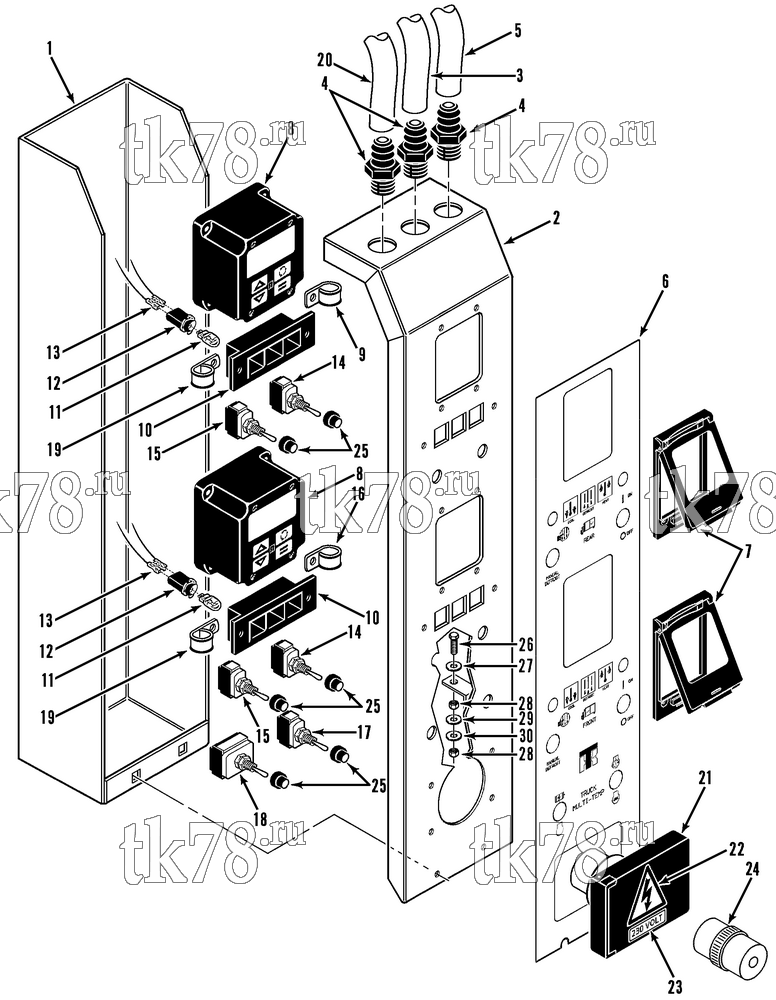

Установкa Thermo King MD-II TCI, TCI EMEIA, TCI-Z EMEIA w/TK 3.74 Engine схема REMOTE CONTROL BOX (MD/RD-II 50 TCI) – 116D8
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3264 | BOX - remote control | 1 | |
| 2 | 91-3785 | COVER - control box | 1 | |
| 99-4976 | STRIP - gasket (1/2 x 1/8) | A/R | ||
| 55-3623 | SCREW - cover | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-6530 | NUT - captive | 2 | ||
| 3 | 41-382 | HARNESS - remote box (common, TCI) | 1 | |
| 44-6248 | CONNECTOR - main harness (3-pin, female) | 1 | ||
| 44-5827 | CONNECTOR - rear evaporator (4-pin, male) | 1 | ||
| 44-5219 | CONNECTOR - rear evaporator (2-pin, female) | 1 | ||
| 44-5622 | CONNECTOR - 1/2 temperature switch (6-pin, female) | 1 | ||
| 44-6292 | CONNECTOR - option pc board (1-pin, male) | 1 | ||
| 4 | 55-2789 | FITTING - barb (harness) | 3 | |
| 55-2635 | NUT - barb | 3 | ||
| 33-144 | O-RING | 3 | ||
| 5 | 44-9443 | HARNESS - remote box | 1 | |
| 44-5827 | CONNECTOR - motor control (4-pin, male) | 1 | ||
| 44-5030 | CONNECTOR - main harness (6-pin, female) | 1 | ||
| 44-5622 | CONNECTOR (6-pin, female) | 1 | ||
| 44-4925 | CONNECTOR - main harness (6-pin, male) | 1 | ||
| 6 | 91-3266 | NAMEPLATE - cover | 1 | |
| 7 | 91-2674 | COVER - thermostat | 2 | |
|
10-91-2674 | Крышка термостата | 9 200 ₽ |
|
| 33-2145 | GASKET - cover | 2 | ||
| 8 | 45-1579 | THERMOSTAT - digital | 2 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 33-2128 | GASKET - thermostat | 2 | ||
| 55-3696 | SCREW - thermostat & cover | 8 | ||
| 9 | 55-3741 | CLAMP (3/4) | 1 | |
| 10 | 99-9564 | HOUSING - light | 2 | |
| 55-3623 | SCREW - housing | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 11 | 44-3711 | BULB - light | 6 | |
| 12 | 44-6462 | SOCKET - bulb | 6 | |
| 13 | 44-7054 | TERMINAL - bulb | 12 | |
| 14 | 44-1357 | SWITCH - on/off | 2 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 15 | 44-1164 | SWITCH - defrost | 2 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 16 | 55-570 | CLAMP (5/8) | 1 | |
| 17 | 44-7595 | SWITCH - preheat/start (2pdt) | 1 | |
| 18 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 19 | 55-547 | CLAMP (3/8) | 2 | |
| 20 | 41-383 | HARNESS - high voltage | 1 | |
| 21 | 44-4584 | RECEPTACLE (230V) | 1 | |
| 44-4585 | RECEPTACLE (380/460V) | 1 | ||
| 55-3511 | SCREW (3/4 lg) | 4 | ||
| 55-3684 | SCREW (1.0 lg) | 3 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2990 | NUT | 4 | ||
| 22 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 23 | 99-3195 | NAMEPLATE - 208/230 Volt | 1 | |
| 99-6907 | NAMEPLATE - 380/460 Volt | 1 | ||
| 24 | 44-4695 | PLUG - power (230V) | 1 | |
| 44-4700 | PLUG - power (380/460V) | 1 | ||
| 25 | 44-739 | BOOT - switch | 6 | |
| 26 | 55-3000 | SCREW - ground | 1 | |
| 27 | 55-2001 | FLATWASHER | 2 | |
| 28 | 55-2965 | NUT | 2 | |
| 29 | 55-2996 | LOCKWASHER (internal tooth) | 3 | |
| 30 | 55-2964 | LOCKWASHER - spring | 1 |
