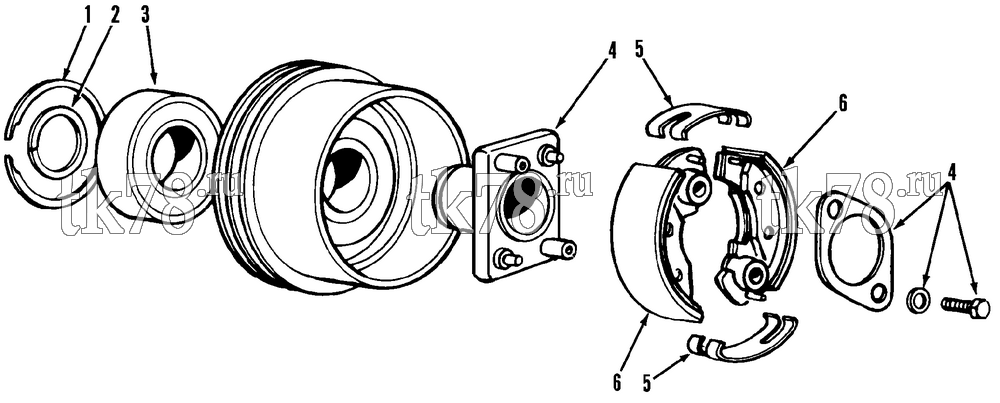

Установкa Thermo King MD-I схема CLUTCH ASSEMBLY (107-176) – 59F12
Обновление от: 8/6/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 107-176 | CLUTCH (replaces clutches 107-165, 107-167, see note) | 1 | ||
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 101 090 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 58 580 ₽ |
|
| 1 | 77-338 | SNAP RING - housing | 1 | |
| 2 | 77-772 | SNAP RING - hub | 1 | |
| 3 | 77-1348 | BEARING | 1 | |
| 4 | 70-121 | ROTOR & BRIDGE (incl hardware) | 1 | |
| 5 | 77-1421 | SPRING | 2 | |
| 6 | 70-122 | SHOE - kit | 1 | |
| 70-129 | KIT - clutch repair | 1 | ||
| 77-290 | SNAP RING - clutch | 1 |
