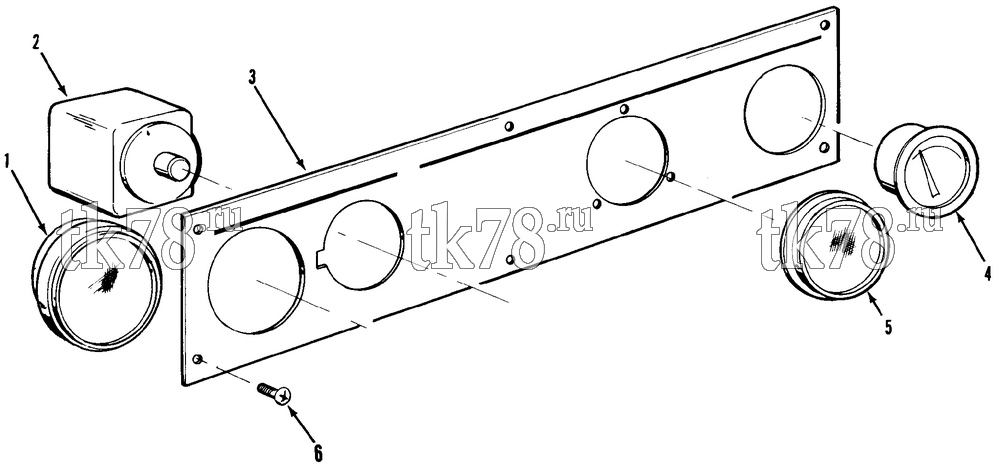

Установкa Thermo King MD-I схема GAUGE PANEL GROUP – 49E4
Обновление от: 2/6/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3467 | THERMOMETER | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS - thermometer | 1 | ||
| 33-666 | GASKET | 1 | ||
| 55-3551 | SCREW - thermostat | 3 | ||
| 55-3233 | LOCKWASHER | 3 | ||
| 55-3519 | NUT | 3 | ||
| 2 | 45-1580 | THERMOSTAT | 1 | |
| 66-3087 | DIAL (F scale) | 1 | ||
| 66-3088 | DIAL (C scale) | 1 | ||
| 44-5816 | SWITCH - bank | 1 | ||
| 44-5757 | THERMAL - assembly | 1 | ||
| 55-111 | SCREW - thermostat | 3 | ||
| 3 | 99-6166 | PANEL - gauge (MD-I) | 1 | |
| 99-6165 | PANEL - gauge (MD-I 30 & 50 M1A) | 1 | ||
| 4 | 44-2814 | GAUGE - water temperature | 1 | |
|
10-44-2814 | Датчик температуры воды | 15 730 ₽ |
|
| 5 | 44-5585 | HOURMETER | 1 | |
| 99-5735 | SPACER - hourmeter | 1 | ||
| 55-1508 | SCREW - hourmeter | 3 | ||
| 55-1266 | FLATWASHER | 3 | ||
| 55-3233 | LOCKWASHER | 3 | ||
| 55-3519 | NUT | 1 | ||
| 6 | 55-3015 | SCREW - panel | 4 |
