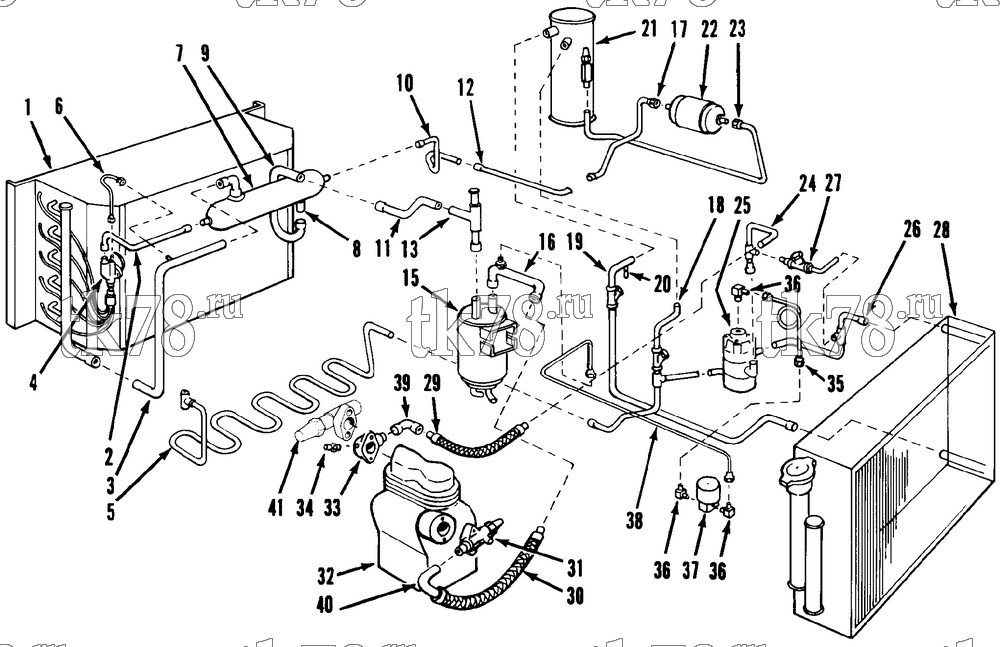

Установкa Thermo King MD-I схема REFRIGERATION COMPONENTS – 49D7
Обновление от: 7/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-646 | COIL - evaporator | 1 | |
| 2 | 66-3285 | TUBE - heat exchanger to expansion valve | 1 | |
| 3 | 66-3283 | TUBE - coil to heat exchanger | 1 | |
| 4 | 66-1185 | VALVE - expansion | 1 | |
| 66-2719 | ELEMENT - expansion | 1 | ||
| 30-155 | KIT - gasket set | 1 | ||
| 99-1405 | BRACKET - expansion valve | 1 | ||
| 55-144 | SCREW - bracket & valve | 2 | ||
| 55-411 | FLATWASHER | 3 | ||
| 55-366 | LOCKWASHER | 3 | ||
| 55-315 | NUT | 3 | ||
| 5 | 67-538 | TUBE - defrost | 1 | |
| 99-3094 | CHANNEL - tube | 1 | ||
| 55-1189 | SCREW - channel | 2 | ||
| 55-2847 | NUT - rivet | 2 | ||
| 6 | 66-3598 | TUBE - equalizer line | 1 | |
| 7 | 67-585 | HEAT EXCHANGER (incl 2, 8 & 10) | 1 | |
| 99-5833 | BRACKET - heat exchanger | 2 | ||
| 99-5834 | SPACER - bracket | 2 | ||
| 99-5835 | BOLTSTRIP - bracket | 2 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-312 | NUT | 4 | ||
| 8 | 66-3286 | BUSHING | 1 | |
| 9 | 66-3282 | TUBE - heat exchanger to bulkhead | 1 | |
| 10 | 66-3284 | TUBE - bulkhead to heat exchanger | 1 | |
| 11 | 66-3273 | TUBE - bulkhead to valve | 1 | |
| 12 | 66-3272 | TUBE - dehydrator to bulkhead | 1 | |
| 13 | 66-1180 | VALVE - pressure regulator | 1 | |
| 14 | Not Used | |||
| 15 | 67-583 | TANK - accumulator (see 49D3) | 1 | |
| 16 | 66-3297 | TUBE - accumulator outlet | 1 | |
| 17 | 66-3271 | TUBE - dehydrator to bulkhead | 1 | |
| 18 | 66-3276 | TUBE - check valve | 1 | |
| 66-3654 | VALVE - check (see 9G12) | 1 | ||
| 19 | 66-3268 | TUBE - check valve (condenser to receiver) | 1 | |
| 66-3655 | VALVE - check | 1 | ||
| 55-3295 | FITTING - saddle (valve) | 1 | ||
| 20 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 99-2354 | ANGLE - tank | 1 | ||
| 55-538 | SCREW - angle | 2 | ||
| 22 | 66-814 | DEHYDRATOR | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 99-465 | BRACKET - dehydrator | 1 | ||
| 99-4326 | PAD - dehydrator (rubber) | 1 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-291 | NUT | 4 | ||
| 23 | 66-3751 | TUBE - dehydrator to receiver | 1 | |
| 24 | 66-3597 | TUBE - vibrasorder to 3-way | 1 | |
| 25 | 66-3635 | VALVE - 3-way | 1 | |
| 99-5790 | BRACKET - 3-way valve (dehydrator) | 1 | ||
| 26 | 66-3275 | TUBE - 3-way to conditioner | 1 | |
| 27 | 66-3274 | TUBE - check valve | 1 | |
| 66-3654 | VALVE - check (see 9G12) | 1 | ||
| 28 | 67-582 | COIL - condenser/radiator | 1 | |
| 29 | 66-1584 | VIBRASORBER - discharge (19-3/4 in lg) | 1 | |
| 66-8787 | VIBRASORBER - discharge (22 in lg) | 1 | ||
| 30 | 66-1784 | VIBRASORBER - suction | 1 | |
| 31 | 66-8186 | VALVE - suction | 1 | |
| 32 | 102-474 | COMPRESSOR - D214 (see 92E12) | 1 | |
| 33 | 66-1807 | ELBOW | 1 | |
| 34 | 11-2886 | VALVE (Schrader) | 1 | |
| 35 | 66-1810 | TUBE - 3-way valve to pilot solenoid | 1 | |
| 36 | 55-4489 | ELBOW | 3 | |
| 37 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3083 | COIL (3/8 bore) | 1 | ||
| 41-1525 | COIL (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 99-3160 | SCREW - valve | 2 | ||
| 99-2358 | PLATE - coil | 1 | ||
| 55-144 | SCREW - valve | 6 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 38 | 66-3614 | TUBE - pilot solenoid to accumulator tank | 1 | |
| 39 | 66-3298 | TUBE - discharge (elbow) | 1 | |
| 40 | 66-3345 | TUBE - suction | 1 | |
| 41 | 22-188 | VALVE - discharge | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
