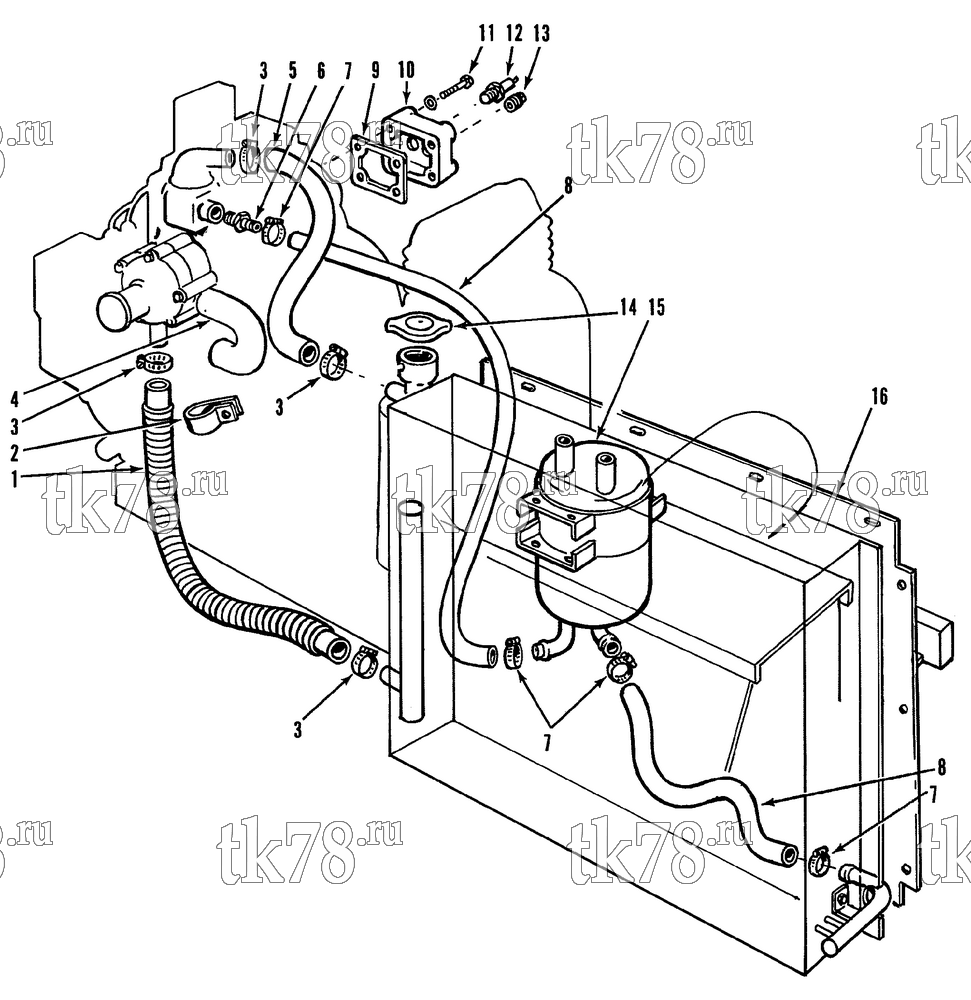

Установкa Thermo King MD-I схема COOLING SYSTEM – 49D3
Обновление от: 9/8/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-3169 | HOSE - water | 1 | |
| 11-5393 | HOSE | 1 | ||
| 2 | 55-1823 | CLAMP | 1 | |
| 55-570 | CLAMP | 1 | ||
| 3 | 55-2818 | CLAMP - hose | 4 | |
| 55-3401 | CLAMP - hose (silicone) | 4 | ||
| 4 | 11-5046 | HOSE | 1 | |
| 11-5238 | HOSE | 1 | ||
| 55-3402 | CLAMP - hose (silicone) | 2 | ||
| 5 | 11-5069 | HOSE | 1 | |
| 12-419 | HOSE (3/4 id x 25 ft, silicone cut to17 in lg) | 1 | ||
| 6 | 55-4180 | ADAPTER | 1 | |
| 7 | 55-2686 | CLAMP - hose | 4 | |
| 55-1521 | CLAMP - hose (silicone) | 4 | ||
| 8 | 98-796 | HOSE (25 ft lg) | 2 | |
| 12-383 | HOSE (25 ft lg) | 2 | ||
| 9 | 33-1380 | GASKET | 1 | |
| 10 | 11-5066 | MANIFOLD | 1 | |
| 11 | 55-5801 | BOLT | 3 | |
| 55-1141 | SCREW | 1 | ||
| 55-4613 | WASHER | 4 | ||
| 12 | 44-4793 | SWITCH - water temperature | 1 | |
| 13 | 55-579 | PLUG | 1 | |
| 14 | 11-7983 | CAP | 1 | |
| 15 | 67-583 | TANK - accumulator | 4 | |
| 55-643 | SCREW | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-315 | NUT | 4 | ||
| 99-5789 | BRACKET | 1 | ||
| 16 | 98-2041 | ORIFICE | 1 | |
| 55-3141 | SCREW | 9 | ||
| 55-643 | SCREW | 1 | ||
| 55-411 | FLATWASHER | 10 | ||
| 55-405 | WASHER - dome | 10 | ||
| 99-3086 | NUTSTRIP | 2 |
