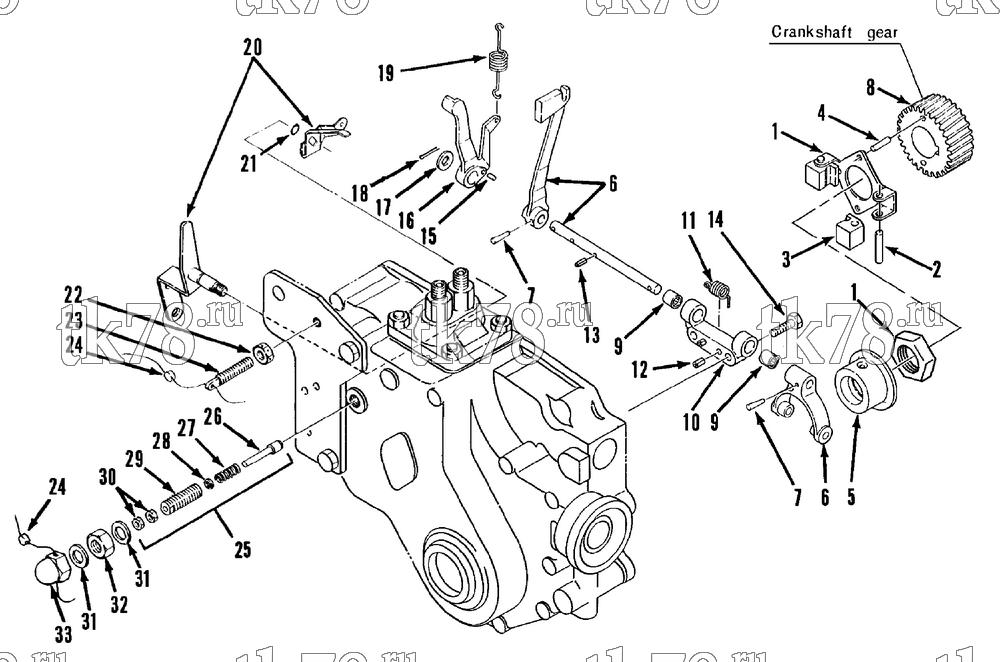

Установкa Thermo King MD-I схема GOVERNOR GROUP (TK 2.35) – 49C11
Обновление от: 11/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 101-266 | SHORT BLOCK - assembly | 1 | ||
| 1 | 11-5057 | SUPPORT & NUT - governor weight | 1 | |
| 2 | 11-5159 | PIN - weight | 2 | |
| 3 | 11-5158 | WEIGHT | 2 | |
| 4 | 11-5036 | PIN - spring | 2 | |
| 5 | 11-5162 | SLEEVE | 1 | |
| 6 | 11-5058 | LEVER - governor (before S/N EK09899) | 1 | |
| 11-5492 | LEVER - governor (S/N EK09899 & after) | 1 | ||
| 7 | 55-4667 | PIN - dowel | 2 | |
| 8 | 11-5032 | GEAR - crankshaft | 1 | |
| 9 | 11-5494 | BEARING - needle (16 mm, engines from S/N KO9869) | 1 | |
| 10 | 11-5161 | BRACKET - lever shaft (12 mm, engines before S/N KO 9869) | 1 | |
| 11-5493 | BRACKET - governor (16 mm, engines from S/N KO9869) | 1 | ||
| 11 | 11-5163 | SPRING - return | 1 | |
| 12 | 55-4688 | PIN - bracket | 1 | |
| 13 | 55-4668 | PIN - spring | 1 | |
| 14 | 55-4637 | BOLT - bracket | 1 | |
| 15 | 55-4674 | PIN - dowel | 1 | |
| 16 | 11-7291 | LEVER - control | 1 | |
| 17 | 55-4607 | FLATWASHER | 1 | |
| 18 | 55-4675 | PIN - cotter | 1 | |
| 19 | 11-5160 | SPRING - regulator | 1 | |
| 20 | 11-7016 | HANDLE | 1 | |
| 21 | 55-4676 | O-RING | 1 | |
| 22 | 55-4673 | NUT | 1 | |
| 23 | 11-5169 | ADJUSTER | 1 | |
| 24 | 11-5170 | SEAL - lead | 1 | |
| 25 | 11-5495 | CONTROLLER - injection | 1 | |
| 26 | NSS | PIN | 1 | |
| 27 | NSS | SPRING | 1 | |
| 28 | NSS | SHIM | 1 | |
| 29 | NSS | BODY - controller | 1 | |
| 30 | NSS | NUT - injector | 2 | |
| 31 | 55-8620 | WASHER - sealing | 2 | |
| 32 | 55-4672 | NUT | 1 | |
| 33 | 55-4670 | NUT - cap | 1 | |
| 30-174 | GASKET SET - overhaul | 1 | ||
|
10-30-174 | Набор прокладок, Yanmar 235, KD/MD/RD-I | 16 910 ₽ |
|
