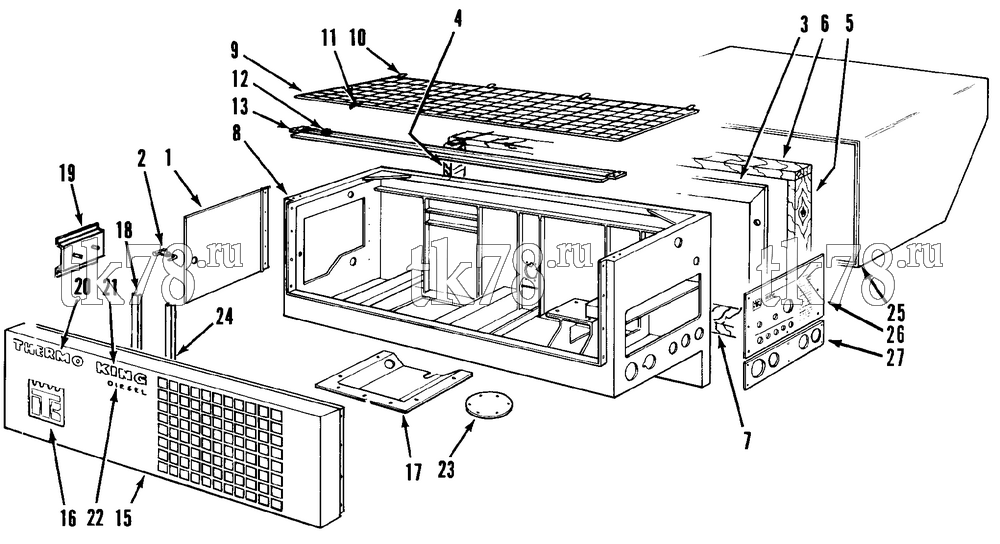

Установкa Thermo King MD-I схема STRUCTURAL COMPONENTS – 36E2
Обновление от: 3/14/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2015 | DOOR - engine | 1 | |
| 55-2828 | SCREW - door | 4 | ||
| 99-3096 | NUTSTRIP | 1 | ||
| 2 | 99-6599 | LATCH - door | 1 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 1 | ||
| 99-3097 | ANGLE - door latch | 1 | ||
| 55-111 | SCREW - angle | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 3 | 33-708 | GASKET - sill | 1 | |
| 4 | 98-1533 | MEMBER - wood (right) | 1 | |
| 5 | 98-1534 | MEMBER - wood (top) | 1 | |
| 6 | 98-1621 | MEMBER - wood (left) | 1 | |
| 7 | 98-1622 | MEMBER - wood (bottom) | 1 | |
| 8 | 98-2419 | FRAME - condenser | 1 | |
| 99-6152 | NAMEPLATE - Belt Tension | 1 | ||
| 9 | 98-1880 | SCREEN - top | 1 | |
| 10 | 99-3128 | HINGE - screen | 4 | |
| 55-157 | SCREW - hinge | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-3371 | NUT - speed | 8 | ||
| 11 | 99-1423 | LATCH - screen | 3 | |
| 55-3654 | SCREEN - latch | 2 | ||
| 55-1510 | SCREW - latch | 4 | ||
| 55-1511 | LOCKWASHER | 4 | ||
| 55-2752 | NUT | 4 | ||
| 12 | 99-3098 | EXTRUSION - vibration (rubber) | 1 | |
| 13 | 98-2530 | CHANNEL - condenser support | 1 | |
| 55-2969 | SCREW - channel | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 14 | Not Used | |||
| 15 | 98-2347 | GRILLE - condenser (1 piece) | 1 | |
| 98-3057 | GRILLE - condenser (2 piece) | 1 | ||
| 98-3064 | DOOR - front | 1 | ||
| 55-101 | SCREW - grille | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-1081 | NUT - speed | 8 | ||
| 16 | 99-6000 | NAMEPLATE - TK | 1 | |
| 99-6001 | NAMEPLATE - SSII | 1 | ||
| 55-3064 | SCREW - nameplate | 4 | ||
| 55-2965 | NUT | 4 | ||
| 17 | 98-2429 | PAN (bottom) | 1 | |
| 55-145 | SCREW - panel | 11 | ||
| 55-366 | LOCKWASHER | 11 | ||
| 55-411 | FLATWASHER | 11 | ||
| 18 | 99-6574 | CHANNEL (11 in lg) | 1 | |
| 55-3018 | SCREW - channel | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 19 | 99-6576 | BRACKET - air cleaner | 1 | |
| 55-291 | NUT - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 20 | 99-5796 | NAMEPLATE - King | 1 | |
| 21 | 99-5796 | NAMEPLATE - King | 1 | |
| 22 | 99-5797 | NAMEPLATE - diesel | 1 | |
| 23 | 99-5799 | COVER - accumulator tank | 1 | |
| 24 | 99-6575 | CHANNEL (7 in lg) | 1 | |
| 25 | NSS | EVAPORATOR (see 32G1) | 1 | |
| 26 | NSS | PANEL - control (see 49D11 & 49D13) | 1 | |
| 27 | NSS | PANEL - gauge (see 49E4) | 1 |
