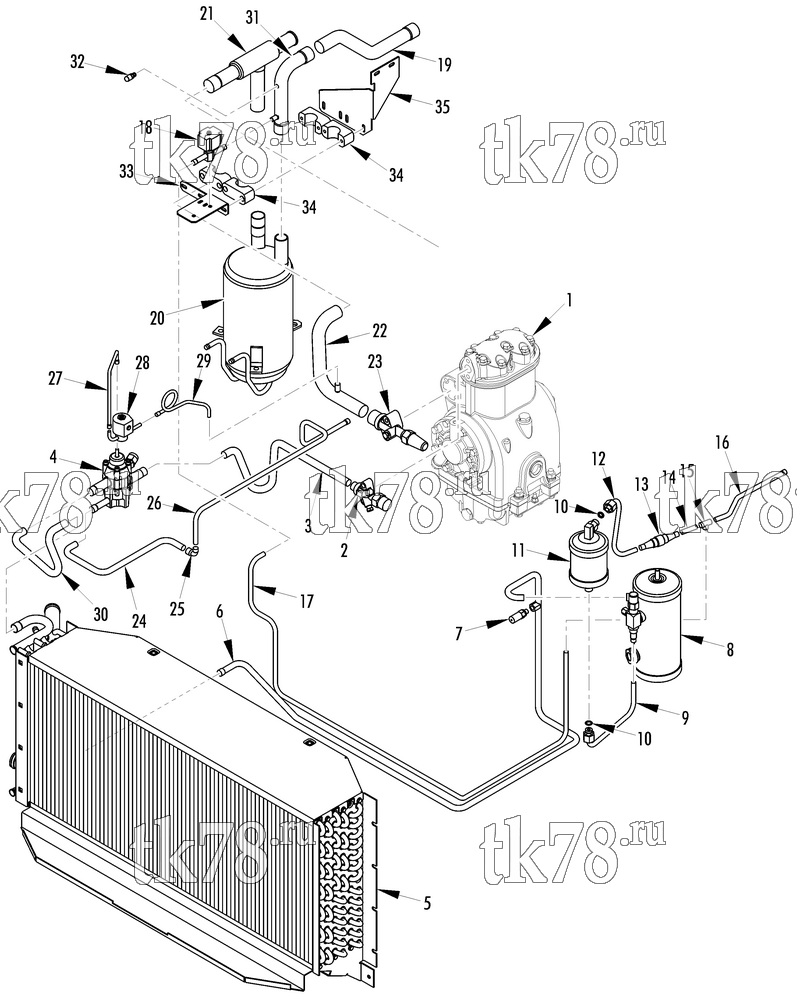

Установкa Thermo King MD-200 w/TK 3.74 Engine схема REFRIGERATION COMPONENTS, CONDENSER – 185H8
Обновление от: 1/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1072 | COMPRESSOR - X214 (deep sump, see 185H5) | 1 | |
| 2 | 22-188 | VALVE - discharge (see 185H9) | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 3 | 61-4943 | TUBE - valve to 3-way | 1 | |
| 4 | 61-1236 | VALVE - 3-way (see 101B6) | 1 | |
| 55-3618 | SCREW - 3-way | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 67-1969 | COIL - condenser (MD-300, see 185H4) | 1 | |
| 67-1968 | COIL - condenser (MD-200, see 185H4) | 1 | ||
| 99-9948 | NAMEPLATE - pressure vessel (EMEIA) | 1 | ||
| 6 | 61-2263 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 7 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 67-1180 | TANK - receiver (see 156B6) | 1 | |
| 91-7419 | NAMEPLATE - pressure vessel (EMEIA) | 1 | ||
| 9 | 61-2262 | TUBE - receiver to dehydrator | 1 | |
| 55-8267 | NUT - o-ring seal | 1 | ||
| 55-8268 | SHOULDER - o-ring seal | 1 | ||
| 10 | 33-1015 | O-RING | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 11 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 99-4326 | PAD - dehydrator | 1 | ||
| 91-7602 | CLAMP - dehydrator | 1 | ||
| 12 | 66-6057 | TUBE - dehydrator to valve | 1 | |
| 55-8267 | NUT - o-ring seal | 1 | ||
| 55-8268 | SHOULDER - o-ring seal | 1 | ||
| 13 | 66-5763 | VALVE - check | 1 | |
| 14 | 66-6135 | TUBE - valve to tee | 1 | |
| 15 | 55-3251 | TEE | 1 | |
| 16 | 66-6136 | TUBE - tee to evaporator | 1 | |
| 17 | 66-5346 | TUBE - tee to solenoid | 1 | |
| 18 | 61-283 | SOLENOID - thermax (see 125C10) | 1 | |
| 19 | 66-4624 | TUBE - evaporator to accumulator | 1 | |
| 20 | 67-1947 | TANK - accumulator | 1 | |
| 21 | 61-2237 | VALVE - pressure regulator | 1 | |
| 22 | 61-2264 | TUBE - cpr to compressor | 1 | |
| 23 | 66-1916 | VALVE - suction (see 185H9) | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 24 | 61-2268 | TUBE - 3-way to elbow | 1 | |
| 25 | 55-4142 | ELBOW | 1 | |
| 26 | 61-2269 | TUBE - elbow to evaporator | 1 | |
| 27 | 61-2266 | TUBE - 3-way to solenoid | 1 | |
| 28 | 66-8560 | SOLENOID - pilot (12V) | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1525 | COIL - valve (12V) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - coil | 1 | ||
| 29 | 61-2267 | TUBE - solenoid to suction tube | 1 | |
| 30 | 61-2265 | TUBE - 3-way to coil | 1 | |
| 66-6048 | TUBE - suction to accumulator | 1 | ||
| 32 | 11-5513 | VALVE (Schrader) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 33 | 92-7359 | BRACKET - solenoid | 1 | |
| 34 | 51-627 | CLAMP - tube | 4 | |
| 55-3344 | SCREW | 4 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 35 | 92-3625 | BRACKET - accumulator tank | 1 |
