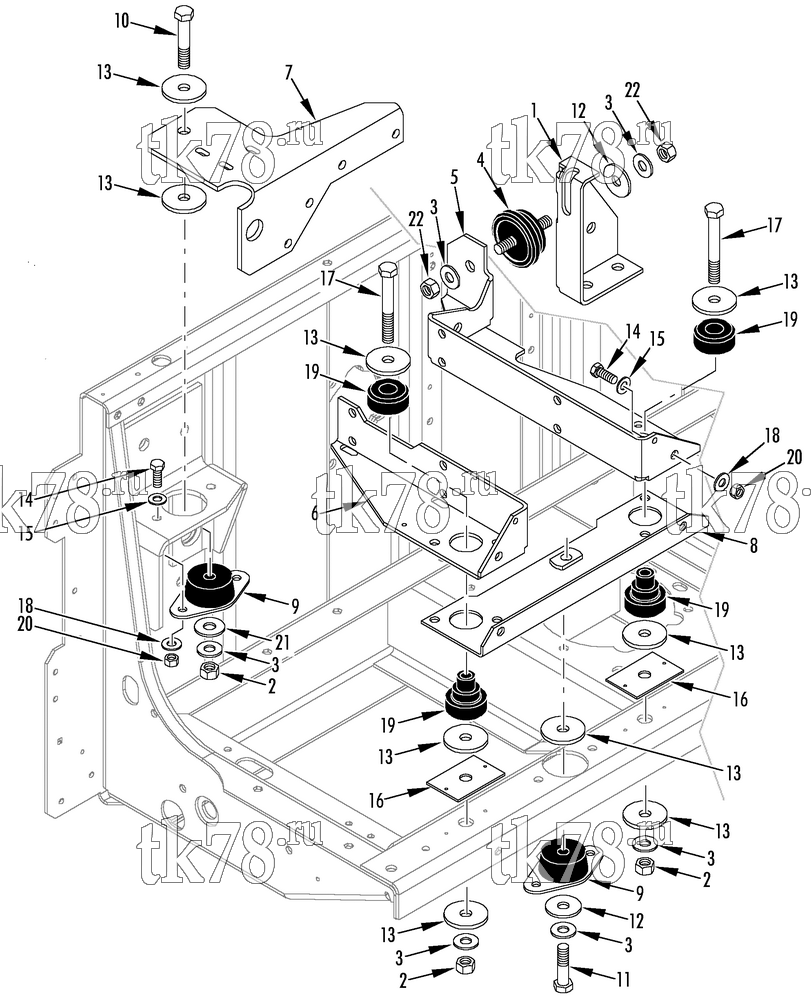

Установкa Thermo King MD-200 w/TK 3.74 Engine схема ENGINE MOUNTING GROUP – 185H6
Обновление от: 7/16/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9207 | BRACKET - snubber | 1 | |
| 55-3486 | SCREW - bracket | 2 | ||
| 55-7123 | WASHER - belleville | 4 | ||
| 2 | 55-2166 | NUT | 5 | |
| 3 | 55-7123 | WASHER - belleville | 1 | |
| 4 | 91-3908 | MOUNT - vibration | 1 | |
|
10-91-3908 | Подушка, Yanmar 374 / 395, KD/MD/RD/TD-II / MD/TS-Series | 2 370 ₽ |
|
| 5 | 91-3202 | MOUNT - engine (roadside) | 1 | |
| 6 | 92-3252 | MOUNT - engine (curbside) | 1 | |
| 7 | 91-9467 | MOUNT - engine (upper) | 1 | |
| 55-5957 | SCREW - mount (soc hd, 10 x 1.50, 25 mm lg) | 4 | ||
| 55-6216 | SCREW - mount (soc hd, 10 x 1.50, 20 mm lg) | 6 | ||
| 55-5695 | SCREW - mount (hex hd, 10 x 1.25, 20 mm lg) | 2 | ||
| 55-7122 | WASHER - belleville | 18 | ||
| 8 | 91-3203 | MOUNT - engine (front) | 1 | |
| 55-3048 | SCREW - mount | 6 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-7122 | WASHER - belleville | 6 | ||
| 55-4955 | NUT | 6 | ||
| 9 | 91-2281 | MOUNT - vibration | 2 | |
|
10-91-2281 | Подушка, Yanmar 374 / 395, KD/MD/RD/TD-II / MD/TS-Series | 1 240 ₽ |
|
| 10 | 55-2914 | SCREW - engine | 1 | |
| 11 | 55-2747 | SCREW - engine | 1 | |
| 12 | 55-7584 | WASHER - special | 3 | |
| 13 | 55-5871 | WASHER - special | 8 | |
| 14 | 55-3048 | SCREW - mount | 10 | |
| 15 | 55-2641 | FLATWASHER | 10 | |
| 16 | 99-9449 | MOUNT - wear plate | 2 | |
| 55-3044 | RIVET - wear plate | 4 | ||
| 17 | 55-5888 | SCREW - engine | 2 | |
| 18 | 55-7122 | WASHER - belleville | 10 | |
| 19 | 99-4820 | MOUNT - vibration (engine, set of two) | 2 | |
|
10-99-4820 | Опора двигателя Yanmar 374 / 395 / 482 / 486 | 980 ₽ |
|
| 20 | 55-2640 | NUT | 10 | |
| 203-400 | SEALER - thread (blue) | A/R | ||
| 21 | 55-377 | FLATWASHER | 1 | |
| 22 | 55-314 | NUT | 2 |
